Summary of Contents for Emerson EPB-4000

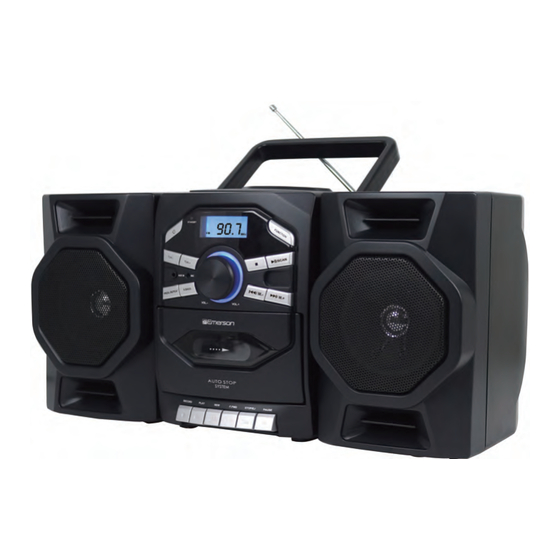

- Page 1 EPB-4000 USER MANUAL Please read carefully before use and keep for future reference.
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions. The safety and operating instructions should be retained for future reference. 3. Heed all warnings. All warnings on the appliance and in the operating instructions should be adhered to. -
Page 3: Package Contents
21. Store your CD or other devices in a cool area to avoid damage from heat. • • • • PACKAGE CONTENTS Portable CD Player ..1 Piece ..Power Adapter ..1 Piece ..User Manual ....1 Piece DEVICE SPECIFICATIONS DC IN 12V 1.5A Power Source... -
Page 4: Device Features
DEVICE FEATURES Top View Front View... - Page 5 Rear View 1. FM ANTENNA 12. CASSETTE COMPARTMENT 23. FUNCTION BUTTON 2. HANDLE 13. CASSETTE RECORD KEY 24. LCD DISPLAY 3. CD COMPARTMENT 14. CASSETTE PLAY KEY 25. VOLUME CONTROL BUTTON 4. CD DOOR 15. CASSETTE REWIND KEY 26. BUILT-IN MICROPHONE 5.
-
Page 6: About The Speakers
ABOUT THE SPEAKERS The speakers can be installed a�ached to or detached from the main unit. • A�ach the speakers when you want to travel with the unit. • Detach the speakers and posi�on them as far away from each other as possible in order to increase stereo separa�on. - Page 7 ABOUT THE SPEAKERS Detaching the Speakers 1. Press the retaining tab down towards the speaker. 2. Slide the speaker up and then away from the main unit. Connec�ng the Speakers Plug the speaker cables running from the back of each speaker to the le� and right speaker inputs found on the back of the unit.
-
Page 8: Connecting Power
CONNECTING POWER AC POWER • Connect the AC/DC adapter to the device and into an AC wall outlet. NOTE: Connecting to AC power automatically disengages the battery power source. BATTERY POWER 1. Open the door to the battery compartment. 2. Install a quantity of eight (8) UM-1/D size batteries (not included) into the compartment. -
Page 9: Operating Modes
OPERATING MODES USING THE CASSETTE PLAYER • RECORD - Press to record from the radio or CD/USB player. • PLAY - Press to play cassettes. • REWIND - From stop mode, press to rewind the tape toward the beginning. • F.FWD - From stop mode, press to advance the tape toward the end. •... - Page 10 RECORDING AUDIO FROM THE RADIO 1. Load a blank tape into the tape compartment and close the door. 2. Select the AM/FM functon mode. Use the Tuning butons to locate a staton. 3. Press the RECORD button to begin recording. Note: The RECORD button and PLAY button are depressed simultaneously.
- Page 11 PROTECTING THE RECORDING Normally, anything recorded on the tape is automatically erased when a new recording is made. It is possible to protect your recording from accidental erasure by removing the tabs found on the rear of the cassette. • When the cassette is held with the recorded side upper-most and the exposed tape facing the front, the protective tab will be found on the left rear of the cassette.
-
Page 12: Loading A Disc
CD OPERATION CD TYPES This device can only play digital audio CDs, finalized digital audio CD-Recordable (CD-R) discs, finalized digital audio CD-Rewritable (CD-RW) discs, and CD-DA format digital audio CD/CD-R/CD-RW discs. LOADING A DISC 1. Select CD Mode by pressing the FUNCTION button 2. -
Page 13: Program Tracks
PROGRAM TRACKS Programming tracks of disc are possible when playback is stopped. Up to CD 20 tracks can be stored in the memory in any order. PROG./REPEAT button 1. In stop mode, press the . The P01 will flash on the display. 2. -
Page 15: Auxiliary Input Operation
RADIO AUTO SCAN (SEARCH) 1. Press and hold the /SCAN button. The device will automatically scan the radio until finding a strong signal. The device will start to broadcast from the P01 after searching is finished. 2. Use the /MEM- or /MEM+ buttons to choose between the preset stations. RADIO STATION MEMORY OPERATION You can store up to 20 FM and 20 AM radio statons in memory for your preference. - Page 16 Tel: (866 )-411-6292...
- Page 32 Tel: (866 )-411-6292...
Need help?
Do you have a question about the EPB-4000 and is the answer not in the manual?
Questions and answers
I just received my emerson EPB-4000. It will not power on. The standby light is on but it will not power on.
The Emerson EPB-4000 may not power on despite the standby light being on due to several possible reasons:
1. Power Source Issue: If using battery power, ensure the batteries are installed correctly with the correct polarity and are not depleted. If using AC power, confirm the adapter is securely connected to both the device and the wall outlet.
2. Function or Mode Selection: Ensure the correct mode (CD, cassette, radio, etc.) is selected using the FUNCTION button.
3. Faulty Connection: Check if the speaker cables and other connections are properly secured.
4. Internal Malfunction: If none of the above resolve the issue, there may be an internal fault requiring professional servicing.
If the standby light is on but the device does not respond, try unplugging it for a few minutes and then reconnecting it.
This answer is automatically generated
Does this unit have a audio output for headphones?
