Seen AIR GRADIENT PM 2.5 SENSOR Quick Start Manual

MONITOR AIR QUALITY
WITH
AIR GRADIENT
PM 2.5 SENSOR
Pre-soldered
outdoor monitor kit.

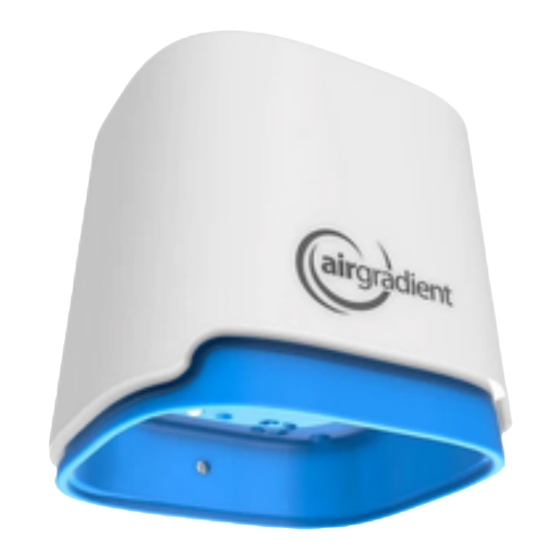

The AirGradient Open Air outdoor
monitor measures PM2.5, temperature,
and humidity.
The measurements can be sent to a
server (e.g., AirGradient panel and map
or another cloud server) for data
logging.
Low-cost and accessible - The monitor is
entirely hardware and open-source.
PM2.5 = Particulate Matter of size
2.5 micrometers.
Sources - construction, wildfires,
wood burning, and agriculture.
Assembling
BACK VIEW
1. Connect the PM cables by inserting them
into each sensor.
2. Pass them through the slots on the board
and connect them securely. Ensure they
are fully plugged in at both ends.
Repeat for the second sensor.
Real-Time Air
Advisory Network
(RAAN)
These instructions cover the pre-soldered version of
BACK VIEW
should not be squeezed
by the plastic parts of
Check inside the white
casing for any areas
that may press on the
3. When everything
is aligned, carefully
slide the casing
over the assembly.
Do not force it if
the cables are
tensed.
Stay informed in
real-time about the
air quality in the
valley.
the outdoor monitor kit, version 1.1.
*Note: The cables
slots on both parts are
the casing.
aligned. Then, use the
4x screws to close the
cables.
video del montaje por
Air Gradient
(Inglés/English)
SJVAir
BACK VIEW
4. Verify that the
casing.
