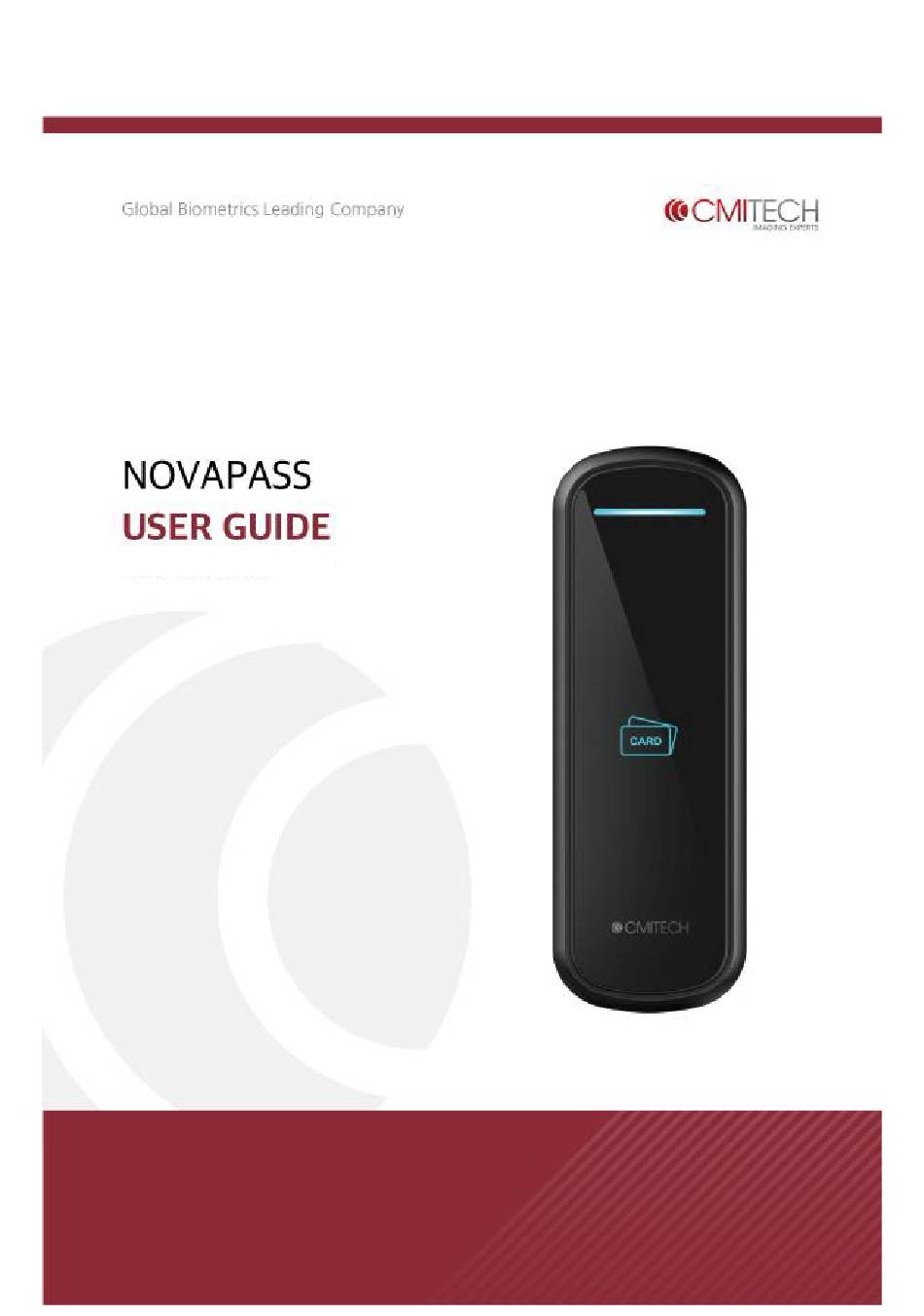

CMITECH NOVAPASS User Manual

Rf card reader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOVAPASS and is the answer not in the manual?

Questions and answers

Summary of Contents for CMITECH NOVAPASS

  • Page 2 About This Manual NOVAPASS is a RF card reader that provides high performance in an embedded system. This manual contains the descriptions and operational instructions for NOVAPASS. It is intended and written for system administrators who are in charge of overall operation. We recommend you to familiarize yourself with this manual in order to make use of the product correctly and effectively.
  • Page 3 Removing the cover may expose you to electric shock or other hazards, which may void the warranty if the product is damaged. If the product does not work properly, contact your dealer or customer service. Caution Environment NovaPass User Manual, 0.1 Page www.cmi-tech.com Nov. 2021 iii / 29...
  • Page 4 It may cause product failure or fire. Table of Contents About This Manual..........................ii Revision History ..........................ii Conventions in This Manual ......................ii www.cmi-tech.com Page NovaPass User Manual, 0.1 (c) 2021, all rights iv / 29 Nov. 2021 reserved...

  • Page 5: Table Of Contents

    Safety Instructions ..........................iii 1. Introduction to NOVAPASS ......................1 1.1. Features ............................1 1.2. Components ..........................2 1.3. Parts and Controls ........................4 2. Installing NOVAPASS ......................... 8 2.1. Installation Requirements ..................... 8 2.1.1. Environmental Requirements..................8 2.1.2. Electrical Requirements ....................9 2.1.3.

  • Page 6: Introduction To Novapass

    1. Introduction to NOVAPASS NOVAPASS is a RF card reader that provides a card recognition in an embedded system with real-time subject finding and local authentication for high throughput access control and time & attendance applications. 1.1. Features The key features of NOVAPASS are shown in the following table:...
  • Page 7 LED R/F Card Authentication Unit Read R/F cards for entering and exiting Fixing Screw A screw for fixing the terminal. www.cmi-tech.com Page NovaPass User Manual, 0.1 (c) 2020, all rights 7 / 29 Nov. 2021 reserved...
  • Page 8 Initializes all settings and user information Factory Reset Switch (Press) When the terminal detaches from the Magnetic Tamper Sensor mounting plate, it sounds an alarm NovaPass User Manual, 0.1 Page www.cmi-tech.com Nov. 2021 8 / 29 (c) 2020, all rights...

  • Page 9: Installing Novapass

    2.1. Installation Requirements Before installation, make sure that the following requirements are met. 2.1.1. Environmental Requirements NOVAPASS is designed and intended for both in/outdoor use. If it is required to use the device in extreme environments, contact local sales or service@cmi-tech.com.

  • Page 10: Electrical Requirements

    225m 898m 0.053 113m 283m 1,132m 0.042 143m 357m 1,429m 0.0333 180m 450m 1,802m - Green area means within the range of recommended requirements. NovaPass User Manual, 0.1 Page www.cmi-tech.com Nov. 2021 10 / 29 (c) 2020, all rights reserved...

  • Page 11: Tool Requirements

    For measuring the installation Tape ruler General height Cutting plier Electric drill With a drill bit and anchor bolts Concrete wall mount Marker Hammer www.cmi-tech.com Page NovaPass User Manual, 0.1 (c) 2020, all rights 11 / 29 Nov. 2021 reserved...

  • Page 12: Installation Procedure

    2.2.1. Mounting Device (Wall Mount) You can install the device onto a wall directly by using the mounting plate. 1. Remove the screw that attaches NOVAPASS to the mounting plate and disassemble the plate. A screw to fix mounting plate Keep the screw because it will be used to attach them again.
  • Page 13 (See Connecting Cables for more information) 4. Put the device onto the installed plate, slide it downward, and attach them with the screw. (M3 x 6) www.cmi-tech.com Page NovaPass User Manual, 0.1 (c) 2020, all rights 13 / 29 Nov. 2021 reserved...

  • Page 14: Mounting Device (Gang Box Mount)

    You can also install the device on a gang box (outlet box) by using the mounting plate. 1. Remove the screw that attaches NOVAPASS to the mounting plate and disassemble them. ※ Keep the screw because it will be used to attache them again.

  • Page 15: Connecting Cables

    2.2.3. Connecting Cables Power Connection Power Supply Network Connection RJ-45 connector for 10/100Base-T ethernet communication, minimum CAT5 cable. www.cmi-tech.com Page NovaPass User Manual, 0.1 (c) 2020, all rights 15 / 29 Nov. 2021 reserved...
  • Page 16 There are two types of dead-bolt door lock connections and configuration supported – fail-safe and fail-secure. • Use different power supplies for NOVAPASS and the door lock. • Install the diode at both ends of the circuit as shown in the...
  • Page 17 Relay Connection – Automatic Door RELAY Automatic Door Door Controller Pin No Name Normal Open (NO) RELAY PRESS Common (COM) Presence Normal Close (NC) Detector TO EXIT www.cmi-tech.com Page NovaPass User Manual, 0.1 (c) 2020, all rights 17 / 29 Nov. 2021 reserved...
  • Page 18 DC +12V – +30V GPI Connection 출입문 버튼 출입문 화재 감지기 센서 PRESS TO EXIT Pin No Name GPI 0 GPI 1 GPI 2 Ground (GND) NovaPass User Manual, 0.1 Page www.cmi-tech.com Nov. 2021 18 / 29 (c) 2020, all rights reserved...
  • Page 19 Wiegand Connection Wiegand Pin No Name DATA 0 Wiegand DATA 1 위겐 드 Ground (GND) ACU (OUT) Wiegand Reader (IN) DATA DATA www.cmi-tech.com Page NovaPass User Manual, 0.1 (c) 2020, all rights 19 / 29 Nov. 2021 reserved...

  • Page 20: Using Novapass

    4. Select Card in Enroll and enter the card number. 5. Select Save to complete enrollment. 3.2. Authentication NOVAPASS recognizes by holding a R/F card close to 3cm away and distinguishes by displaying the result through the front LED and notification sound according to the authentication result.

  • Page 21: Product Specifications

    4. Product Specifications 4.1. Mechanical Specifications 4.1.1. Dimensions (unit: mm) www.cmi-tech.com Page NovaPass User Manual, 0.1 (c) 2020, all rights 21 / 29 Nov. 2021 reserved...

  • Page 22: Key Technical Specifications

    13.56MHz ISO/IEC 14443 Standard, MiFare, RF Card Reader DesFire and FeliCa IP65 RJ45 (LAN Connection), Wiegand IN, GPIO x 3, External Connection RS485, Dry Contact Relay NovaPass User Manual, 0.1 Page www.cmi-tech.com Nov. 2021 22 / 29 (c) 2020, all rights reserved...

  • Page 23: Cables And Connectors

    Green WIE D1 White Black RS485 D- Gray RS485 D+ Yellow Black GPI 1 Orange GPI 2 Yellow GPI 3 Green PWR GND Black www.cmi-tech.com Page NovaPass User Manual, 0.1 (c) 2020, all rights 23 / 29 Nov. 2021 reserved...

  • Page 25: Environmental Specifications

    CMID Manager Connection Fail Flashing yellow color Cross flashing red & Tamper Switch On blue color Enrollment Mode On White color Normal Operation Blue color Page www.cmi-tech.com NovaPass User Manual, 0.1 (c) 2020, all rights 23 / 29 Nov. 2021 reserved...

  • Page 26: Appendix B: Regulation

    • Ask assistance from a dealer or a radio/TV technician. Any changes or modifications to this device, not approved by CMITECH, could void the electromagnetic compatibility (EMC) and radio compliance, in addition, it voids the user’s authority to operate the device.

  • Page 27: Appendix C: Contact

    Appendix C: Contact CMITECH COMPANY, LTD. 5F, 38, Burim-ro 170beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Republic of Korea Tel: +82-70-8633-8278 이메일: sales@cmi-tech.com www.cmi-tech.com Page NovaPass User Manual, 0.1 (c) 2020, all rights 25 / 29 Nov. 2021 reserved...
