Emerson EPC-1001 User Manual

Emerson EPC-1001 User Manual

Portable cassette player with am/fm radio & bluetooth out
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PORTABLE CASSSETTE PLAYER
WITH AM/FM RADIO &
BLUETOOTH® OUT
EPC-1001
USER MANUAL
Please read carefully before use and keep for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPC-1001 and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson EPC-1001

Summary of Contents for Emerson EPC-1001

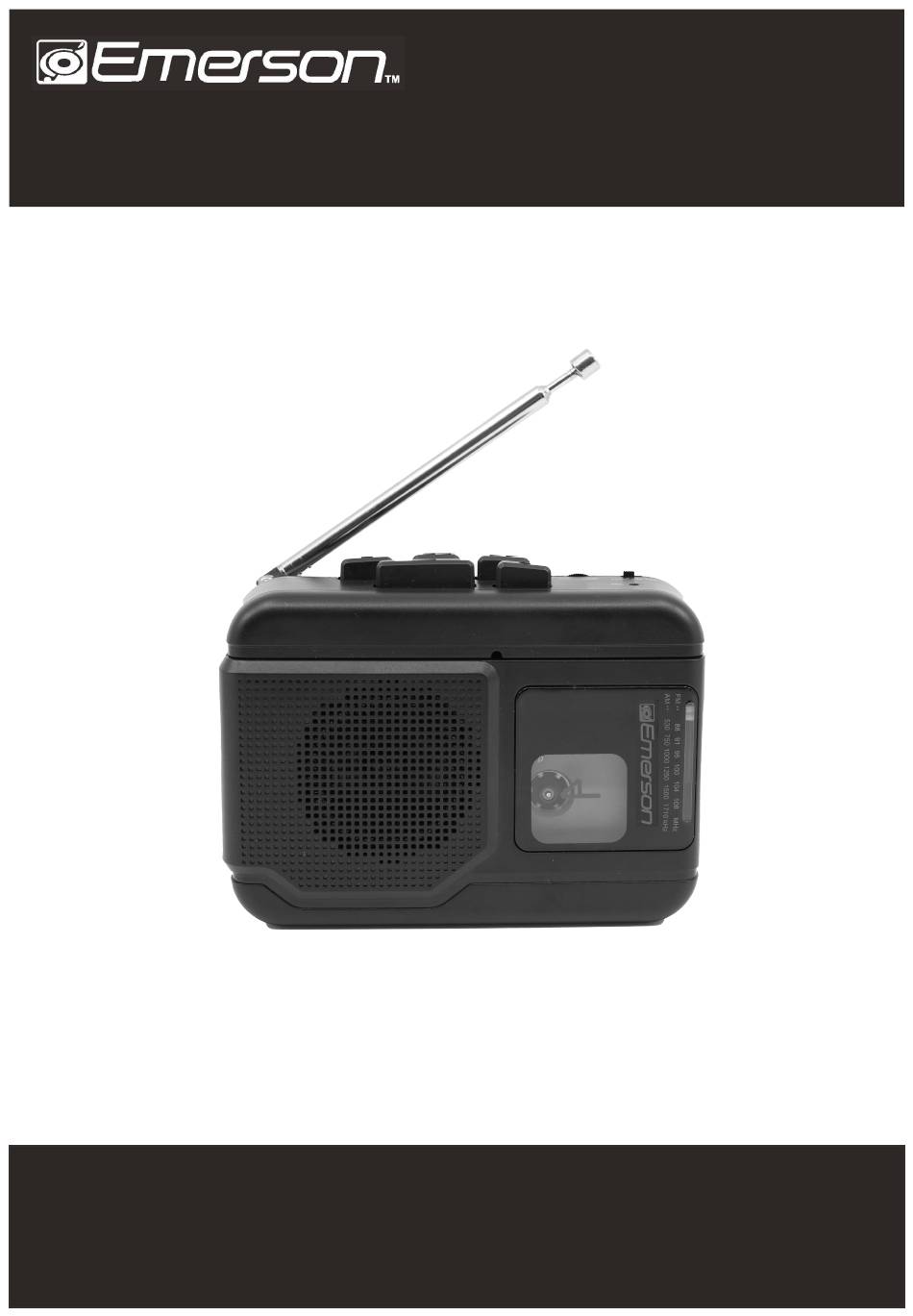

  • Page 1 PORTABLE CASSSETTE PLAYER WITH AM/FM RADIO & BLUETOOTH® OUT EPC-1001 USER MANUAL Please read carefully before use and keep for future reference.

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions. The safety and operating instructions should be retained for future reference. 3. Heed all warnings. All warnings on the appliance and in the operating instructions should be adhered to.

  • Page 3: Package Contents

    • Do not mix battery types, e.g. Alkaline with zinc carbonate. • When inserting new batteries, replace all batteries at the same time. PACKAGE CONTENTS Headphones ....1 Piece EPC-1001 ....1 Piece USB Power Cable ..1 Piece User Manual ....1 Piece DEVICE SPECIFICATIONS...

  • Page 4: Device Controls

    DEVICE CONTROLS 1. CASSETTE DOOR 2. BUILT-IN SPEAKER 3. AM/FM DIAL SCALE 4. TELESCOPIC ANTENNA 5. DETACHABLE BELT-CLIP 6. BATTERY COMPARTMENT 7. STEREO HEADPHONE JACK 8. LINE-OUT JACK 9. TUNING CONTROL 10. MICROPHONE JACK 11. DC IN JACK 12. STOP BUTTON 13.

  • Page 5: Connecting Power

    CONNECTING POWER DC INPUT - USB CABLE (Included) 1. Connect the player with USB Cable (Included) 2. Connect the USB Cable to USB Wall Adapter (Not Included). Please make sure it is at least 5V with 600mA. 3. Connect the USB Wall Adapter (Not Included) to Wall Outlet DC INPUT - AC ADAPTOR (Adaptor not included) •...

  • Page 6: Operating Modes

    USING HEADPHONES • For private listening, connect a 3.5mm headphone (included) to the Headphone Input Port. Note: the speaker will be automatically disabled. • CAUTION: Listening at high volumes can cause hearing loss. OPERATING MODES USING THE CASSETTE PLAYER • RECORD - Press to record from the radio, microphone or external microphone.
  • Page 7 AUTOMATIC STOP FEATURE When the cassette deck is operating in play or record mode and the end of the tape is reached, the PLAY BUTTON (#13) will automatically release to stop the cassette. RECORDING AUDIO RECORDABLE CASSETTE TYPES Use only good quality cassettes (IEC TYPE 1) for making recordings. The device may be used to replay other types of cassettes, but it is unable to properly record on other types of cassettes.
  • Page 8 RECORDING AUDIO FROM THE RADIO 1. Set the FUNCTION SELECTOR (#19) to AM or FM and tune to the station you want to record using the TUNING CONTROL (#9). 2. Press the RECORD BUTTON (#16) and PLAY BUTTON (#13) down at the same time and the unit will start recording from the radio.
  • Page 9 CASSETTE TAPE OPERATING TIPS 1. High-quality tapes are recommended to obtain maximum-quality reproduction from recordings. 2. Tapes with a playing time of 120 minutes (C-120) are not recommended because they contain thinner and longer tape that has a greater chance to malfunction and jam, which may damage the cassette mechanism.
  • Page 10 BLUETOOTH® OPERATION (CASSETTE PLAYER ONLY) The EPC-1001 features Bluetooth® wireless output for the cassette player only, so it can be connected to Bluetooth® compatible headphones (not included) and Bluetooth® speakers (not included). 1. Slide the BLUETOOTH® ON/OFF SWITCH (#20) located on the back of the EPC-1001 to "ON"...
  • Page 11 RADIO OPERATION 1. Set the FUNCTION SELECTOR (#19) to the AM or FM position. 2. Rotate the TUNING CONTROL (#9) to select the desired radio station. 3. Adjust the VOLUME CONTROL (#17) to obtain the desired sound level from the built-in speaker. 4.

  • Page 12: Troubleshooting

    TROUBLESHOOTING SYMPTOM POSSIBLE CAUSES POSSIBLE REMEDIES Replace with all new Depleted battery power. No sound from batteries. the device. Volume set to minimum. Increase the volume. Sound is Volume control is set to distorted at high Lower the volume. maximum. volumes.

  • Page 13: Fcc Notice

    If you have problems with your device, please consult the instructions in this manual. Please also visit us on the web at www.emersonaudio.com to get up to the minute news, alerts, and documentation for your device. For additional assistance, please contact Emerson Technical support. EMERSON Technical Support 2320 East 49th Street...
