Outdoor Interiors 71220 Assembly Instructions

PARTS LIST
A
Back Frame x 1 piece
B
Leg Right x 1 piece
C
Leg Left x 1 piece
D
Seat Frame x 1 piece
IMPORTANT NOTE:
- Each armrest + leg unit requires assembly for the
purpose of shipping ease and to prevent damage.
Each armrest + leg unit is identified under the
seat frame prior to assembly. With A, B, C... match
leg or arm to chair or sofa for easy assembly.

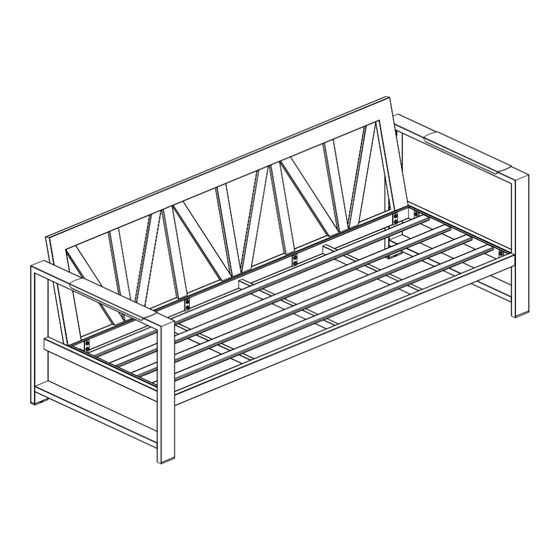

ASSEMBLY INSTRUCTIONS FOR ITEM # 71220
(Sofa)
HARDWARE LIST
1
2
3
4
Page 1 of 3
STOP! PLEASE READ FIRST
Thank you for purchasing this item from Outdoor
Interiors. Please verify all the hardware and components
are included as you unpack the carton. Place the items in
a safe area to avoid loss and damaging contents. Use a
soft area or use the empty box to assemble the set.
ASSEMBLY TIPS: Assemble upside down with the sofa
facing down. Never over-tighten bolts. Please visit our
website if you have any questions visit
www.outdoorinteriors.com
Please review the care card for how to care &
maintain your new furniture.
02 pieces
F-Bolt 8.00x20.00 mm
16 pieces
F-Bolt 8.00x30.00 mm
08 pieces
Pat l 50x25x3 mm
Allen key
1 piece
4.00x98.00 mm
