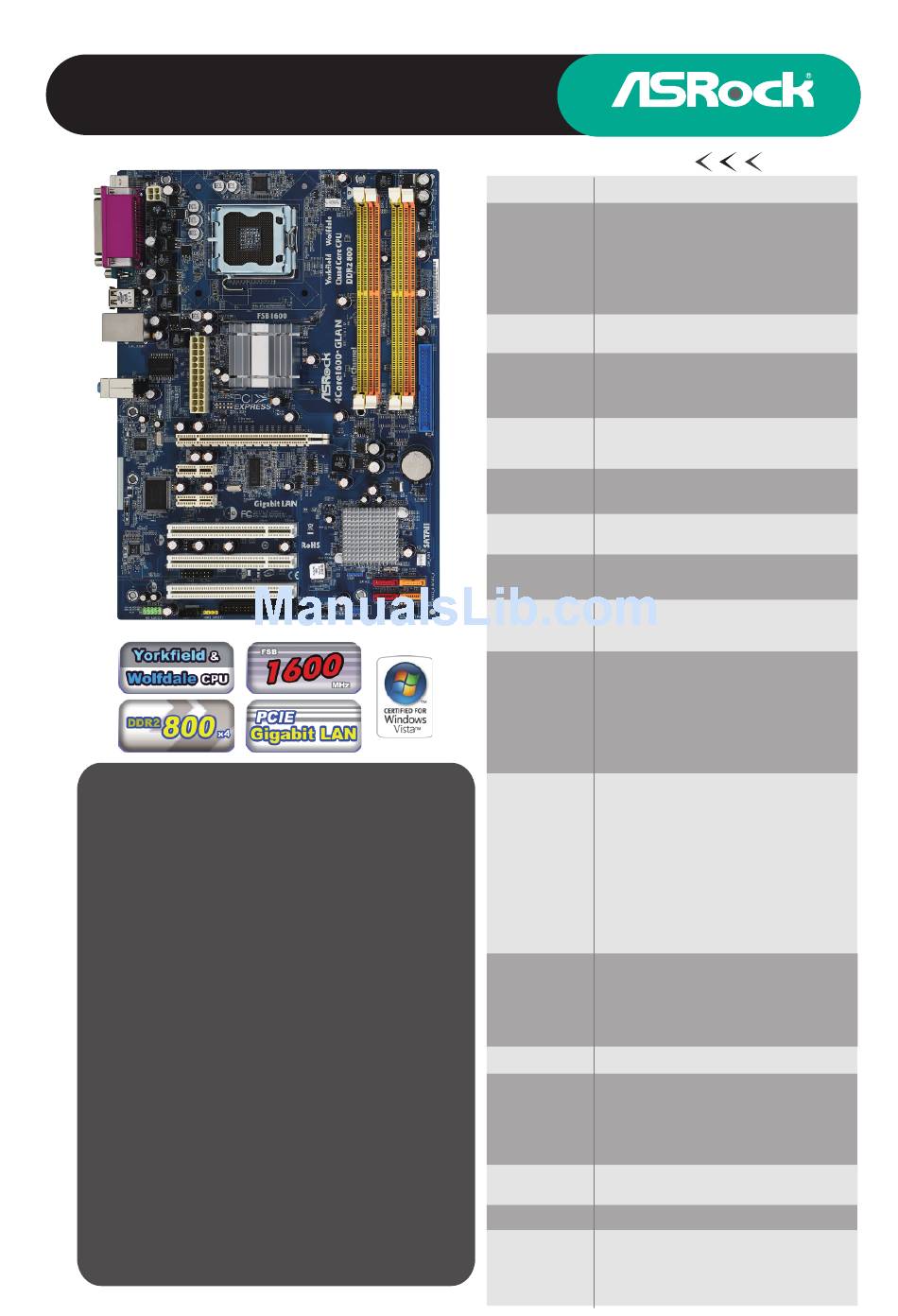

ASROCK 4CORE1600-GLAN Specification

4Core1600-GLAN
Intel ® P31/G31 + ICH7 Chipsets
Product Brief
- LGA 775 for Intel Core 2 Extreme / Core
® TM
Pentium Dual Core / Celeron
®
Yorkfield and Dual Core Wolfdale
- Compatible with all FSB1600/1333/1066/800MHz CPUs
- Dual Channel DDR2 800/667 (4 x DIMM slots) with max. capacity up
to 4GB
- 1 x PCI Express x16 slot
- Supports PCIE Gigabit LAN
- 4 x SATAII 3.0 Gb/s connectors
- HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA
card, allows the system to connect HDMI Digital TV/projector/LCD
devices
- 1 x WiFi/E header
- Windows Vista Premium 2007 Logo Ready
® TM
The specification is subject to change without notice. The brand and product names are trademarks of their
respective companies. Any configuration other than original product specification is not guaranteed.
2 Quad / Core
TM TM
, supporting Penryn Quad Core
®
processors
10/100/1000 Mb/s
Detail Specification
Platform - ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm
CPU
- LGA 775 for Intel
- Compatible with all FSB1600/1333/1066/800MHz CPUs
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU
Chipset
- Northbridge: Intel
- Southbridge: Intel
- Dual Channel DDR2 memory technology
Memory
- 4 x DDR2 DIMM slots
- Supports DDR2 800/667 non-ECC, un-buffered memory
- Max. capacity of system memory: 4GB
Hybrid Booster - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- 1 x PCI Express x16 slot

Expansion Slot

- 2 x PCI Express x1 slots
- 3 x PCI slots
Graphics
Audio
- 5.1 CH Windows
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B/RTL8111C
- Supports Wake-On-LAN
Rear Panel I/O ASRock 6CH I/O Pro
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Line in / Front Speaker / Microphone
Connector
- 4 x Serial ATAII 3.0 Gb/s connectors (No support for RAID
- 1 x ATA100 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
2 Duo /
- 1 x DeskExpress Hot Plug Detection header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 3 USB 2.0 ports)
- 1 x WiFi/E header

BIOS Feature

- 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft
Certifications
- FCC, CE, WHQL
- Quick Installation Guide, Support CD, I/O Shield
Accessories
- Floppy/ATA 100 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x HDMI_SPDIF cable (optional)
