- Page 1 ☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs Operating, maintenance and warranty instructions Unifix manual Date of commissioning: ________________ Device n°: ________________ UDXUFIVR30N000-EN...
- Page 2 Unifix manual for people upto a maximum weight of 180kgs Dear Client, We would like to thank you for trusting PMR range of products of Hexagone Manufacture. Unifix is used for providing additional assistance to people with reduced mobility in the pool.
- Page 3 ☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs Security ➢ Read and follow all instructions. Security can only be ensured if the Unifix is installed and working properly - according to these instructions. ➢ Do not leave within the reach of a child. The child must be supervised by a responsible adult. ➢...
- Page 4 I undersigned Yoann CHOURAQUI, CEO of the company: HEXAGONE Based at : 1 à 5 Rue Michel Carré 95100 ARGENTEUIL FRANCE Declare that the material XUFIVR30N000 Designation: Unifix Serial Number: UFIV-____ complies with the provisions of the directive 2006 42 Argenteuil, 1 July 2019 Y.CHOURAQUI...
-
Page 5: Table Of Contents
☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs Contents OVERVIEW OF THE PRODUCT ......................... 6 EXPLODED VIEW AND NOMENCLATURES .................... 7 A. General view ............................. 7 B. BOM ................................8 C. Overall dimensions ..........................9 INSTALLATION ............................10 A. -
Page 6: Overview Of The Product
In case of damage caused during transport or the lack of one of the parts, contact Hexagone Manufacture immediately! In case of inability to contact Hexagone Manufacture, within three days of receipt, concerning damaged or missing parts, the deadline for receipt of new parts may be affected. Careful installation must be respected - Incorrect installation will affect the safety of users and will void the warranty. -
Page 7: Exploded View And Nomenclatures

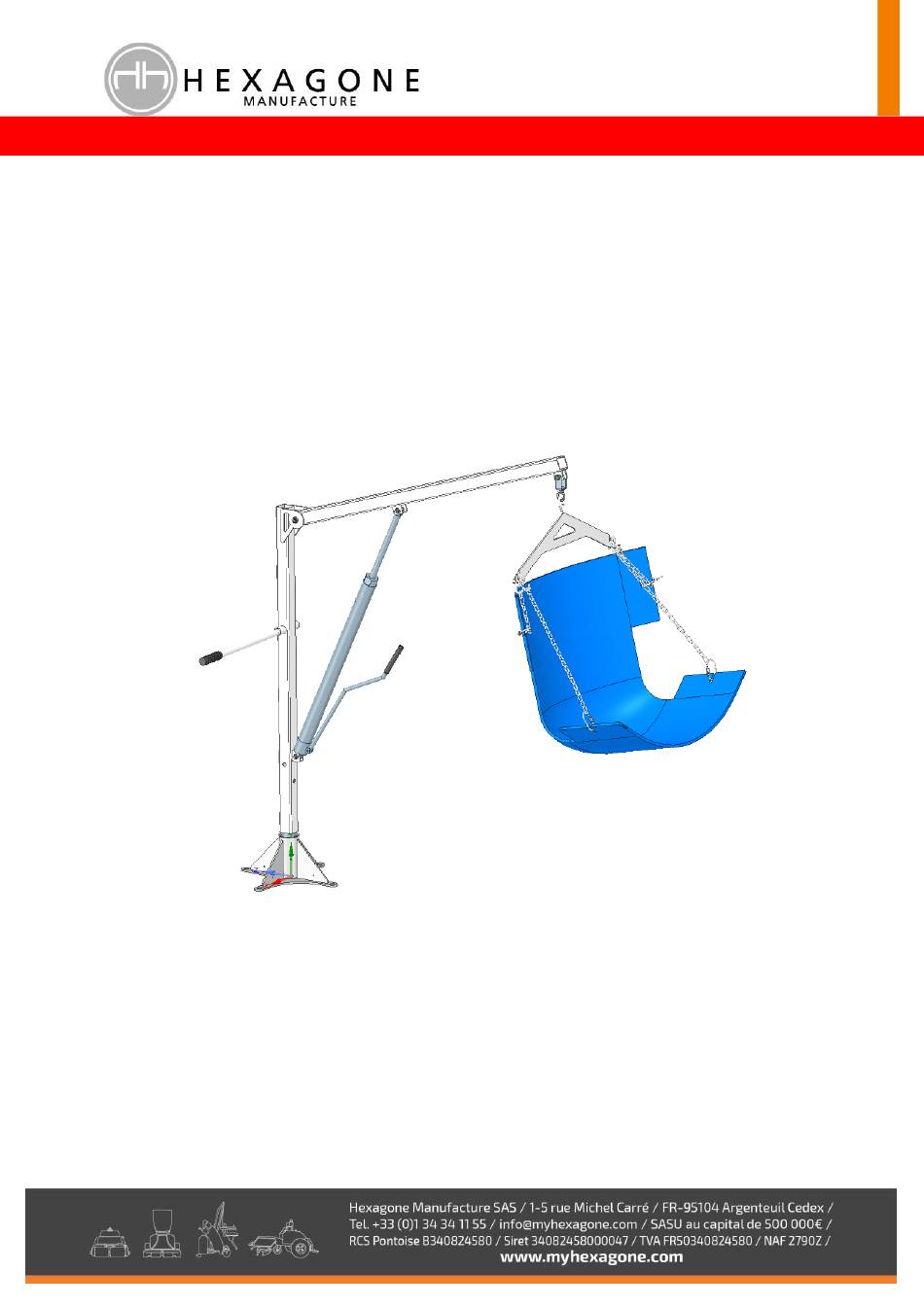

☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs EXPLODED VIEW AND NOMENCLATURES A. General view UDXUFIVR30N000-EN... -
Page 8: Bom
☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs B. BOM UDXUFIVR30N000-EN... -
Page 9: Overall Dimensions
☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs C. Overall dimensions The dimensions are in mm. UDXUFIVR30N000-EN... -
Page 10: Installation
☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs 3. INSTALLATION A. Installation of the Unifix anchor Note: The Unifix Pool Lift comes with a standard anchor of 25 cm deep to install in a concrete floor. Anchorage options include both attached and wooden surface anchoring system which needs to be purchased separately. -
Page 11: Step 7 - For Rigidity
Pool WARNING! If you are unsure whether the work is completely reliable, contact a competent company. Any damage or accident occur due to improper anchoring will not be a responsibility of Hexagone Manufacture. C. Option 2 - Installing Unifix on the ground Parts for this type of anchoring needs to be purchased separately. -
Page 12: Step 1 - Location
50cm from the edge of the pool as shown below. WARNING! If you are unsure whether the work is completely reliable, contact a competent company. Any damage or accident occur due to improper anchoring will not be a responsibility of Hexagone Manufacture. -
Page 13: Step 3 - Resin Cartridge
☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs Minimum thickness concrete slab of 16cm For earthing, connect a copper cord of 8mm to the ground. 3. Step 3 – Resin cartridge Place each resin cartridge into each hole which are previously drilled. 4. -
Page 14: Instruction
☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs 4. INSTRUCTION A. Assembly Instruction - Unifix Pool Lift The Unfix arrives with the arm mounted on the mast. To complete the assembly, unpack everything on a clear ground and spread all the parts. 1. -
Page 15: Operating Instructions For The Unifix Pool Lift
☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs 5. Step 5 - Fastening Chains with Hammock Plates Locate the set of each chain and insert each "S" to the hanger (mark C). Attach the hanger hook to the ring screw that is attached to the Unifix arm (mark B). -
Page 16: Taking Care Of Your Unifix
☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs • The articulated arm of the Unifix must be parallel to the edge of the pool, bring the person with reduced mobility with their wheelchair and put the brakes of wheelchair near the Unifix. •... -
Page 17: Your Guarantee
☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs 6. YOUR GUARANTEE The manufacturer guarantees to the purchaser and the user that the products will be free from defects in materials and workmanship for a period of 2 years from the date of original purchase only if it is properly installed in accordance with the installation and assembly instructions, and properly used and maintained. - Page 18 ☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs UDXUFIVR30N000-EN...
- Page 19 ☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs UDXUFIVR30N000-EN...
-
Page 20: Annex
☎ UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs 7. ANNEX A. Certificate of personalized use UDXUFIVR30N000-EN... -
Page 21: Practical Information
UDXUFIVR30N000-EN Unifix manual for people upto a maximum weight of 180kgs 8. PRACTICAL INFORMATION Address: HEXAGONE MANUFACTURE 1-5 rue Michel Carré 95104 – Argenteuil - FRANCE Tél. +33 (0)1 34 34 11 55 Fax. +33 (0)1 34 34 11 50 www.myhexagone.com...
