Tecnifibre X-CORD User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUEL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-CORD and is the answer not in the manual?

Questions and answers

Summary of Contents for Tecnifibre X-CORD

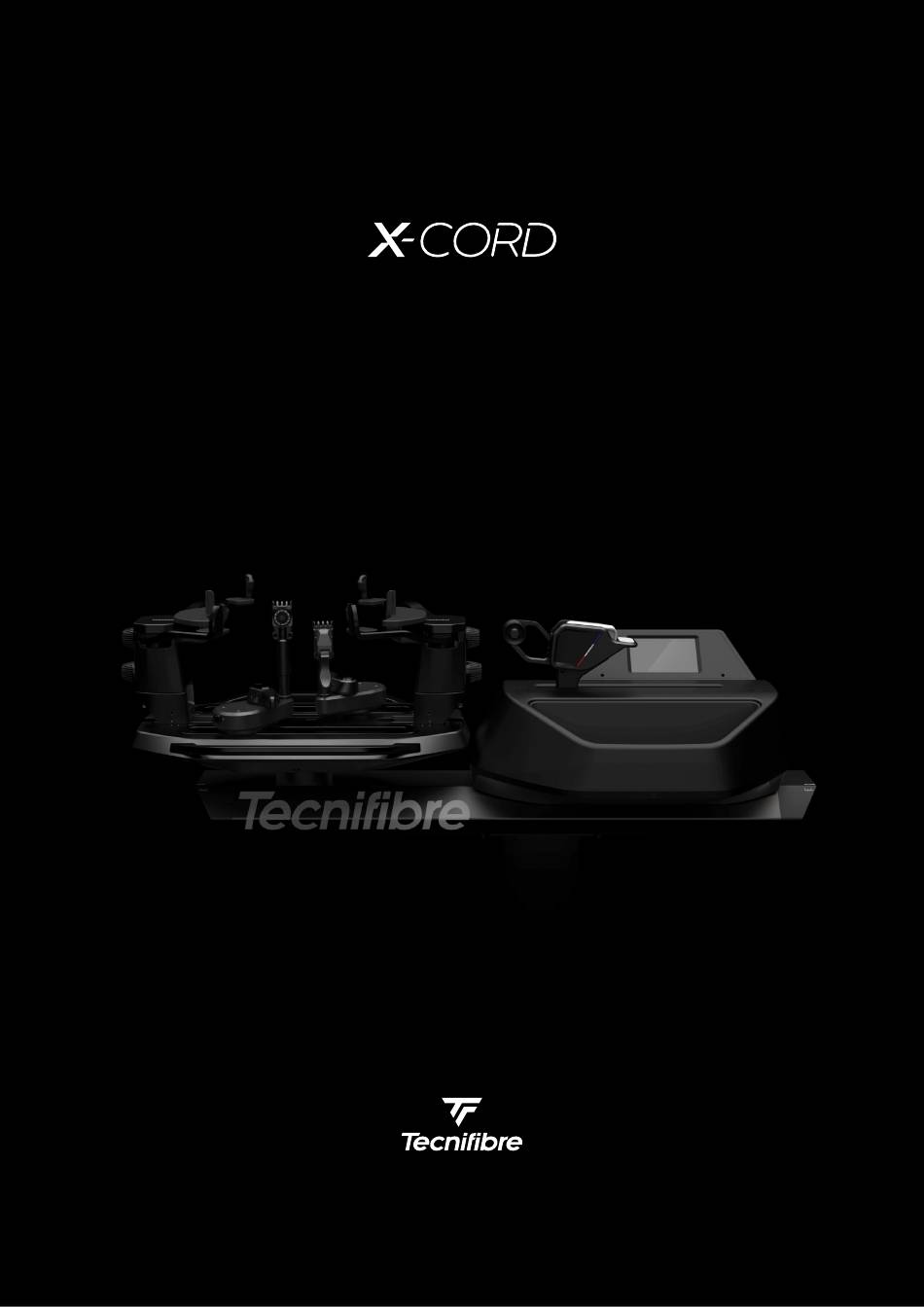

  • Page 1 USER MANUEL...

  • Page 2: Table Of Contents

    B. Tennis & badminton configuration Tecnifibre will not be held responsible for direct or indirect damages caused by incorrect use, lack of maintenance, C. Installing the racket unauthor-ized modifications or incorrect use of the machine.They also cannot be held responsible in case of accident, D.

  • Page 3: Assembly Of The Machine

    DESCRIPTION OF PARTS MACHINE FUNDAMENTALS A.CONNECTING THE MACHINE Plug in the power cable. (A) Connect the pulling jaw pedal. (B) The switch is located under the machine (customer side). (C) DO NOT PRESS the screen of the machine during startup and diagnostic.

  • Page 4: Installing The Racket

    C. INSTALLING THE RACKET D. CLAMPS & CLAMP BASE TIGHTEN THE CLAMPS AND CLAMP BASE. The machine has a 6-point clamping system and a unique racket flat support system to guarantee a optimal respect for the racket. - There is no difference between which way up you place the racket on to the support. - Allows you to mount tennis, squash and badminton rackets.

  • Page 5: Puller Head

    E. PULLER HEAD ADJUST THE PRESSURE OF THE CLAMPS ON THE STRING. The puller head can be set in 3 different ways: Setting up the string. Option n°1: the touch button. The adjustment is made using the dial. Place the string in the puller head using the diabolo. Press the touch button, the jaw will engage the string Turn the dial clockwise to tighten.

  • Page 6: Control Panel Functions

    CONTROL PANEL FUNCTIONS D. KNOT A. MAIN MENU Knot adjustment. Enable/disable the function. Press on the knot value to vary. Tap the icon to enable/disable it. After 4 Kg, the display returns to 0.5 Kg. Also the function can be activated after the puller head activation.

  • Page 7: Pre-Stretch

    F. PRE-STRETCH I. SETTING FUNCTIONS Pre-stretch adjustment. Enable/disable the function. Access to machine settings. Display of settings functions. pre-stretch value Press the to vary the values Tap the icon to enable/disable it. Press the icon to access the setting functions. After 20%, returns to 0%.

  • Page 8: Tension Calibration

    MAINTENANCE K. TENSION CALIBRATION Calibration adjustment. Get a tension-meter. Place a string under tension in the puller head. Pull your string and enter the value displayed on your tensiometer. Validate to carry out the tests at 20Kg, 30Kg then 40kg. After carrying out the test at 40Kg, the calibration is finished.

  • Page 9: After-Sales Service

    If the problem persists on your machine, please contact Tecnifibre to make the first diagnosis. and the surface of the turntable with alcohol Tecnifibre has created a stock of spare parts which allows defective parts to be easily replaced. The clamp base slides on the glide bar Adjust clamp base lock nut Scan the QR code to view troubleshooting tutorials.

  • Page 10: Guarantee And Declaration Of Conformity

    Equipment. If a parts defect arises and a valid claim is received within the Warranty Period, at is option Tecnifibre will either exchange the part with a new, used or refurbished part that is at least functionally equivalent to the original part.
