Toshiba HX-MU900 Music Module Expander
256 kB Sample RAM, MSX-Audio Basic, original software
Original by: Bas Kornalijnslijper
Translated by: Bart Hamer
Warning:
The most important part in the Music Module is the printed circuit board (PCB). Parts can be replaced, but
not the PCB. Do not try to unsolder the parts, but cut them loose and then remove the solder pins. The use
of IC sockets is recommended.
Upgrade package contents:
Completely pre-assembled expansion board with 256 kB Sample RAM
-
-
EPROM containing MSX-Audio Basic and adjusted original software
SRAM memory chip (SRM2264C)
-
74LS139
-
1 KΩ resistor (2 pieces)
-
-
47 µF capacitor
0,1 µF capacitor
-
Wire
-

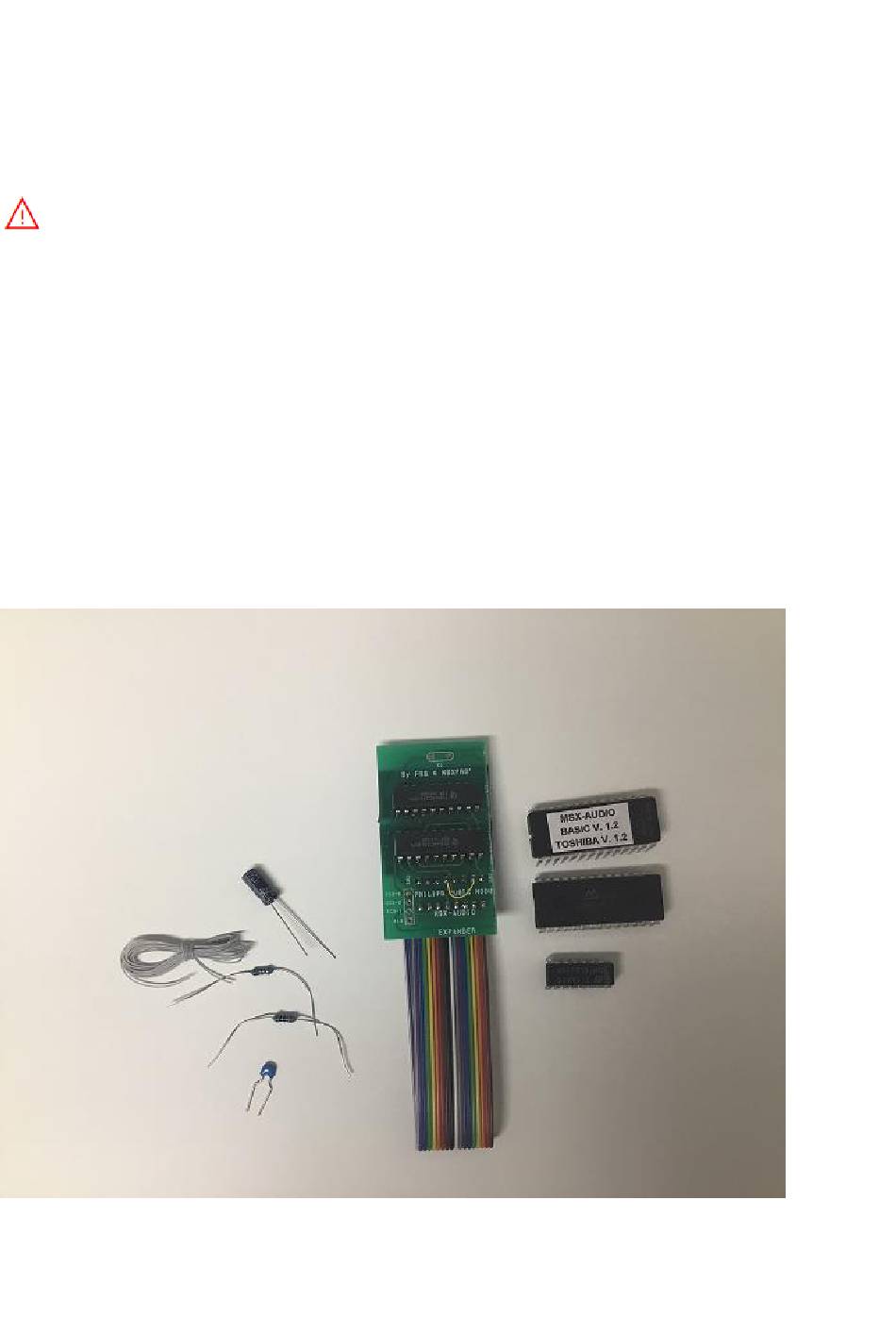

The contents of the upgrade package.
