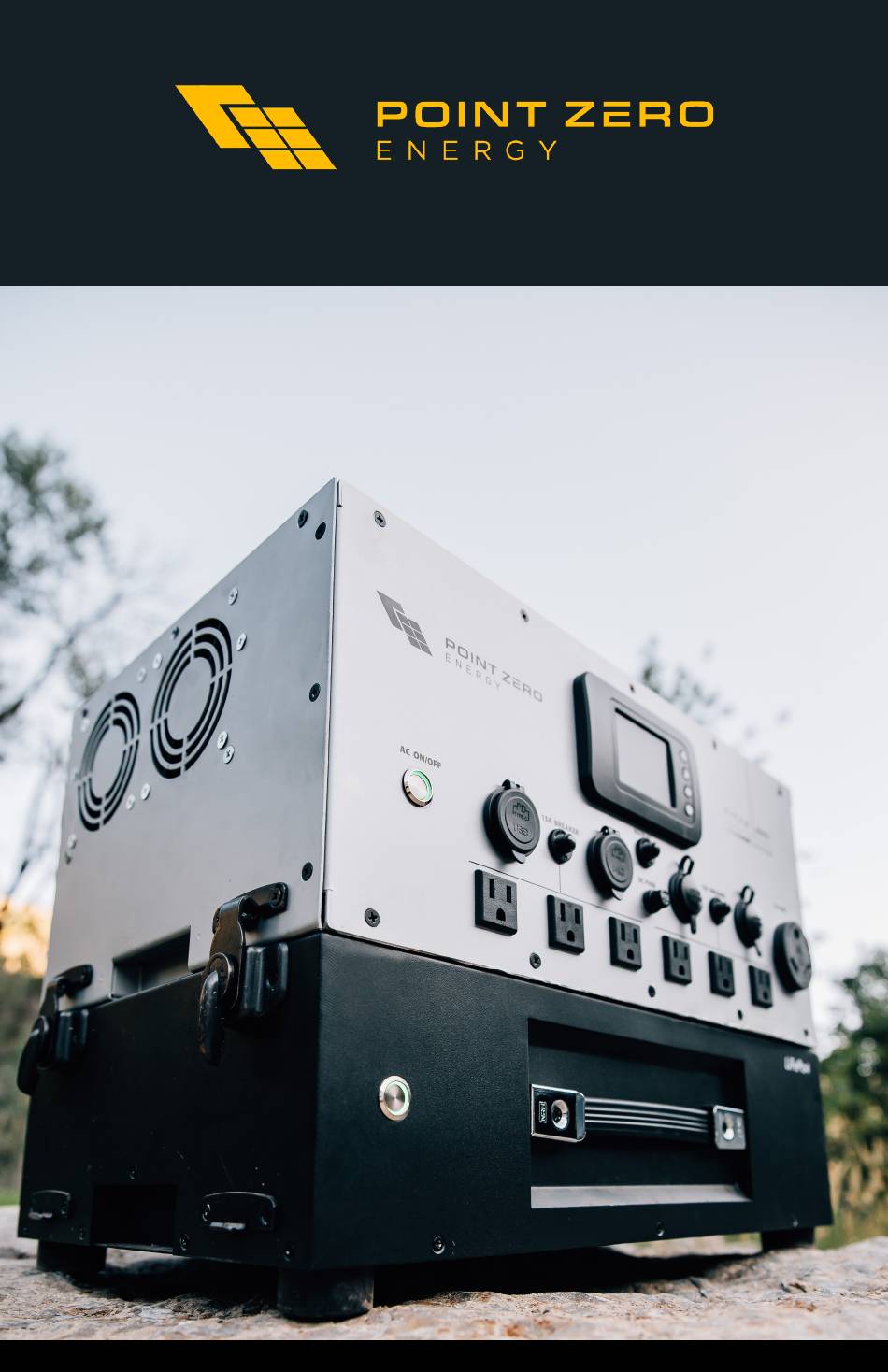

  • Page 1 Titan Boost User Manual...

  • Page 2: Table Of Contents

    Table of Contents Safety Instructions Product overview Technical specs CHARGING YOUR POWER STATION Charging from the Wall Charging from Solar Charging from Solar (Cont.) Safety Mode OPERATING INSTRUCTIONS Initial Setup Battery Meter Using the app Programming Programing Using the Display Screen STORING YOUR POWER STATION TROUBLESHOOTING WARRANTY &...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS To avoid personal injury or damage to the solar generator or any connected products, carefully read, understand, and comply with all instructions before use. Keep this manual for future reference. Observe all Input/Output watt ratings: To avoid possible hazards, observe all ratings on unit, and products you intend to use;...

  • Page 4: Product Overview

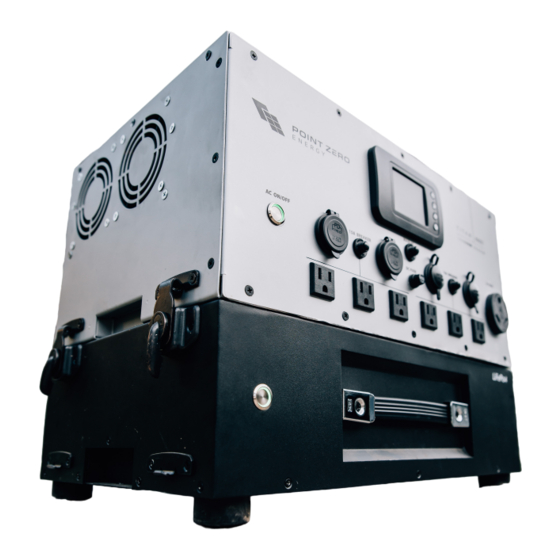

    PRODUCT OVERVIEW Front View A- AC power button (Pressed in will turn AC power on to the 6 15A outlets and the one 30A outlet) B- 120V AC sockets 15A per set of 3 (left three combined 15A, and right 3 combined 15A max) C- 12V DC sockets Total 12V DC output of 20A (this includes both cigarette ports, and the 12V output on the side.
  • Page 5 Side View K- Solar input ports (per port) Max charging 1,000 watts (more will not cause damage) Max input amps: 30A Max voltage: 240V per port (voltages over 240V will void warranty) Min Voltage: 35V (lower voltage will not charge) L- Aux port, used for AC charger, external MPPTS, and 24VDC output M- Battery expansion port, used to connect external batteries to...
  • Page 6 Battery O- Battery latch. Ensure battery is secure with all four latches closed before use P- Power button Q- SB50 battery connectors R- BMS port cover. Factory serviceable- DO NOT OPEN!

  • Page 7: Technical Specs

    TECHNICAL SPECS Power Module Weight 37 lbs Dimensions 18.5 x 12 x 8.5 Solar Input volts: up to 240VDC watts: up to 2000 w Output Voltage 120V AC Pure sine wave Continuous Power 3,000 watts Output Peak Power Output 6,000 watts for 5 seconds Outlets (6) 120V 15A, (1) 120V 30A (2) USBC (2) USBA...

  • Page 8: Charging Your Power Station

    CHARGING YOUR POWER STATION There are two ways to charge your Titan Boost power station: from solar, or using an AC wall charger. The Titan is capable of charging from all sources at the same time. *IMPORTANT: ALL SOURCES OF CHARGING COMBINED SHOULD NOT EXCEED 1300 watts PER BATTERY.

  • Page 9: Charging From Solar (Cont.)

    You can charge from any external source, however, we recommend using Point Zero Energy products as they will be designed to work correctly with our batteries. To use external charging, simply plug the charger into the Aux port on the Titan Boost power module.

  • Page 10: Safety Mode

    Titan power station so it can read correct charge/discharge information and function properly. PLEASE FOLLOW INSTRUCTIONS CAREFULLY. Setting up the Titan Boost is easier by using the app, but not necessary. You can install the app from these QR codes: Android...

  • Page 11: Initial Setup

    INITIAL SETUP 1. CONNECT THE BATTERY PACK(S) TO THE TITAN POWER MODULE 1. Ensure the power button on the battery is OFF (in the out position) on all batteries being connected. 2. If you have multiple batteries, remove the protective plates from underneath all batteries, except the bottom battery.

  • Page 12: Battery Meter

    c) Alternately you can program the meter by following the instructions in the battery meter section. 3. CALIBRATE THE METER (Step 2 must already be done) 1. If not already on, turn on all batteries and the Titan Power Module. 2.

  • Page 13: Using The App

    not confuse this with AC amps being used by appliances. Because the battery has a lower voltage than the AC output, the battery amps will be much higher. Volts: This is the current voltage of the battery. Watts: This is the current draw or charge in watts from the battery.. USING THE APP After downloading the app, open it to begin initial setup.
  • Page 14 You will know which Titan you are connected to when the white BlueTooth icon on the Titan’s display screen turns blue. If you’d like to, you can rename the device (this is especially helpful for customers with multiple Titan devices). After renaming the device, select “Update Name”...

  • Page 15: Programming

    PROGRAMMING Select the gear icon on the upper right of the home screen in order to enter the settings menu. 1. Without the proper amp hours set, the app will not properly track the state of charge, and will give inaccurate information. The amp hours needs to be the total amp hours of your batteries.

  • Page 16: Programing Using The Display Screen

    You’ll notice 6 different settings. The max volt and min volt settings will already be properly set from Point Zero Energy. You should not need to adjust these settings unless otherwise stated from a Point Zero Energy support agent. The other 4 settings are as follows:...
  • Page 17 battery (90ah) and want to be alerted when your batteries are at half, set this to 45. LCD ON (MIN): How long you would like to keep the display screen on (in minutes) before the display screens goes into sleep mode. 3.
  • Page 18 Using your Titan Power Station After initial setup, your Titan power station is ready to use. The Titan station has two modes of use: DC ONLY and DC/AC. Any time the batteries are connected and turned on, DC mode is on.
  • Page 19 Titan, but all inverters. Peak power The Titan boost can run 2X the continuous load for up to 5 seconds. This allows it to start appliances with a large load better than most generators. However, if the load stays over 3,000 watts for more than 5 seconds it will turn off...
  • Page 20 If no solar is available, it will need to be charged by another source to get it out of safety mode. UPS (uninterrupted power supply) The Titan Boost uses double conversion UBS. This type of ups provides the cleanest power possible, with zero downtime when the power goes out.

  • Page 21: Storing Your Power Station

    Temperature range You should not use your Titan power station in temperatures below 32 deg F, or above 100 degF. You may store your system at lower temperatures, but it must be warmed up and dried out before using. STORING YOUR POWER STATION The Titan solar generator will retain a charge for up to 5 years.

  • Page 22: Troubleshooting

    TROUBLESHOOTING For troubleshooting issues, please visit our knowledge base on our website at https://www.pointzeroenergy.com/support/knowledge- base/ WARRANTY & RETURNS For information on product warranty, visit our website at https:// www.pointzeroenergy.com/warranty-returns/ © Point Zero Energy 2023...
