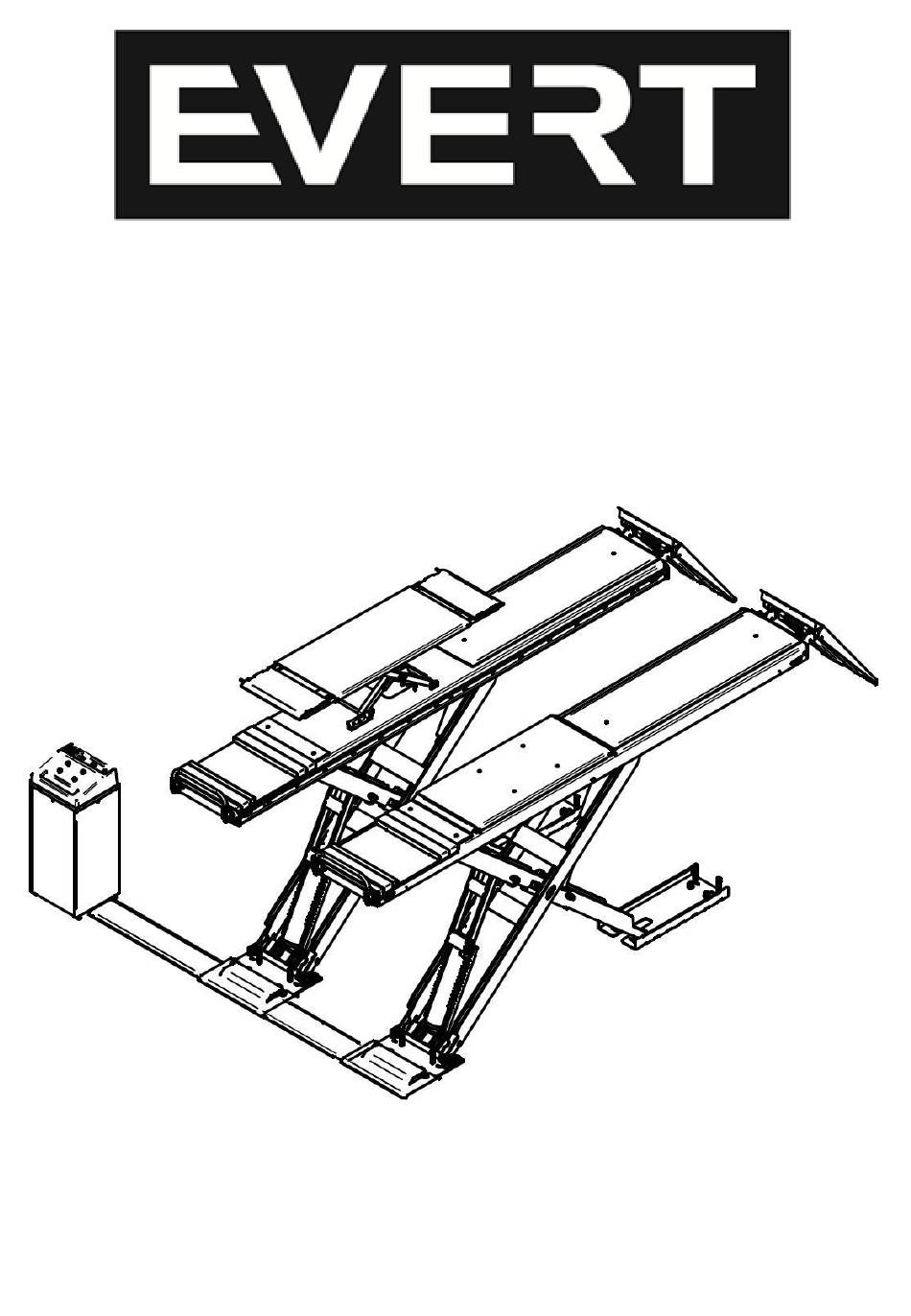

Page 1 GAMMA Installation, Operating and Service Manual PLATFORM SCISSOR LIFT Operator's manual [EN]...
Page 2: Table Of Contents
CONTENTS TECHNICAL DATA ................... 46 LIFT MODEL DESCRIPTION ..............51 LIFT IDENTIFICATION DATA ..............52 INTENDED USE ..................52 GENERAL SAFETY REGULATIONS ............54 LIFTING AND HANDLING ................ 55 UNPACKING .................... 56 INSTALLATION AREA ................56 INSTALLATION ..................57 HAZARDOUS AREAS ................59 HYDRAULIC CONNECTION ..............
Page 3: Technical Data
TECHNICAL DATA MAIN LIFT Maximum load capacity 4500/5500kg Runway length ............ 4200 mm /4600 mm / 5200mm Runway width 710 - 725 mm Distance between runways 800 / 1100mm Lifting time ....................... 45 s Lowering time (without loads) ................40 s Oil tank capacity ....................
Page 4 Operator's manual [EN]...
Page 5 Operator's manual [EN]...
Page 6 Operator's manual [EN]...
Page 7 Operator's manual [EN]...
Page 8: Lift Model Description
LIFT MODEL DESCRIPTION Main lift components 1 Base 2 Inner scissor element 3 Outer scissor element 4 Runway structure 5 Wheel stop 6 Ramp 7 Hydraulic cylinder 8 Lift table 9 Control unit Operator's manual [EN]...
Page 9: Lift Identification Data
LIFT IDENTIFICATION DATA Lift identification data are indicated on the plate positioned on the control unit and under the runways. Each plate carries identification elements and some technical data; besides manufacturer’s data, the plate also includes: Mod. - Model V - Supply voltage in Volt; A - Current absorption in Ampere;...
Page 10 impair the stability and thus the intrinsic safety of the lifting device. For the same reason, load differences between the two runways must not exceed 10% of lift maximum load capacity. example: left hand runway 1800 Kg, right hand runway 2700 kg. IMPORTANT: for correct, safe use of the equipment, users must ensure a lighting level of at least 300 lux in the place of use.
Page 11: General Safety Regulations
GENERAL SAFETY REGULATIONS This equipment is for professional use only. WARNING Only one operator may work with the equipment at a time. The lift must only be used by specifically trained and authorized staff. Any tampering with or modification of the equipment not authorized in advance by the manufacturer relieves the latter from any responsibility for damage deriving from or due to such procedures.
Page 12: Lifting And Handling
LIFTING AND HANDLING When loading / unloading or transporting the equipment to the customer, it is necessary to ensure the adequacy of the vehicles and loading vehicles (e.g. cranes, trucks, etc.) and the lifting equipment used. It is also necessary to ensure that the components are lifted and transported without the risk of falling, taking into account the size, weight, center of gravity of the package and delicate parts not to be damaged.
Page 13: Installation Area
checking that there are no visibly damaged parts (control unit, lift structure). In case of damage, do not use the equipment (the lift) and contact professionally qualified staff (your dealer). The packaging materials (plastic bags, expanded polystyrene, nails, screws, pieces of wood, etc.) must not be left within reach of children since they are potential sources of danger.
Page 14: Installation
Environmental working conditions Relative humidity: 30% to 95% without condensation. Temperature range: 0°C to 40°C. INSTALLATION After unpacking, position the parts ready for assembly. During handling, necessary to find the right positioning of the lift on the ground, suitable slings or chains must be used (fig. 6). Once the exact position of the lift has been established, position the control unit.
Page 15 Anchor Fitting Procedure The lift must be fixed to the floor; for this operation, the following devices are necessary: 1. Hammer drill for drilling concrete, with 0 12 mm bit. 16 FISCHER expansion plugs for heavy fixing duty, type FH II 12/50 H (or equivalent models).
Page 16: Hazardous Areas
HAZARDOUS AREAS Before using the lift, make sure that no unauthorized persons are present within the hazardous area delimited by the yellow stripe (Fig. 7_1). Persons shall by no means stop or pass within the hazardous area delimited by the yellow stripe (Fig.7_1).
Page 17: Hydraulic Connection
HYDRAULIC CONNECTION Proceed as follows to connect the lift hydraulically to the control unit: Remove the control unit door by loosening the 4 fixing screws. Remove the protective cover. Extract the hydraulic pipes positioned inside the control unit. Extract the hydraulic pipes under the main lift runways.
Page 18: Lift Table Hydraulic Systemconnection
LIFT TABLE HYDRAULIC SYSTEM CONNECTION Proceed as follows to connect the lift hydraulically to the control unit: Remove the control unit door by loosening the 4 fixing screws Remove the protective cover Extract the hydraulic pipes positioned inside the control unit. Extract the hydraulic pipes under the main lift runways.
Page 19: Pneumatic Connection
PNEUMATIC CONNECTION The pneumatic network to which the lift pneumatic system is to be connected must be equipped with a service unit consisting of a filter, regulator and lubricator unit (FRL). FRL units may be ordered from the manufacturer if required. To connect the lift pneumatically to the control unit, proceed as follows: Remove the control unit door by loosening the 4 fixing screws.
Page 20: Electrical Connection
ELECTRICAL CONNECTION The electrical system connection procedure consists on the following steps: Connection to the mains Connection of the lighting system (if any). Connection to the mains WARNING must be carried All the operations required for machine electrical connection to the mains out exclusively by qualified personnel.
Page 21: Safety Device Specifications
SAFETY DEVICE SPECIFICATIONS The lift is provided with safety devices granting the user maximum safety in the event of failure. The safety devices are the following: Mechanical device: this device is essentially composed of a claw and a rack (see fig. 11), and immediately stops the sudden downstroke of the lift (within 100 mm height) in the event of hydraulic line failure or a blow-out in the circuit.
Page 22 Electronic aligner (fig.13): this device consists of 2 position transducers (potentiometers) and the electronic control board. The electronic control board reads the signals from the two position transducers to constantly check whether the misalignment of the two runways has reached or exceeded 50 mm;...
Page 23: Operating Procedures
OPERATING PROCEDURES Lift controls: Main switch Main lift safe parking button Lift up button Lift down button End of travel button (last 500 mm) Power on led indicator and main lift selection Power on led indicator and lift table selection Main lift / LT selection switch Slip plate locking selection switch Service led light selector button...
Page 24 The individual functions of each control on the panel are described below. MAIN SWITCH Simply turn the main switch clockwise to switch on the control unit (from 0 to 1). The switch may be padlocked in position "0" to prevent unauthorized use of the lift. MAIN LIFT SAFE PARKING BUTTON if the button is pressed directly, the lift begins to descend but without raising the pawls of the mechanical safety devices, and the built-in lift table will remain held on the mechanical...
Page 25: Commissioning
COMMISSIONING WARNING The lift must be commissioned by specially trained staff capable of ensuring that the lift and all its mechanical and electrical safety systems are operating correctly. The instructions to be followed are provided at the end of this manual, in a section for the use of authorized commissioning staff only.
Page 26 To ensure the machine remains in good working order and operates correctly, it is essential to follow the instructions given below, carrying out cleaning and routine maintenance every 1000 working hours. Routine cleaning and maintenance operations must be carried out in accordance with the instructions given below: Cleaning and maintenance operations must be carried out in conditions of maximum safety, setting the lift in a mechanically safe position.
Page 27: Lift Usage
LIFT USAGE The lift must be used by authorized personnel only. Remember that any use by staff not familiar with the procedures specified in this manual might cause dangers. Machine operation is as follows: MAIN LIFT Positioning the vehicle: after positioning the vehicle on the runway of the lift be sure that the wheels are as centered as possible on the center line of the runways, then block the parking brake of the vehicle to avoid dangerous movements.
Page 28: Manual Emergency Movement
MANUAL EMERGENCY MOVEMENT The lift has two emergency modes: MAIN LIFT MANUAL EMERGENCY BUILT-IN LIFT TABLE MANUAL EMERGENCY (for version with LT only) These two modes are intended for handling emergency situations which may arise due to malfunction, incorrect loading, power failure, etc... The purpose is to enable the operator to lower the runways of the lift in order to allow for the removal of the vehicle.
Page 29 MAIN LIFT MANUAL EMERGENCY MOVEMENT Turn off the main switch Open the control unit door Remove any obstacles under the lift Open the pawls relative to the solenoid valves A and B at the same time taking care to lower the runways with small movements. Carry out the point [4] several times making sure that the lift moves down smoothly and with the runways aligned until they rest on the ground.
Page 30 BUILT-IN LIFT TABLE MANUAL EMERGENCY MOVEMENT 1. Turn off the main switch 2. Open the control unit door 3. Remove any obstacles under the lift 4. Open the pawls relative to the solenoid valves A and B at the same time taking care to lower the runways with small movements.
Page 31: Storage
STORAGE If the lift is to be out of use for a long period, disconnect the energy supplies, empty the tank(s) containing operating fluids and protect any parts which might be damaged by dust. SCRAPPING (the hydraulic If the lift is to be decommissioned, it must be made inoperative by removing the power unit pump and electric motor) from the control unit.
Page 32: Recommended Fire Extinguishingequipment
RECOMMENDED FIRE EXTINGUISHING EQUIPMENT When choosing the most suitable fire extinguisher consult the following table: Electrical Dry materials Inflammable liquids equipment Water Foam powde YES* YES* YES* Can be used in the absence of more appropriate methods or to control small fire outbreaks WARNIN This table contains general instructions to be used as guidelines for the users.
Page 33: Troubleshooting
Mineral oil: first aid procedures Ingestion: seek medical attention immediately and provide all characteristics of the type of oil ingested. Inhalation: for exposure to high concentrations of fumes or oil mist, move the affected person to the open air and seek medical attention immediately. Eyes: rinse with plenty of running water and seek medical attention immediately.
Page 34 pressed (without Replace the button The DOWN button is load) faulty The lowering and Verify that solenoid locking solenoid valve sliders are not valves stay opened blocked Leakage in at least Check connections two hydraulic Platforms do not stop for proper tightening pipelines and tubes for damage in parking position...
Page 35: Commissioning
COMMISSIONING The machine must be commissioned by specially trained personnel, in order to assure the correct operation of the lift and all its mechanical and electrical safety systems. The commissioning procedures for the electrical, hydraulic and safety systems and the accessories are described in the following paragraphs.
Page 36: Pneumatic System Diagram For Ct Lt
PNEUMATIC SYSTEM DIAGRAM FOR CT LT Fig. 19 MANUAL SLIP PLATE LOCKING VALVE MECHANICAL SAFETY DEVICE SOLENOID VALVE CIL.1 CYLINDER OF LH MECHANICAL SAFETY DEVICE FOR MAIN LIFT CIL.2 CYLINDER OF RH MECHANICAL SAFETY DEVICE FOR MAIN LIFT CIL.3 CYLINDER OF LH MECHANICAL SAFETY DEVICE FOR LIFT TABLE CIL.4 CYLINDER OF RH MECHANICAL SAFETY DEVICE FOR LIFT TABLE Operator's manual [EN]...
Page 37: Hydraulic Circuit Diagram Formain Lift
HYDRAULIC CIRCUIT DIAGRAM FOR MAIN LIFT Parachute Valve Master cylinder (safety) YV11 Down Valve Slave cylinder YV12 Down Valve Electric motor 3kW Oil flow-Control 8 l/min Pump (4,8cc for 3ph - Check valve 3,0cc for 1ph) Filter Maximum Pressure Valve (Pmax 290 bar) Floating level switch Oil tank 18 L...
Page 38: Hydraulic Circuit Diagram For Lifttable
HYDRAULIC CIRCUIT DIAGRAM FOR LIFT TABLE Parachute Valve Master cylinder Down Valve Slave cylinder Up Valve Electric motor 3kW Oil flow-Control 8 L/min Pump (4,8cc for 3ph - Check Valve 3,0cc for 1ph) Maximum Pressure Valve (Pmax Filter 290 bar) Oil tank 18 L Operator's manual [EN]...
Page 39: Wiring Diagram
WIRING DIAGRAM Fig. 21 - 22 FUSE Gg-500 10.3x38 16A Drop button LA22C FUSE Gg-500 5x20 1A Drop button LA22C Transformer 200W /24V( FUSE Gg-500 5x20 4A 24V(90W) YV11 BUZER AD16-22SM Drop solenoid valve YV12 BUZER AD16-22SM Drop solenoid valve AC contactor CJX2-1801 24ACV Pneumatic solenoid valve...
Page 40 WIRING DIAGRAM Version 400V - 3PH Operator's manual [EN]...
Page 41 WIRING DIAGRAM Version 230V - 3PH Operator's manual [EN]...
Page 42 WIRING DIAGRAM Version 230V - 1PH Operator's manual [EN]...
Page 43 LEVEL SWITCH CONNECTION Main Lift Operator's manual [EN]...
