Evert KENNECOTT 810559755 Assembly Instructions Manual

10ft x 10ft
Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY INSTRUCTIONS

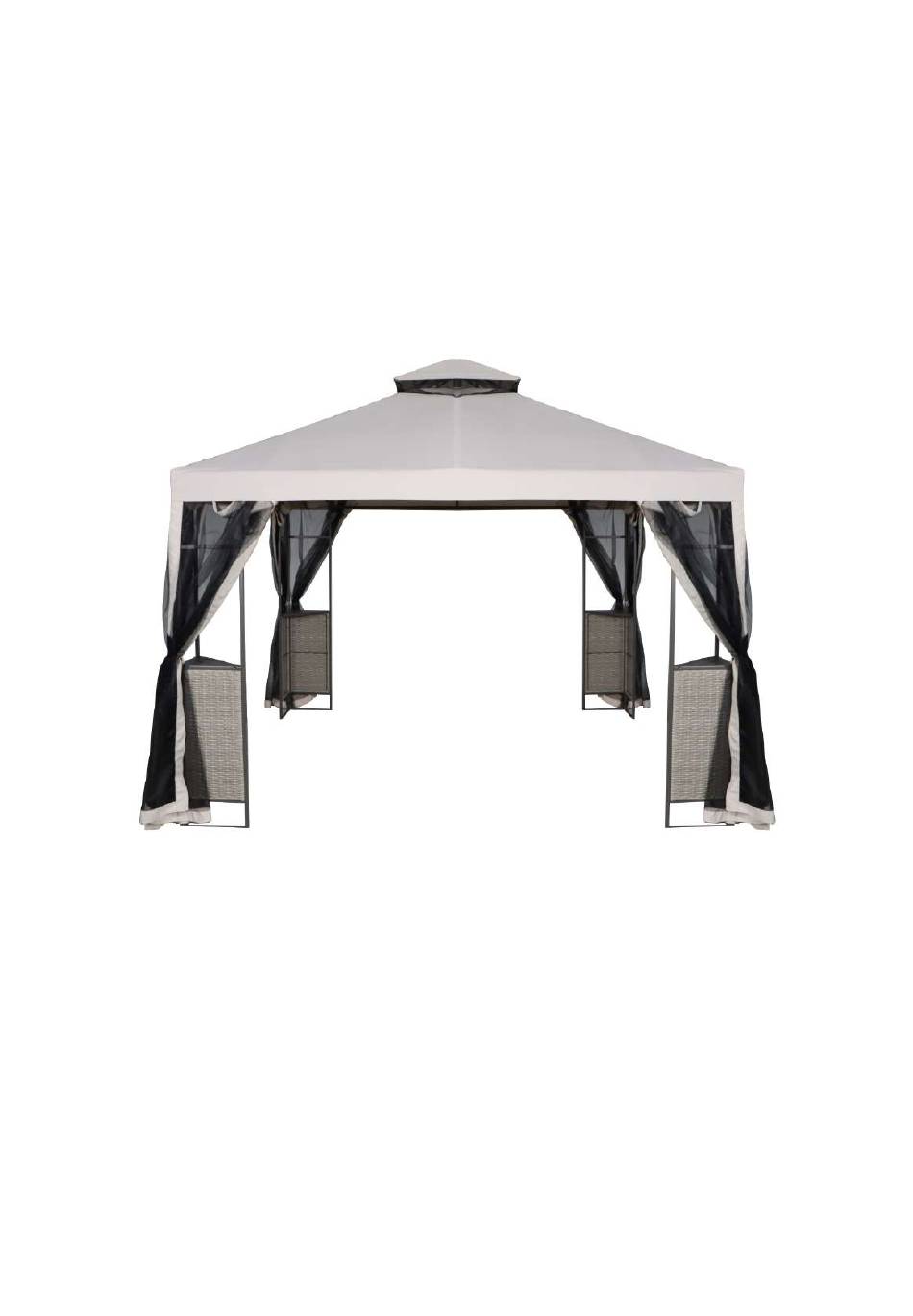

KENNECOTT 10FT X 10FT GAZEBO
ITEM#: IT20419
SKU# 810559755
WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM
THIS TENT FABRIC.
This tent meets the flammability requirements of CPAI-84. The fabric
may burn if left in continuous contact with any flame source. The
application of any foreign substance to the tent fabric may render the
flame-resistant properties ineffective.
STOP!
Missing A Part? No Need To Go Back To The Store!
The store where you made your purchase does not stock parts for this item.
If you need parts, whether they are missing or damaged.
Please email: support@aceevert.com along with proof of purchase.
Toll Free Customer Service Hotline at: (877) 980-6928
- Monday through Friday 7:30am until 4:30pm PST -

Advertisement

loading
Need help?

Need help?

Do you have a question about the KENNECOTT 810559755 and is the answer not in the manual?

Questions and answers

Summary of Contents for Evert KENNECOTT 810559755

  • Page 1 ASSEMBLY INSTRUCTIONS KENNECOTT 10FT X 10FT GAZEBO ITEM#: IT20419 SKU# 810559755 WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC. This tent meets the flammability requirements of CPAI-84. The fabric may burn if left in continuous contact with any flame source. The application of any foreign substance to the tent fabric may render the flame-resistant properties ineffective.
  • Page 2 WARNINGS: Please read all instruction before assembly and use: 1.Assemble on level ground. 2.This unit is heavy. Do not assembly this item alone. 2-4 people are recommended for safe assembly. 3.Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should always be followed to reduce the risk of personal injury and damage to the product.
  • Page 3 Description Picture Clamp Shelf Canopy Mosquito net Parts List Description Picture Side panel Side panel Crossbeam Corner connector Middle connector...

  • Page 4: Hardware Used

    Hardware Used Step 1 A Side panel B Side panel Corner connector I Clamp Step (1-3) Push down spring botton Step (1-1) Insert the plug Side panel(B) into the plug hole on side Panel(A). Step (1-2) Then use the clamps to attach the panels.Repeat these steps for all 4 panels.
  • Page 5 Hardware Used Step 2 C Crossbeam I Clamp Shelf Step (2-1) Then use the clamps to attach the panels. Repeat these steps for all 8 panels. Insert Rotate Step (2-2) Put the shelves on the panels in between of each corner.
  • Page 6 Hardware Used Step 3 D Rib H Hub Step (3-1) Push down spring botton Step (3-2) Push down spring botton...
  • Page 7 Hardware Used Step 4 Middle connector Step (4-1) Push down spring botton Step (4-2) Push down spring botton Step (4-3) Push down spring botton...
  • Page 8 Hardware Used Step 5 M Mosquito net Step (5-1)
  • Page 9 Hardware Used Step 6 L Canopy K Peg Step (6-1) Put the small canopy(L) onto ribs. Step (6-3) Step (6-2) Step (6-4) Making certain that the pavilion is square; Spread the cover out over the top of the Gazebo. Pull it tight and bring it down over the top porting of the side panels at each corner.

  • Page 11: Year Limited Warranty

    WARRANTY: 1 YEAR LIMITED WARRANTY For a period of one (1) year after date of purchase, the Manufacturer will either repair or replace defective components in accordance with this Limited Warranty. This warranty is between the Manufacturer and the original purchaser and is valid only when accompanied by the original purchaser’s sales receipt showing original date of purchase and location of purchase.
