BT7852

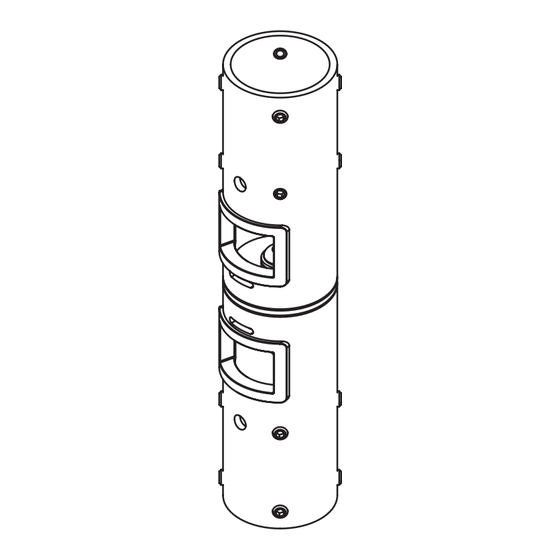

Swivel Adaptor
For Use With BT7850 Poles
Installation Guide
Connects 2x BT7850 poles together
■
providing 360⁰ swivel for the lower pole
Max load: 70kg (154lbs)
■
Max load: 35kg (77lbs) back-to-back mounting
Integrated cable management
■
Simple installation
■
Designed to be used in conjunction with
■
B-Tech's System 2 range
www.btechavmounts.com
Max
Swivel
Load
70kg
360
°
[154lbs]
Advertisement
Summary of Contents for BTECH SYSTEM 2 BT7852
- Page 1 BT7852 Swivel Adaptor For Use With BT7850 Poles Installation Guide Connects 2x BT7850 poles together ■ providing 360⁰ swivel for the lower pole Max load: 70kg (154lbs) ■ Max load: 35kg (77lbs) back-to-back mounting Integrated cable management ■ Swivel Load Simple installation ■...
-
Page 2: Installation Safety Instructions
Contents BT7852 Installation Safety Notes Parts List Installation Instructions Typical Installation Product Dimensions B-Tech Contact Details Installation Safety Instructions Caution: This mount is intended for use only with the maximum weights indicated. Use with equipment heavier than the maximum indicated may result in instability causing possible injury. Do not attempt to install this product until all instructions and warnings have been read and properly understood. - Page 3 B-Tech AV Mounts 建议本产品由专业AV安装人员或其他合格人员安装。 B-Tech AV Mounts 及它的代理商、经销商不对由于 不恰当的安装而造成的损失或伤害负责。 本产品必须安装在合适的架构上，并仅用于不超过所标示的最大承重。 Společnost B-Tech AV Mounts doporučuje provést instalaci tohoto produktu instalátora AV či jinak způsobilé osoby. Společnost B-Tech AV Mounts, její distributoři a prodejci nenesou prostřednictvím odborného odpov ědnost za škody nebo zranění...
- Page 4 BT7852 Parts List Please keep this for future reference Item Description Swivel Adaptor M8 x 60mm Hex Screw M8 x 6mm Hex Grub Screw 4AF Hex Key 5AF Hex Key Suitable for loads up to 70kg (154lbs)
-
Page 5: Installation Instructions
Installation Instructions Attach Top Pole To The Swivel Adaptor i. Place a 050mm pole (sold separately) into the top of item 1 and align the Security Security Screw Holes. Screw Hole Use item 2 to secure item 1 to the pole. ii. -
Page 6: Typical Installation
Typical Installation The BT7852 is compatible with the System 2 range of professional install products from B-Tech. Suitable for pole mounting from the ceiling or floor. BT7822 Ceiling Plate BT7850-100 Pole BT7852 Swivel Adaptor Cable management Warning! BT7850-050 Ensure there is enough slack Pole in the cables to accommodate the bracket’s swivel. - Page 7 BT7852 Dimensions Please keep this for future reference Top View 35.7mm 1.41in Rear View Side View 35.7mm 1.41in 35.7mm 1.41in These instructions are intended as a guide only and B-Tech accepts no liability for the accuracy of the information contained in this document.
- Page 8 BT7852 Contact: info@btechavmounts.com ©2023 B-Tech AV Mounts Co. Ltd. All rights reserved. B-Tech AV Mounts is a division of B-Tech AV Mounts Co. Ltd. B-Tech AV Mounts and the B-Tech logo are registered trademarks. All B-Tech images and symbols are exclusive property of B-Tech AV Mounts Co. Ltd. All other brands and product names are trademarks of their respective owners.
