Summary of Contents for Quxas LP-N110W

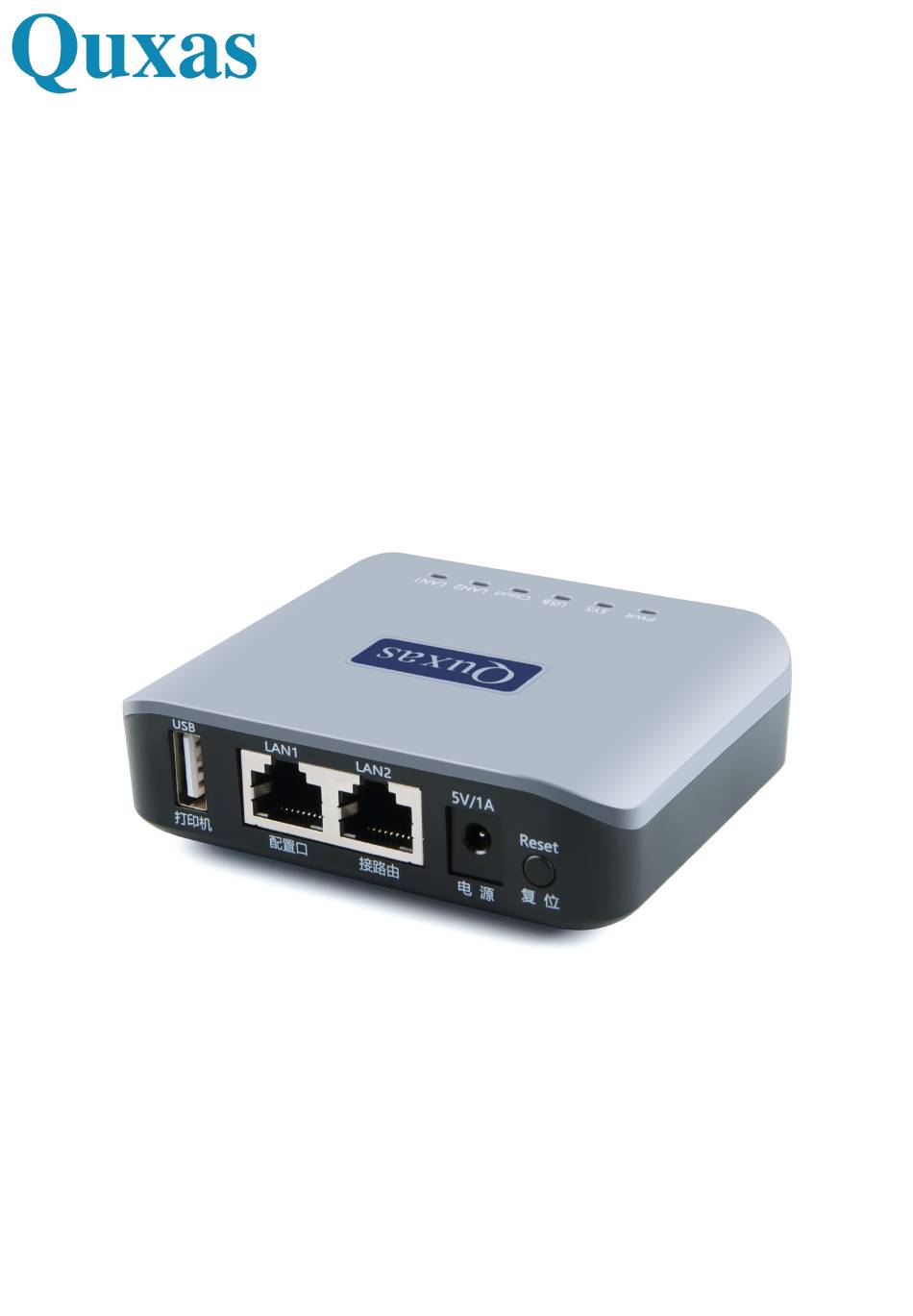

- Page 1 Quxas Print Server LP-N110W Instruction Manual Official website:www.quxas.com Technical email:support@quxas.com...
-
Page 2: Table Of Contents
User Manual Contents User Manual Contents......................1 I.Product Introduction......................2 II.Product Specifications.....................2 III.Product Display......................3 IV.Product Packaging Details.....................3 V.System Requirements.....................3 VI. Hardware Installation....................4 VII.Configure Print Server to Connect to the Local Network..........4 1.Configure Wired Network Connection................4 2.Configure Wireless(WiFi) Network Connection...............4 VIII.Add Printer to Computer....................7 1. -
Page 3: I.product Introduction
I. Product Introduction 1.1 Product Introduction The Quxas Print Server enables traditional USB printers to become network printers, allowing multiple computers to print using the same printer within the same network. This enhances printing efficiency and convenience. The print server is compatible with over 90% of printers. -
Page 4: Iii.product Display
III.Product Display IV.Product Packaging Details Print Server*1 Power Adapter*1 Power Cord*1 Ethernet Cable*1 User Manual*1 V.System Requirements The print server is compatible with Windows, Linux, and macOS operating systems. It requires the printer to have the corresponding drivers for these systems. -
Page 5: Hardware Installation
VI. Hardware Installation Retrieve the print server and its power adapter. Connect the power adapter to the print server, then use a USB data cable to connect the printer to the USB port on the print server. VII.Configure Print Server to Connect to the Local Network The print server can be connected to the network either through a wired or wireless connection. - Page 6 ② 2.2.Enter the key "admin" in the key box and click "Login. 2.3.Click the Wi-Fi Setup Wizard in the navigation bar and click the "Start" button.
- Page 7 2.4.After clicking "Start," select the desired Wi-Fi network from the search results. Enter the password for the selected Wi-Fi in the Wi-Fi key box and click the "Submit" 2.5. button. 2.6. After clicking "Submit," the print server will save, reboot, and configure the Wi-Fi parameters.
-
Page 8: Viii.add Printer To Computer
1.1.Download and open the installation tool from the Quxas official website. Official website: www.quxas.com 1.2.Open the installation tool,Select "Local Print" and click "Next." 1.3. The installation tool will search for Quxas print servers in the local network. Choose the print server from the search results and click "Next."... - Page 9 1.4. The installation tool automatically prints the printer model of the server, detects and matches the corresponding driver for the identified model, selects the printers to be installed, and then clicks "Install Now" for immediate installation. Note: If the installation tool cannot match the printer driver corresponding to the printer model, you will need to download the printer driver manually and then proceed with the installation using the "Add Printer"...
- Page 10 1.6. Once the tool completes the printer addition, perform a test print. If the test page prints successfully, the printer setup is complete. 1.7. The usage of connecting the printer directly to the computer is the same as connecting through the printer. After opening the document to be printed, click on print, select the new printer added through the installation tool in the printer options, and then print.
-
Page 11: Manual Addition Of Printer On Windows
2.Manual Addition of Printer on Windows 2.1. For Windows 10 and earlier systems, open the control panel, navigate to "Devices and Printers," click "Add a printer," and then click "The printer I want isn't listed." Note: For Windows 11, go to the system "Settings," click "Bluetooth & devices,"... - Page 12 2.3.Select to create a new port, choose Standard TCP/IP Port, and click "Next." 2.4. Input the IP address of the print server in the Hostname or IP address box, customize the port name (optional), uncheck "Query the printer and automatically select the driver to use,"...
- Page 13 2.5.Wait for the detection of the TCP/IP port, approximately 30 seconds. 2.6 Choose "Custom," and click "Next" (no need to configure the parameters in "Settings").
- Page 14 2.7.If the computer previously installed the printer driver, select the brand and model of the printer from the list, and click "Next." Note: If the computer has not installed the printer driver before, refer to steps 2.10 and beyond for further instructions. 2.8.Optionally, customize the name of the printer, and click "Next."...
- Page 15 2.9. After completing the addition, print a test page to verify the settings. If the test page prints successfully, click "Finish," indicating successful addition of the printer. 2.10. If the computer lacks the printer driver, download and install the printer driver on the computer before adding the printer.
- Page 16 ④ ⑤ ⑥ ⑦ ⑧ ⑨...
-
Page 17: Add A Printer To A Macos Computer
Select "Add IP Printer" option ① ,In the address field, enter the IP address obtained after the Quxas print server is connected to the network ② .Choose the protocol as "HP Jetdirect-Socket" ③ .You can customize the name ④ . Click on "Use" and then... - Page 18 3.4. Select the printer model you want to install from the list, and then click the "OK" button. 3.5.Click on "Add" again.
- Page 19 3.6.For configuration, simply click on the "Skip" button. 3.7. Printer added successfully,Printer addition is complete. When printing is needed, open the document, click print, select the newly added printer, then click print. The printing process is consistent with directly connecting the printer to the computer for printing.
