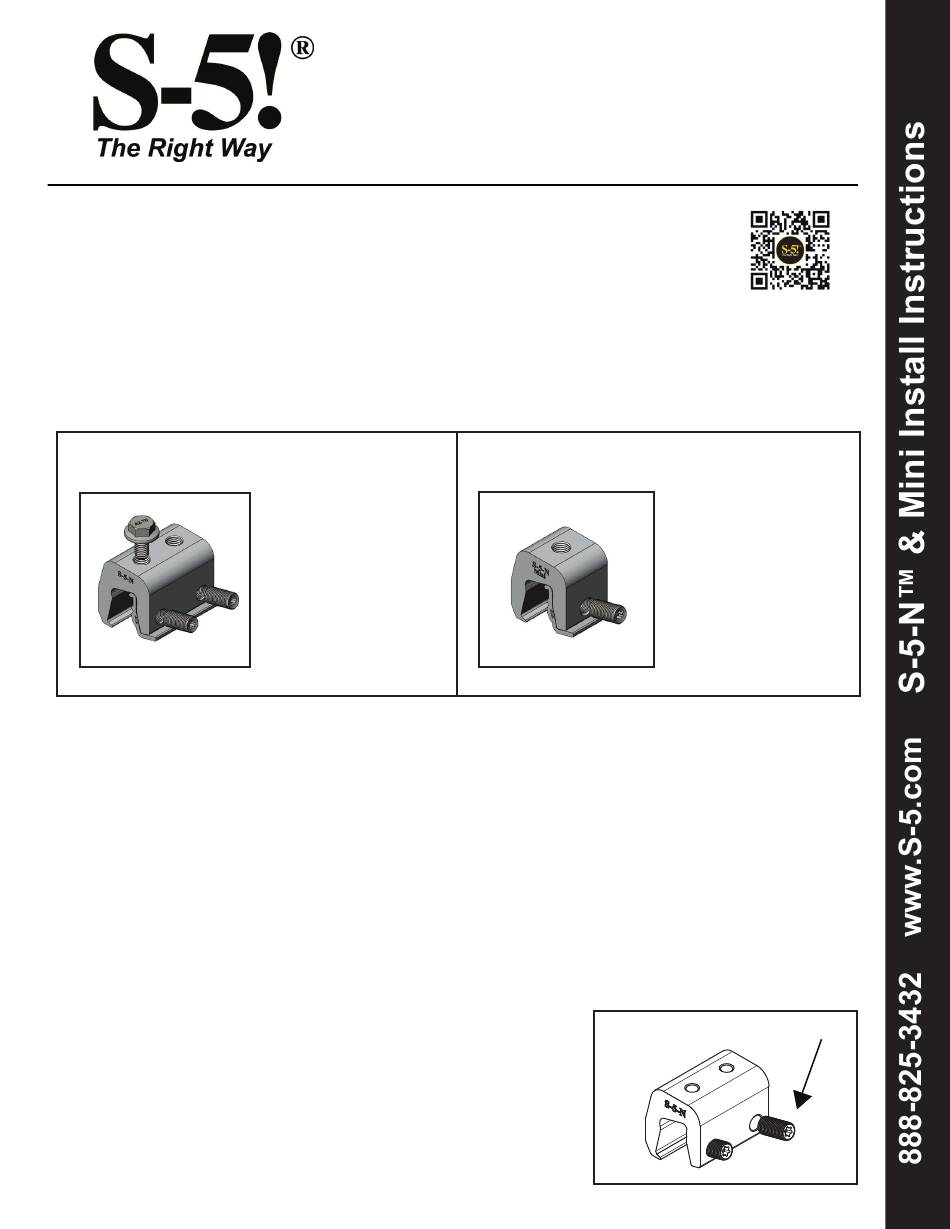

Installation Instructions
Attention! This document is a guide only. This product may not be suitable for every application. The
user is responsible for all necessary applications engineering and design. Please scan the QR code to the
right for additional information, warnings and disclaimers regarding product use.
You can also view load test results at www.s-5.com where applicable, or contact your S-5! distributor for
more information.
These instructions are for use by those experienced in the trade. Always follow appropriate safety precautions and use appropriate tools.
What's Included in Your Box
S-5-N
*Broken-box quantities may vary
Note: For the S-5-N Mini, in all applications other than a PVKIT, you will need to purchase a Hex Flange
top bolt separately.
What You'll Need for Installation
• Screw Gun
• T30 Torx Bit Tip (provided)
• Dial-Calibrated Torque Wrench
(For accurate tension values, do NOT use a clicking torque wrench; inquire with S-5!
for proper tool sourcing)
How to Install S-5-N and S-5-N Mini
1. Load the setscrew(s) into the clamp. (Fig 1)
The Right Way
Based on 1 Part
• 2 – 3/8 x .90" Setscrews
(10 mm x 23 mm)
• 1 – M8 x 16 mm Hex
Flange Bolt
• 1 – N Insert
Minor Box Qty: 30*
Master Box Qty: 120*
to attach almost anything to metal roofs!
™
S-5-N Mini
1
Based on 1 Part
• 1 – 3/8 x .90" Setscrew
(10 mm x 23 mm)
• 1 – N Insert
Minor Box Qty: 50*
Master Box Qty: 200*
Advertisement
Summary of Contents for S-5! S-5-N
- Page 1 Minor Box Qty: 30* Master Box Qty: 120* *Broken-box quantities may vary Note: For the S-5-N Mini, in all applications other than a PVKIT, you will need to purchase a Hex Flange top bolt separately. What You’ll Need for Installation •...
- Page 2 Fig 4a until both setscrews have achieved recommended torque. When installing the S-5-N Mini clamp: The seam material will compress evenly during the first tightening. 5. Attach your ancillary and tighten the bolt. For critical attachment applications, reference Table 1 for the appropriate torque.
