Summary of Contents for BestScope BWHC4-4KAF8MPA
- Page 1 Beijing BestScope Technology Co., Ltd. The BWHC4-4KAF8MPA Auto Focus HDMI/WiFi/USB Multi-outputs C- mount CMOS Camera Help Manual...
-
Page 2: Table Of Contents
Camera working in WiFi mode (AP mode) ..................... 8 Connecting multi-cameras to the router through the WiFi STA mode for the network application ... 10 Brief Introduction of BWHC4-4KAF8MPA UI and Its Functions ............... 13 XCamView UI ............................13 The camera control panel on the left or right side of the video window ..........13 The Measurement Toolbar on top of the video window .............. -
Page 3: Bwhc4-4Kaf8Mpa Camera Application

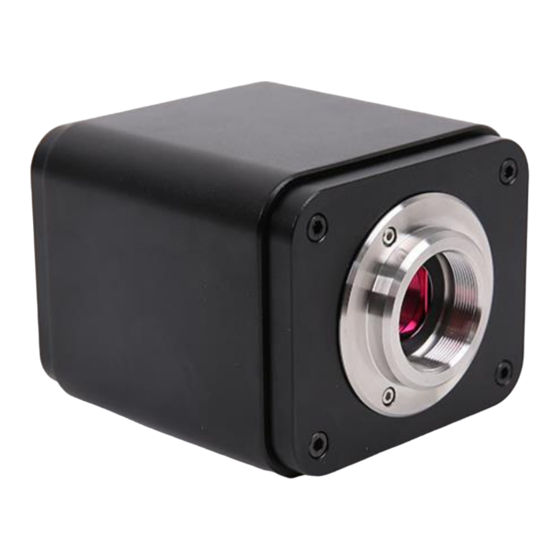

Beijing BestScope Technology Co., Ltd. BWHC4-4KAF8MPA Camera Application Figure 1 The BWHC4-4KAF8MPA Camera BWHC4-4KAF8MPA is a camera that includes multiple modes of output (HDMI/WiFi/USB). It uses ultra-high- performance CMOS sensor. The camera can be directly connected to an HDMI display, or it can be connected to a... -
Page 4: Bwhc4-4Kaf8Mpa Camera Datasheet And Functions
Beijing BestScope Technology Co., Ltd. BWHC4-4KAF8MPA Camera Datasheet and Functions G Sensitivity Sensor Output Order Code Sensor & Size(mm) Pixel(μm) Binning Exposure(ms) Dark Signal (FPS/Resolution) Sony IMX678(C) 3541mv with 1/30s BWHC4-4KAF8MPA 2.0x2.0 60@3840*2160 0.019~1000 1/1.8"(7.68x4.32) 0.15mv with 1/30s Camera Model Video Saving(FPS/Resolution) HDMI2.0(FPS/Resolution) - Page 5 Beijing BestScope Technology Co., Ltd. White Balance Auto White Balance Color Technique Ultra-Fine Color Engine Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Capture/Control SDK Twain, etc) Recording System Still Picture or Movie Microsoft® Windows® 8 / 8.1 / 10 / 11(32 & 64 bit)
-
Page 6: Dimension Of Bwhc4-4Kaf8Mpa Camera
Beijing BestScope Technology Co., Ltd. Dimension of BWHC4-4KAF8MPA Camera Figure 3 Dimension of BWHC4-4KAF8MPA 4 / 31... -
Page 7: Bwhc4-4Kaf8Mpa Camera Packing Information
Beijing BestScope Technology Co., Ltd. BWHC4-4KAF8MPA Camera Packing Information Figure 4 BWHC4-4KAF8MPA Camera Packing Information Standard Packing List Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.7Kg/ box) BWHC4-4KAF8MPA Camera Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC... -
Page 8: Bwhc4-4Kaf8Mpa Camera Configurations
Beijing BestScope Technology Co., Ltd. BWHC4-4KAF8MPA Camera Configurations You can use the BWHC4-4KAF8MPA camera in 4 different ways. Each application requires different hardware environment. Camera working standalone with built-in XCamView software For this application, apart from the microscope, you only need an HDMI monitor, the supplied USB mouse, and the... -
Page 9: Connecting Camera To Computers With Usb3.0 Port
XCamView UI, different control panel or toolbar will pop up and users could operate with the mouse at ease. Figure 6 XCamView And BWHC4-4KAF8MPA Camera in HDMI Mode Connecting camera to computers with USB3.0 port For Windows user (Windows 8/10/11 (32/64 bit)), please use ImageView. -
Page 10: Camera Working In Wifi Mode (Ap Mode)
Camera List group to start the live video as shown in Figure 7. Figure 7 View and BWHC4-4KAF8MPA Camera in USB Mode Camera working in WiFi mode (AP mode) Please make sure your PC is WiFi enabled. - Page 11 Start ImageView software or ImageView App and check the configuration. Normally, the active BWHC4-4KAF8MPA camera will be automatically recognized. The live image of each camera is shown in Figure 9. For the display, the Camera List group is used in...
-
Page 12: Connecting Multi-Cameras To The Router Through The Wifi Sta Mode For The Network Application
Connecting multi-cameras to the router through the WiFi STA mode for the network application Multi BWHC4-4KAF8MPA cameras are connected to router through the WiFi STA mode, and the user can control the HDMI camera on the computer or mobile device through WiFi. - Page 13 HDMI graphics interface will display“STA Mode”; F inally, as shown below, 4 BWHC4-4KAF8MPA cameras are connected to the same router with WiFi STA mode (The number of the cameras is determined by the router performance).
- Page 14 Beijing BestScope Technology Co., Ltd. Figure 11 View and BWHC4-4KAF8MPA Camera in WiFi STA mode 12 / 31...
-
Page 15: Brief Introduction Of Bwhc4-4Kaf8Mpa Ui And Its Functions
Beijing BestScope Technology Co., Ltd. Brief Introduction of BWHC4-4KAF8MPA UI and Its Functions XCamView UI BWHC4-4KAF8MPA UI shown in Figure 6 includes a Camera Control Panel on the left of the video window, a Measurement Toolbar on the top of the video window and a... -
Page 16: The Measurement Toolbar On Top Of The Video Window
Beijing BestScope Technology Co., Ltd. illumination, there will be no fluctuation in light source so no need for compensating light flickering AC(50HZ) Check AC(50HZ) to eliminate flickering caused by 50Hz illumination AC(60HZ) Check AC(60HZ) to eliminate flickering caused by 60Hz illumination... -
Page 17: Icons And Functions Of The Synthesis Camera Control Toolbar At The Bottom Of The Video Window
Beijing BestScope Technology Co., Ltd. Delete all the measurement objects Exit from Measurement mode When the measurement ends, left-click on a single measuring object and the Object Location & Properties Control will show up. User could move the object by dragging the object with the mouse. But more accurate movement could be done with the control bar. - Page 18 Beijing BestScope Technology Co., Ltd. Figure 14 Browsing UI There are two browsing modes: List mode Thumb mode. The default is Thumb mode. Right click on an empty area to create a new folder. Right click on an image file to Copy, Cut, Rename, Delete, Video Compare, and view detailed information(Details).
- Page 19 Beijing BestScope Technology Co., Ltd. picture to Gray Scale, Invert, Highlights, Binary, Filter Color, Extract Color, Auto Level, Auto Contrast, Histogram, Histogram Equalization, Flip, and other image processing functions, and then after the processing is completed, you can choose reset to revert back to the original picture, and also you can choose save or save as in the lower sidebar of the picture.
-
Page 20: Settings>Network>General
Beijing BestScope Technology Co., Ltd. 6.4.2 Settings>Network>General Figure 16 Comprehensive Network General Settings Page Name The current camera name recognized as the network name 6.4.3 Settings>Network> WiFi Figure 17 Network Setup Wi-Fi Mode AP/STA mode to select; Channel/SSID Channel for the... -
Page 21: Settings>Magnification
Beijing BestScope Technology Co., Ltd. Edge Detection Select whether to enable the automatic edge search function and set the detection range; Font Size The font size of measurement data can be divided into three types: large, Middle, and Small; Cursor Select whether the cursor is a single crosshair and set the color of the single cross;... -
Page 22: Settings>Video
Beijing BestScope Technology Co., Ltd. Method Layered Mode: The measurement objects are saved in different layer with current image data in the target file. User could edit the measurement objects in the target file with some software on the PC. This mode is reversable. -
Page 23: Settings>Time
Beijing BestScope Technology Co., Ltd. Figure 23 Comprehensive Setting of Files Name Image or Video File Name Provide Auto Manual naming paradigm for Image Video file; Paradigm Auto With specified name as the Prefix XCamView will add digital after the... -
Page 24: Settings>Edf
Beijing BestScope Technology Co., Ltd. Select the Metering mode as the Central Weighted Average Metering, Evaluative Metering, Partial Metering, or Spot Metering Mode Metering; WB ROI Color Choosing the rectangle line color and whether it is synchronized display as Camera Control Panel;... -
Page 25: Settings>Miscellaneous
Beijing BestScope Technology Co., Ltd. Portuguese Set language of the whole software into Portuguese; 6.4.14 Settings>Miscellaneous Figure 28 Comprehensive Miscellaneous Settings Page Ruler Select to display the ruler in the video window, otherwise not to display the ruler. You can choose the ruler color;... -
Page 26: Focus Region In The Video Window
Beijing BestScope Technology Co., Ltd. Focus Region in the Video Window Figure 29 Focus Region Focus Region is used for selecting the region of interest for Auto Focus operation. When user clicks the button on the Synthesis Camera Control Toolbar, the... -
Page 27: Bwhc4-4Kaf8Mpa Camera Af + Edf Function Description
Beijing BestScope Technology Co., Ltd. BWHC4-4KAF8MPA Camera AF + EDF Function Description AF + EDF is a new function that combines the camera's unique focus function with EDF. Users can focus on different areas in high-magnification scenes, and then fuse their respective clear areas to finally obtain a large depth-of-field image. - Page 28 Beijing BestScope Technology Co., Ltd. Figure 31 Cell Slice EDF Effect 26 / 31...
- Page 29 Beijing BestScope Technology Co., Ltd. Figure 32 Insect Wings Slice EDF Effect Figure 33 Circuit Board EDF Effect 27 / 31...
- Page 30 Beijing BestScope Technology Co., Ltd. Figure 34 Artifact EDF Effect 28 / 31...
-
Page 31: Contacting Customer Service
Beijing BestScope Technology Co., Ltd. Contacting Customer Service Please contact your local distributor if you have any questions about the product. 29 / 31...
