Summary of Contents for AES IntelliNet 2.0 7207

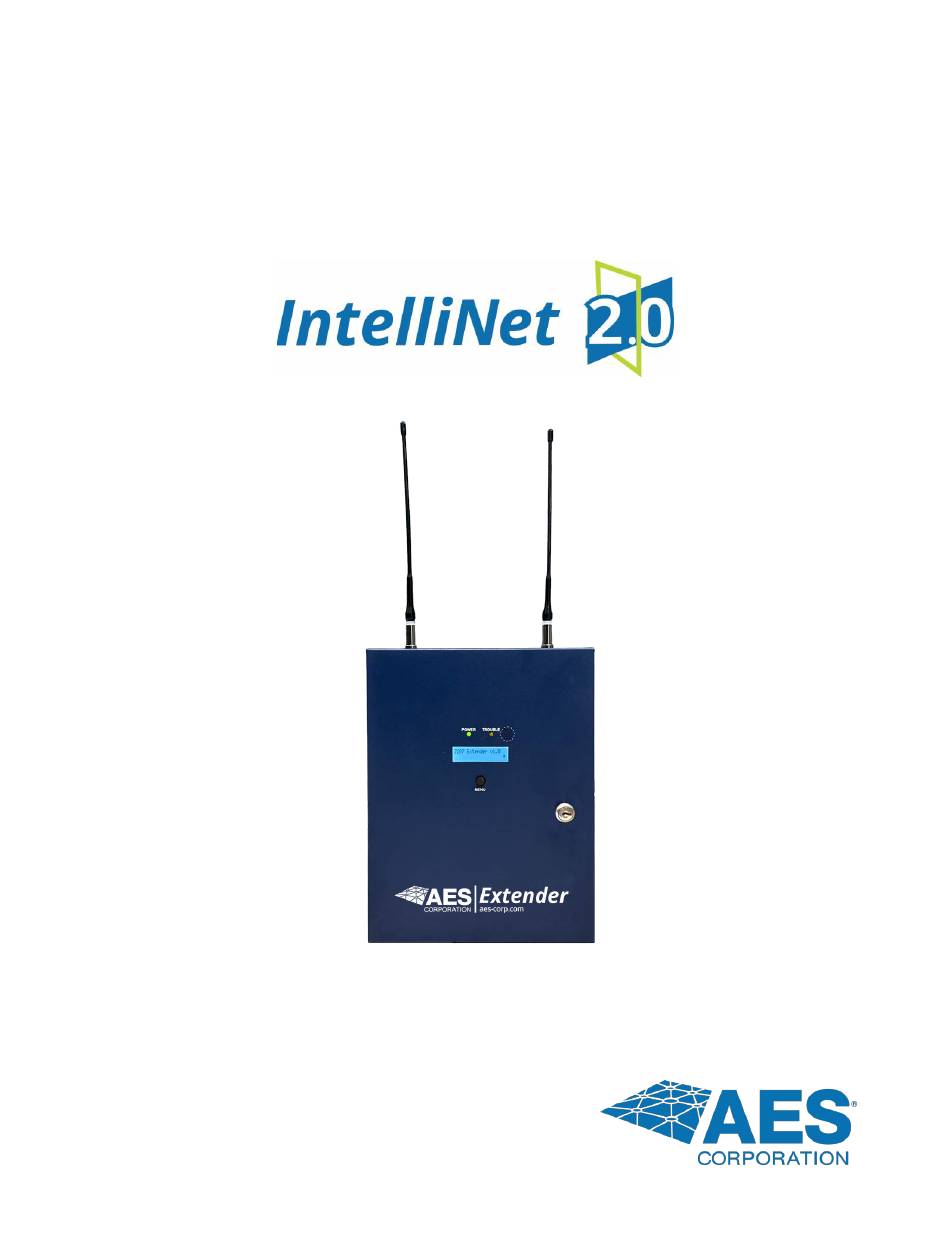

- Page 1 AES 7207 RF Extender AES 7207 RF Extender Installation and Operation Manual AES Corporation 285 Newbury Street Peabody, MA 01960 USA Tel (978) 535-7310 • Fax (978) 535-7313 www.aes-corp.com Copyright © 2023 AES Corp. All Rights Reserved Part No. 40-7207 Rev. A1, 3/18/2024...
-
Page 2: Table Of Contents
AES 7207 RF Extender Table of Contents Safety Considerations......................... 4 Technical Specifications ....................4 Pre-Installation ........................ 5 Equipment List......................... 5 Mounting ......................... 5 RF Extender Location ....................5 Antennas........................5 Requirements ........................5 Environmental ......................5 Electrical Supply ......................5 Power Options ...................... - Page 3 Table of Contents (Cont.) System Firmware ......................13 Restart System......................13 Testing .......................... 13 Maintenance ......................... 13 Troubleshooting ......................13 Repair Information ......................13 Battery Replacement Instructions .................. 13 AES Corp. Contact Information ..................14 Warranty........................15 Part No. 40-7207 Rev. A1, 3/18/2024...
-
Page 4: Safety Considerations
• Periodically test the system for proper operation. AES assumes no responsibility for the equipment’s failure to operate. AES's sole responsibility is to repair or replace any AES device found to be defective during the warranty period. •... -
Page 5: Pre-Installation
A fire alarm installation that complies with UL 864 using the 7207 RF Extender must be located where a NetCon of 5 is present. A check of the location can be done with the AES Network Connectivity Tool (NCT). The AES NCT provides a quick means for verifying NetCon or finding suitable locations for RF Extender installation. -
Page 6: Battery Size
Warning! install the RF Extender unit during a lightning storm. Important ! Verify AES mesh network connectivity for the RF Extender before installing the RF Extender enclosure. Water Damage Prevention To prevent water damage, take the following precautions when mounting the unit: •... -
Page 7: Removing The Mainboard
AES 7207 RF Extender Dimensions 13 in 4.5 in 7.75 in 11.5 in 10 in (33 cm) (11.4 cm) (19.7 cm) (29.2 cm) (25.4 cm) Figure 1. Enclosure Mounting – Hole Location and Sizes Important! Use knockout plugs to close any unused conduit holes in the enclosure. -
Page 8: Wiring
AES 7207 RF Extender Step 5: Apply jumper cables and check connections are tight *VHF Subscriber Additional Step If subscriber communicating to extender is on VHF network. There is alternate antenna being utilized on subscriber that needs to be swapped on site as well. -
Page 9: Secondary Power Wiring
Due to the test cycle time, up to 60 seconds can pass before the fully charged battery is recognized. 5. Compatibility and System Configuration Compatibility All AES products are compatible and have been tested to be compliant with UL 864 and UL 2610 are limited to the following: Model Number Type... -
Page 10: System Configuration
AES 7207 RF Extender 7707 Fire 7007 Burg 7177 Hybrid 7170 IP Link System Configuration Figure 3. Trouble Output • Annunciator – An integrated onboard annunciator on the front enclosure cover. View 7207 RF Extender Software Version The 7207 software version is visible in the LCD. -
Page 11: Power Status
In this case, MAIN power is not connected. Traffic indicators Step 1: Packet traffic is shown on the LCD as below: Packet from local radio to AES network: OUT -------->>> Packet from AES network to local radio: IN <<<-------- Part No. 40-7207 Rev. A1, 3/18/2024... -
Page 12: Off-Normal Operation
AES 7207 RF Extender In addition to the LCD, there are LEDs on the main board inside the enclsoure that indicate traffic activity. The green LEDs indicate reception of a packet and the yellow LEDs indicate transmission of a packet. The blinking red LED indicates the 7207 firmware is running. -
Page 13: System Firmware
Note: No user serviceable components are located on the circuit boards. Defective circuit board units must be Warranty returned to AES. For information on returning units, see the AES Service Procedure under on page 15. 10. Repair Information Other than the backup battery, no user serviceable parts are located in the 7207 RF Extender. -
Page 14: Aes Corp. Contact Information
12. AES Corp. Contact Information AES Corporation 285 Newbury Street Peabody, Massachusetts 01960 USA Website: http://www.aes-corp.com AES corporate Phone: (800) 237-6387 (800) AES-NETS USA (978) 535-7310 Fax: USA (978) 535-7313 Email: Check Website for latest email addresses Part No. 40-7207 Rev. A1, 3/18/2024... -
Page 15: Warranty
Certain AES Products include software, protocols and other proprietary and confidential technology and trade secrets of AES which are incorporated in or provided with AES Products solely for use in conjunction with and in order to operate AES Products (“Licensed Technology”). AES grants the original purchaser a non-exclusive license to use such Licensed Technology solely in connection with the use and operation of AES Products and for no other purpose or use whatsoever.
