Summary of Contents for ATLANTIC ICE K2

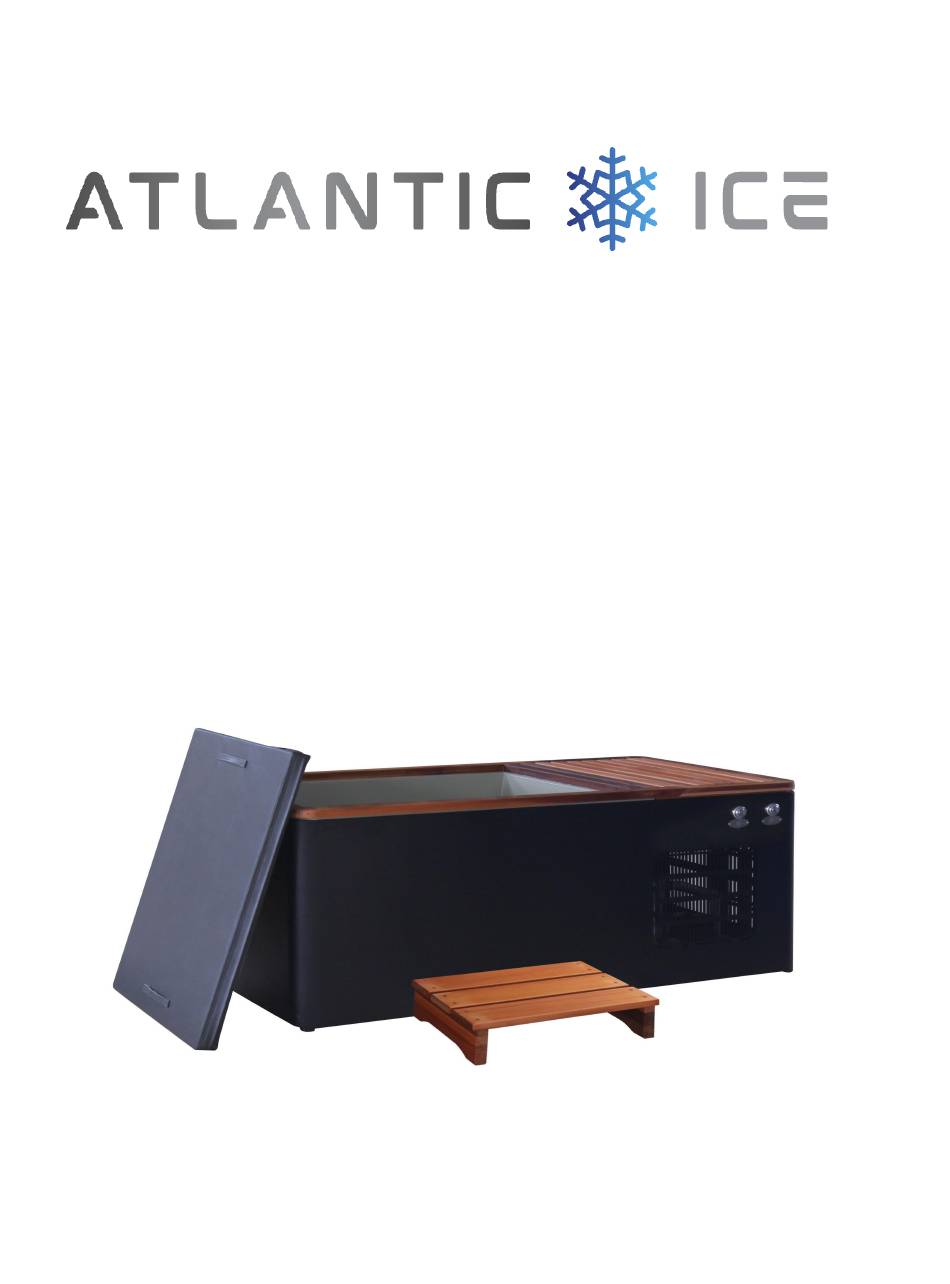

- Page 1 Operation Manual...
- Page 2 ● Easy control and operation - The K2 is very easy to operate: simply switch it on and set the desired pool water temperature. The system includes a micro-computer controller, allowing all operation parameters to be set.
- Page 3 1 Water pump switch 2 Chiller switch 3 Cover 4 Wooden bench 5 Bath 6 Drain valve Note: When the cold water bathtub is started, the water pump switch must be turned on first, and then the chiller switch. When shutting down, the chiller switch must be turned off first, and then the water pump switch First time start-up...
- Page 4 Once the set temperature is reached, the unit will switch itself off. As long as the filter pump is running, the unit will restart automatically when the temperature of the pool water raises more than 2。C below/above the set temperature. K2 Dimensions...
-
Page 5: Operation
Specification Model: K2 Hot/cold: Cold Only Chiller Minimum Temperature °C 4 - Cooling only model Cooling capacity kW 2 Running current: cooling A 10.5 Refrigerant Type - R410a Water Flow Rate M3/h 0.7 Power Supply: 230v Operation Below is the control unit... - Page 6 Once you switch the unit on the red indicator light will come on. A green indicator light will come on when the compressor has started. When switched off the screen display “OFF”, all indicators will be off. When switched on the screen display will show the inlet water temperature. When there is failure display error code On/off button: The temperature is the main function one you will need.
-
Page 7: Maintenance
Now turn press the chiller button and the machine will begin to chill the water. Chilling times can vary. Allow it to sit for some time ( 3-5 hours) to check temperature is dropping. Maintenance ● Check the water inlet and drainage often. The water and air inflow into the system should be sufficient so that its performance and reliability does not get compromised. - Page 8 Troubleshooting guide Incorrect installation may result in an electrical charge that could lead to death or serious injury of users,installers or others by electrical shock and it may also cause damage to chiller. DO NOT attempt to modify the internal configuration of the chiller Keep your hands and hair clear of the fan blades to avoid injury.
- Page 9 Note:Switch off the power before carrying out any maintenance or repairs IMPORTANT REMARK:if a malfunction cannot be resolved immediately, in order to analyse the problem we will need to know the message(error code) that is showing on the display controller as well as the values for the settings.
