Summary of Contents for DC AUDIO PITBULL 20K
- Page 1 Owner’s Manual HIGH PERFORMANCE AMPLIFIER...
- Page 2 DC audio amplifiers are engineered and manufactured to ensure the years of uncompromised musical enjoyment, high performance and reliability. DC Audio amplifiers are high power audio amplifiers, so very loud music can cause hearing loss and intended for using in vehicles with 12 Volt, Negative ground electrical systems.
-
Page 3: Control Panel

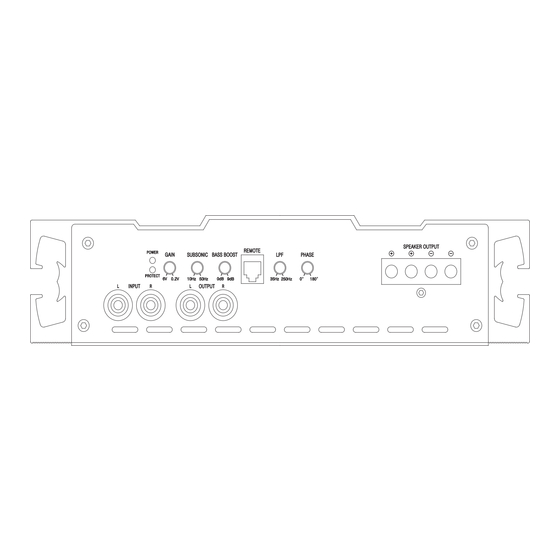

CONTROL PANEL PITBUL 20K RCA INPUTS LOW PASS FILTER ( 35Hz - 250Hz ) The RCA inputs ensure the highest quality contacts This allows you to tune the response of the amplifier and the lowest noise in your audio system. at higher bass frequencies to roll off for a seamless integration into your midbass. -
Page 4: Power And Ground Connections
Connect the +12V terminal of the amplifier to the Positive (+) terminal of the battery using 0 gauge or 4 gauge power cables. DC audio amplifiers do not have fuses, so pls use external fuses on power cables within 20cm from positive of battery Fuses and fuse holders should be adequate for the application. -
Page 5: Speaker Connections
SPEAKER CONNECTIONS Speaker Connection I PITBUL 20K 4~1 ohms PITBUL 20K Minimum working impedance is 1ohm. Minimum working voltage is 10V ~ 16Volts. 4~2 ohms Speaker Connection II PITBUL 20K 4~2 ohms... -
Page 6: Troubleshooting
In order to check the problem, You should turn all levels down and all power off and carefully check the installation for wiring mistakes or short. If DC Audio amplifiers shuts down due to excessive heat, They will be working later when it is cooled down Before removing your amplifiers, refer to the list below and follow the suggested procedures.
