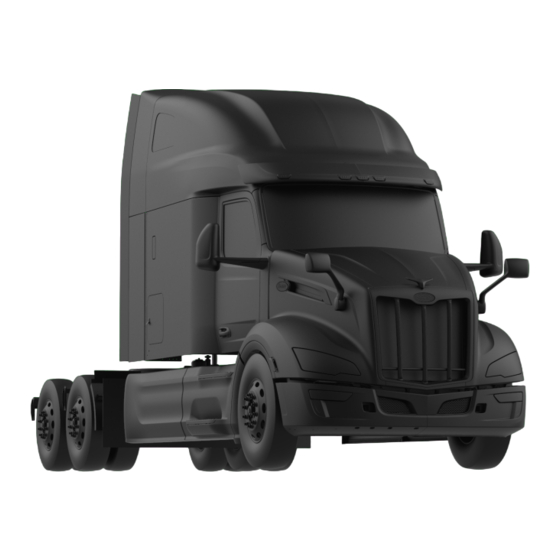

Summary of Contents for Hyliion Hypertruck ERX
- Page 1 Rev 1.0...
- Page 2 THIS PAGE IS INTENTIONALLY LEFT BLANK Hypertruck ERX Operators Manual | Hyliion.com...
- Page 3 Thank you for choosing the Hyliion Hypertruck ERX. We are proud of the advanced engineering and quality construction of each system that we build. The purpose of this guide is to enable you to operate the Hyliion Hypertruck ERX. Please read it carefully and make sure to follow all safety warnings.
-
Page 4: Other Safety Information
Lifting vehicle Please follow proper safety precautions when lifting the Hypertruck ERX. Ensure the vehicle has the parking brake applied and the wheels are chocked. The vehicle may be lifted from the axle housing, clamp group, or the frame rail. - Page 5 • It is recommended that, if possible, attempt to tow the vehicle from the rear of the truck. If the vehicle must be towed with rear wheels on the Inverter ground, see page 27 for a detailed towing procedure. The procedures listed must be followed to prevent damage to the Hypertruck ERX. Converts AC power to DC power and vice-versa.
- Page 6 This increases • Attach the second jumper cable first to the negative terminal of the (good) battery, then attach the other end to bare metal on the Hypertruck ERX. the effective range of the vehicle and reduces wear on •...
- Page 7 Illuminated if RBS is not Illuminated if there is an issue Illuminated if there is an issue Illuminated when the truck is functioning properly with with the thermal systems with with the generator limiting performance (derating) Hypertruck ERX Operators Manual | Hyliion.com...
-
Page 8: System Overview
1. Warning: Provides notification of a minor issue with the system. The system overview screen provides more information on the individual components of the Hyliion system and highlights the 2. Alert: Provides notification of a major issue with the system. Requires immediate attention. - Page 9 Low-voltage disconnect: Controls the connection of Hyliion system low-voltage components to the battery system. When in the "off" position, it The settings screen provides prevents the electronic components from draining the 12V battery. Located under the driver's seat.
- Page 10 Figure 8: Manipulating the HVIL Disconnect Do NOT disconnect the HVIL while the vehicle is powered on or charging. Failure to comply may result in damage to the vehicle, injury, or death Figure 7: Removing the MSD Hypertruck ERX Operators Manual | Hyliion.com...
-
Page 11: Driving Procedure
The Co-Pilot device is the main source of interaction with the Hyliion system while driving. When powering on the vehicle the user will Before driving the vehicle, please follow the procedure below. automatically be directed to the Hyliion Co-Pilot home screen. The Co-Pilot provides the input for selecting the three drive modes: Automatic, •... - Page 12 • After a prolonged storage period 12V battery may be depleted. If so, follow jump-start procedure to power 12V. • After a storage period of 3 months or longer, battery SOC needs to be recalibrated. Contact Hyliion for a recalibration of the...
- Page 13 Hyliion MY23 Hypertruck ERX Maintenance Intervals System Tasks Interval Service Actual completed by date completed milage/hrs...
- Page 14 Confirmation that the transmission is in the neutral position should be identified by the SCM, refer to the latest controls integration document DOC0039890 for additional information. HV system coolant Shell Rotella ELC NF 50/50 Hypertruck ERX Operators Manual | Hyliion.com...
- Page 15 12 for enlarged view. Thread adhesive (e.g. Loctite 242) should be applied to fastener threads before assembling. Fastener torque to 32±3 Nm [21-26 ft-lbf]. ® Hypertruck ERX Operators Manual | Hyliion.com...
- Page 16 • Clean the area surrounding the fill plug and remove the plug. torque • Fill with oil up to the bottom of the oil port (~1L) • Reinstall the fill plug and torque to 35±4 Nm Hypertruck ERX Operators Manual | Hyliion.com...
- Page 17 11 bolts Install remaining bolts and torque Refill each wheel-end in a cross-star pattern to 85 ft.lb. with 1L of GL5 oil Hypertruck ERX Operators Manual | Hyliion.com...
- Page 18 THIS PAGE IS INTENTIONALLY LEFT BLANK Hypertruck ERX Operators Manual | Hyliion.com...
- Page 19 Hyliion.com | Copyright ©2023 Hyliion...
