Contemporary Controls BASGE-EN902 Installation Manual

EnOcean to BACnet Gateway
902 MHz (North American Version)
The EnOcean to BACnet Gateway provides the systems integrator with a
flexible building block when integrating EnOcean wireless devices to
BACnet/IP networks or expanding the number of EnOcean points in an
existing building automation system. Thanks to virtual routing technology,
our gateway seamlessly discovers and connects to EnOcean devices and
makes them appear as individual BACnet-compliant devices. The
gateway creates a set of BACnet objects, specific for each EEP, and
decodes the received EnOcean data into standard BACnet objects, such
as analog-inputs for temperatures, humidity, light levels, etc. and
multistate objects for EnOcean values that represent multiple states, for
easy integration to BACnet system - saving the head-end from decoding
the transmitted EnOcean data.
• Bidrectional Gateway functionality between EnOcean Wireless and
BACnet/IP
• EnOcean device discovery
• Remote commissioning of link tables and configuration settings
• Each EnOcean device appears as virtual BACnet device to aid in
integration
• Received EnOcean data is decoded into standard BACnet objects
No external tools required for configuration
•
Installation
Power Connection
The EnOcean to BACnet Gateway requires 24 VAC or 24 VDC while drawing no more than 6 VA of
power. The recommended conductor size is 16–18 AWG. COM is directly connected to zero volts

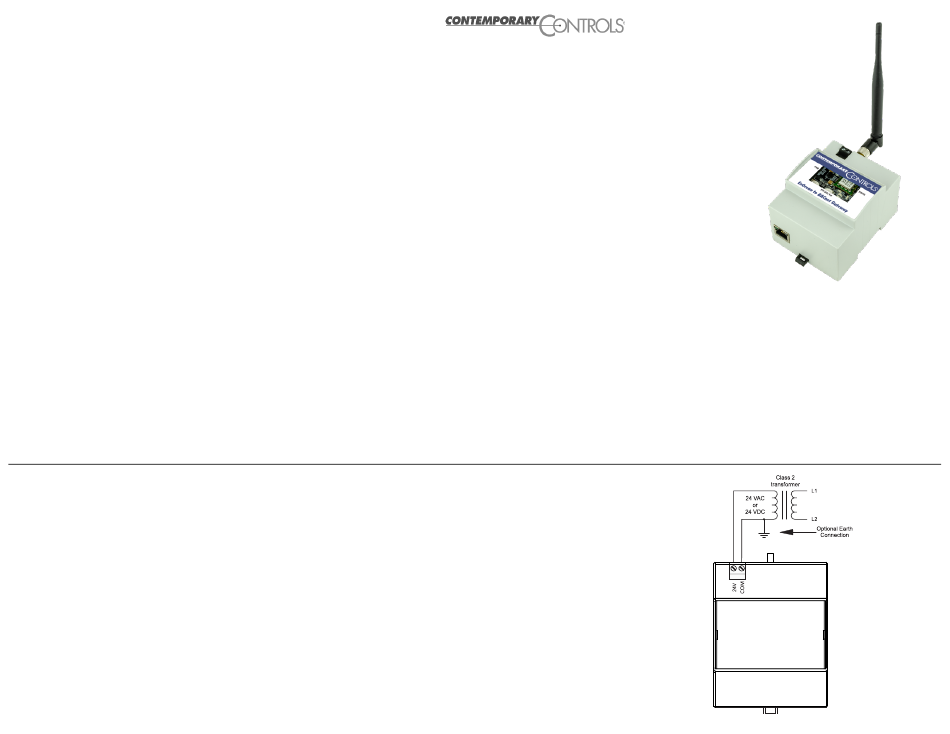

and the chassis is DC isolated from zero volts. Input connections are reverse-polarity protected. See

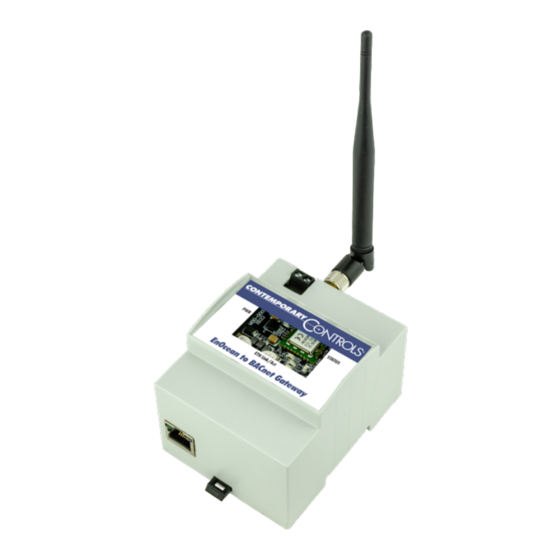

figure for power options. The SMA connector supports a stick antenna (as shown in the product
image) or an antenna with 2 m cable for mounting the antenna outside the control cabinet.
WARNING: Internally, this device utilizes a half-wave rectifier and therefore can only share the
same AC power source with other half-wave rectified devices. Sharing a common DC power source
is also possible. Sharing AC power with full-wave rectified devices is NOT recommended. Devices
powered from a common AC source could be damaged if a mix of half-wave and full-wave rectified
devices exists.
Installation Guide
Electrical (Class 2 Circuits Only)
INPUT DC
Voltage (±10%): 24 V
Power: 3 W
Frequency: N/A
Environmental
Operating temperature: 0°C to 60°C
Storage temperature: –40°C to +85°C
Relative humidity: 10–95%, non-condensing
Functional Physical Layer
Ethernet: 10BASE-T, 100BASE-TX
EnOcean: 902MHz
Cable length limit: 100 m
EnOcean distance: 30 m typically inside buildings
Ethernet LED: flashing = activity at 10Mbps or 100Mbps
Antenna (sold separately)
BASGE-ANT902: EN902 stick antenna: 50 ohm, gain 0.86 dBi, efficiency 25%
BASGE-ANT902-2M: EN902 antenna w/ 2 m cable: 50 ohm, gain 0.68 dBi, fficiency 55%
Safety Information
FCCID: 2AU57BASGE-EN902
IC: 31004-BASGEEN902
BASGE-EN902
AC
24 V
6 VA
47-63 Hz
