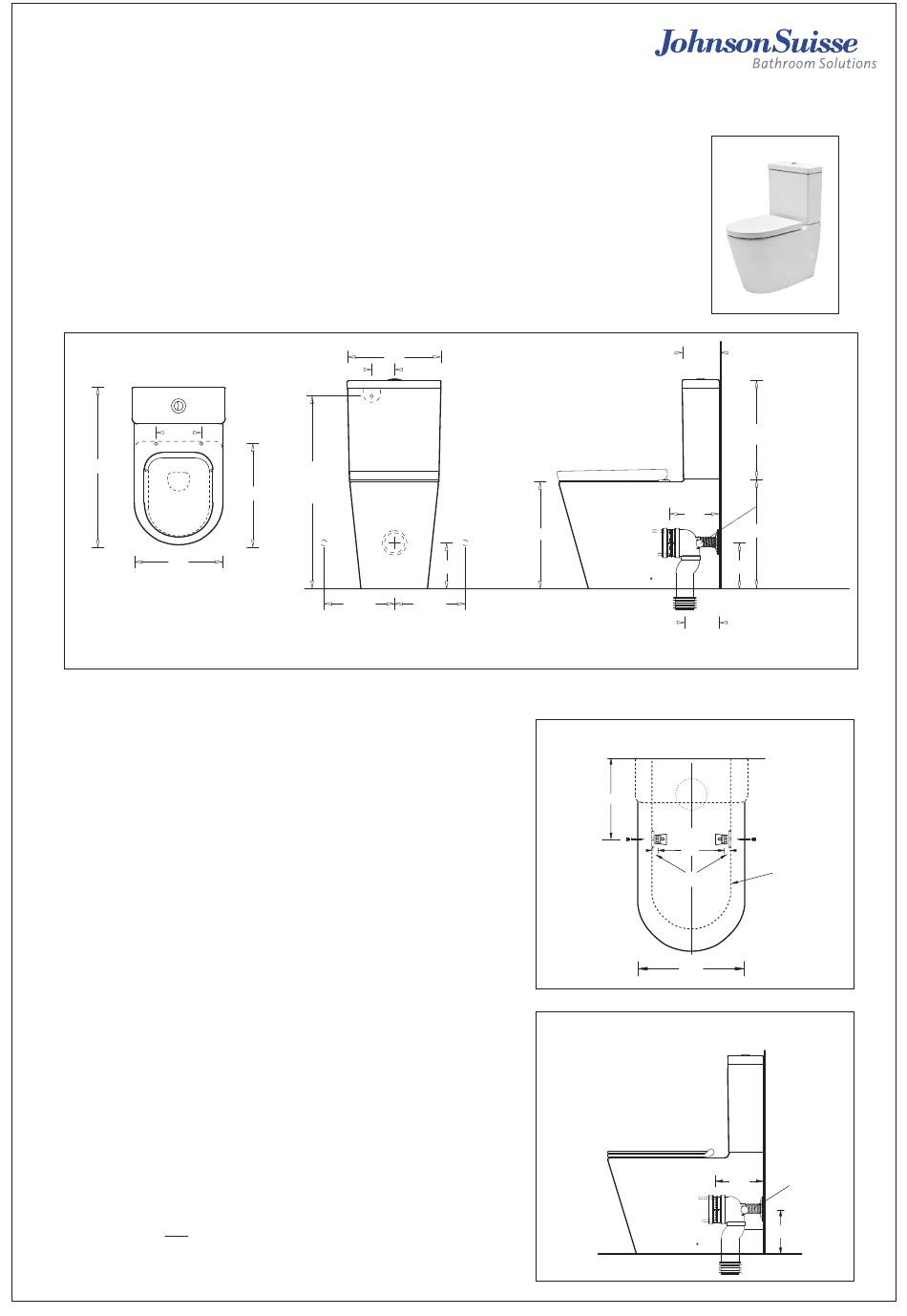

JohnsonSuisse Venezia JTTV301.J2371 Installation Instructions

INSTALLATION INSTRUCTIONS
Johnson Suisse Venezia Rimless FTW Suite
Code JTTV301.J2371
DESCRIPTION
The Venezia suite is a fully concealed, rimless flush to wall suite.
The suite is supplied with an adjustable S Trap connector fitting that permits a 90-190mm set out range.
For greater set out (190-225mm) alternative connector (Code X011B) is needed.
The suite can also be connected in a P Trap configuration (fittings not supplied).
The water inlet is back entry with optional bottom entry and adjustable for left or right side available.
The cistern is bolted to the pan from inside the cistern tank and can be removed if necessary for servicing.
The suite has a soft close seat that is attached via top-fixed bolts. The seat is removable for cleaning.
Floor fixing brackets are provided.
185
660
355
INSTALLATION STEPS
1. I nspect pan, cistern and seat for any transit damage before starting
installation.
2. C heck site roughing in, cistern tap position and assembly
dimensions before starting installation. The WC must be installed
on a level surface.
3. Place the pan in position ensuring it is aligned with the centreline of
the sewer connection.
holes.
4. Remove pan and locate the position of the floor brackets 25mm in
from the external edges of the pan side. Drill the holes (10mm) to
attach the floor fixing brackets.
5. For S Trap installation cut the threaded bracing prop on the pan
connector elbow to the correct length to suit the set out.
pan connector fitting to the correct length(265mm from wall) and
height(180mm from floor) to suit the job. Install the connector and
screw the bracing prop to the back wall.
connection fit with the pan fully back against the wall.
6. For P Trap installations a pan connector and extension will be
required.
7. Fit the threaded cistern fixing inserts into the holes in the cistern
platform of the pan
( DIAGRAM 3)
9. Move the pan back into position ensuring it seals with the pan
connector.
10. Fit the screws into the floor fixing brackets and affix decorative caps.
A waterproof sealant may be applied to the pan base.
Note - if mortar bedding is required use a 4:1 sand and standard
cement mix (do not use Rapid Hardening Cement). If the floor is
tiled, cut out the tiles beneath the pan to create a good bonding
surface.
390
115
BACK-ENTRY
WATER INLET
HEIGHT
420 775
225*
*RECOMMENDED WATER INLET
LOCATION FOR BOTTOM
ENTRY OPTION
Mark the location of the pan fixing bolt
(DIAGRAM 1)
Check the outlet
(DIAGRAM 2)
440
180*
225*
DIAGRAM 1
Cut the
DIAGRAM 2
1/3
155
400
L/R side access hole
for bottom water inlet
200
450
180
90-190
OR
190-225
WITH OPTIONAL X011B CONNECTOR
285
Drill 10mm
Pan fixing bolt
fixing holes
200
OUTLINE OF
25mm gap from FOOT OF PAN
outline to bracket
355
200
185
BRACING
PROP
