Mouser Electronics BeagleBoard PocketBeagle Manual

PocketBeagle USB-Key-Fob Computer
Product Overview
06-28-2022
For the most up-to-date information, visit
Description

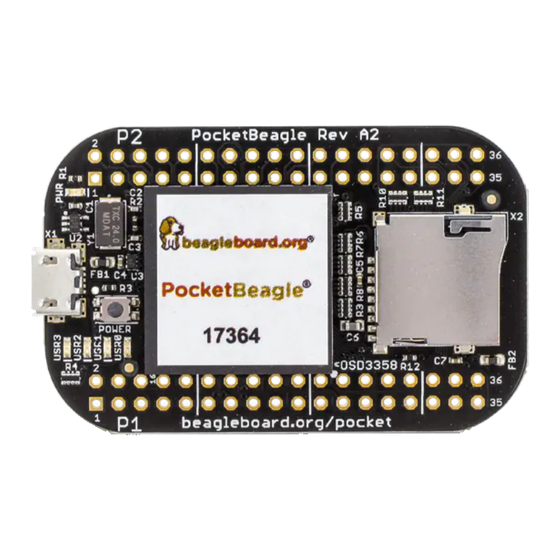

BeagleBoard PocketBeagle USB-Key-Fob Computer is an
ultra-tiny open-source development board ideal for beginners
and professionals. This device is cost-effective, easy to use
with high expansibility and a slick design.
The PocketBeagle USB-Key-Fob computer is based on new
Octavo Systems OSD3358-SM 21mm x 21mm system-in-
package that includes 512MB DDR3 RAM, 1-GHz ARM
Cortex-A8 CPU, 2x 200-MHz PRUs, ARM Cortex-M3, 3D
accelerator, power/battery management, and EEPROM. This
device includes 72 expansion pin headers with power and battery I/Os, high-speed USB, 8 analog
inputs, 44 digital I/Os, and numerous digital interface peripherals.
Features
• Texas Instruments Sitara™ AM3358 processor (Integrated in the OSD3358-SM):
• 1GHz Arm Cortex-A8 with NEON floating-point accelerator
• SGX530 graphics accelerator
• 2x Programmable Real-time Unit (PRU) 32-bit 200MHz microcontrollers with single-cycle I/O
latency
• Arm Cortex-M3 for power and security management functions
• Memory:
• 512MB DDR3 800MHZ RAM (Integrated into the OSD3358-SM)
• 4kB I C EEPROM (Integrated into the OSD3358-SM)
2
• SD/MMC connector for microSD
• Software compatibility:
• Debian GNU/Linux images customized for BeagleBone
• Cloud9 IDE on Node.js w/BoneScript library
• Any BeagleBone Black software not needing access to unavailable expansion pins
• Connectivity:
• High speed USB 2.0 OTG (host/client) micro-B connector (USB0)
• Bootable microSD card slot (MMC0)
The information contained in this document should be used as a guideline only.
www.mouser.com or the supplier's website.
