Summary of Contents for DigiTech QM4000

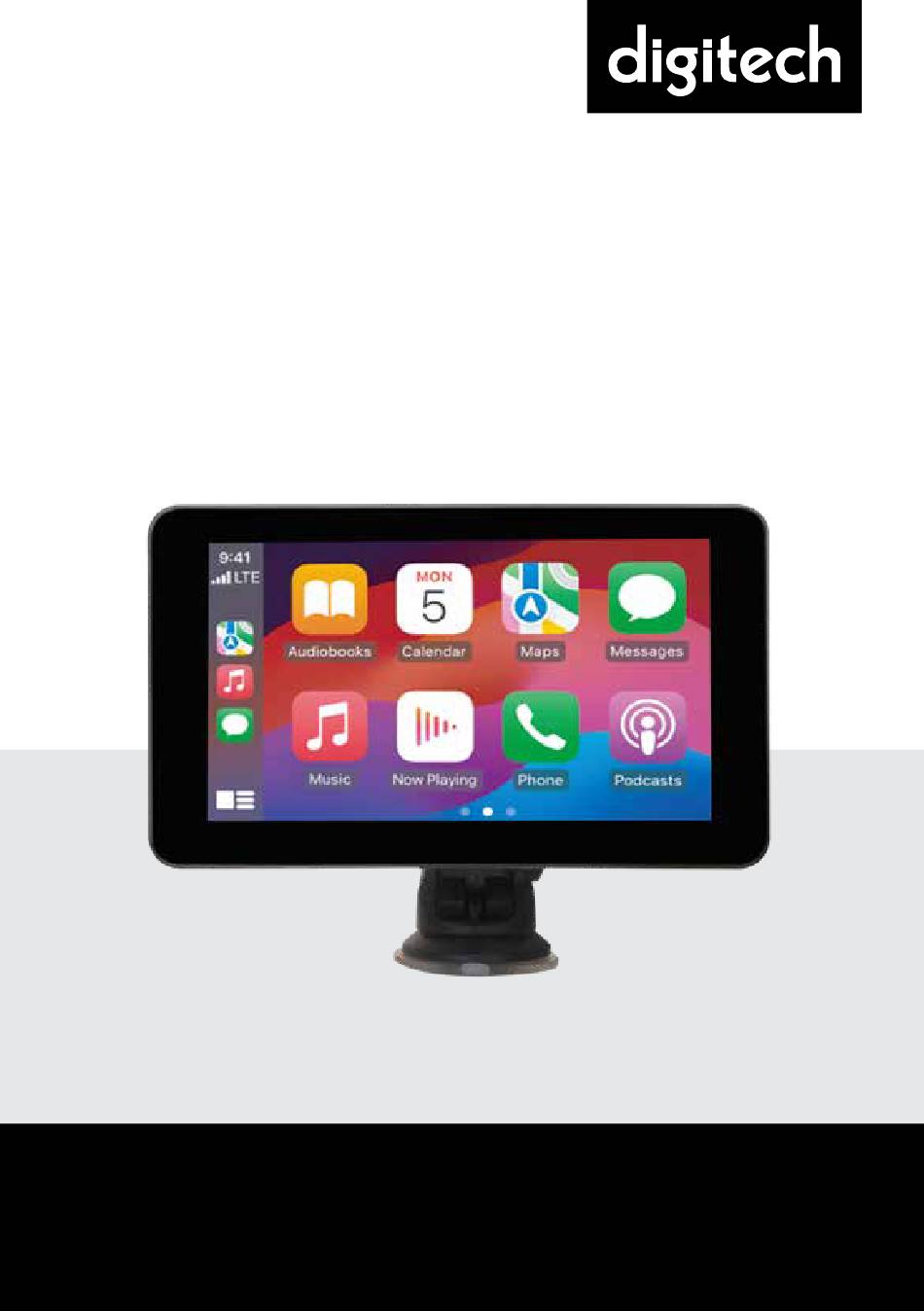

- Page 1 7” Wireless Smart Monitor for Vehicles Model: QM4000 Instruction Manual...
-
Page 2: Table Of Contents
CONTENTS Warnings & Safety Information....................3 Before First Use ..........................4 Box Contents ..........................4 Installation Method ........................5 Cigarette Lighter Power Plug ....................6 Bluetooth Pairing Connection ....................6 Audio Output Method .......................7 Reversing Camera Connection (CCD) .................. 8 Function Description ......................... 8 Android Auto .......................... -
Page 3: Warnings & Safety Information
WARNINGS & SAFETY INFORMATION WARNING: The manufacturer is not responsible for any potential injury from misuse • Please consult with local legislation and road laws prior to using on public roads. • Ensure you are familiar with your local road rules before interacting with this unit on public roads. -
Page 4: Before First Use
BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. Please pay close attention to the section entitled Warnings &... -
Page 5: Installation Method
INSTALLATION METHOD Bracket Installation Glass suction cup type suspension installation WARNING: Please ensure your view of the road is not impeded by installation of this device. Please ensure no instruments are covered or impeded by installation of this device. Please ensure any power cables or the device itself do not impede operation of the vehicle. -
Page 6: Cigarette Lighter Power Plug
CIGARETTE LIGHTER POWER PLUG This device is powered by the cigarette lighter power plug. After the device is installed, insert the power plug of the cigarette lighter into the cigarette lighter, and then it can be turned on for use. Standard Cigarette Lighter Power Plug WARNING: The USB-C Is 12-24V and not suitable for other devices. -
Page 7: Audio Output Method
AUDIO OUTPUT METHOD There are 3 audio output methods: Built-in speaker When playing music with a USB flash drive, the sound comes out from the built-in speaker on the back. AUX line transmission The AUX line is transmitted to the original car player. -
Page 8: Reversing Camera Connection (Ccd)
REVERSING CAMERA CONNECTION (CCD) The reversing video input can be connected through the RCA adapter cable. When there is a signal at this port, the LCD will automatically switch to the camera image. (The camera is purchased separately.) Connect to reverse lights Not used Not used... -
Page 9: Android Auto
ANDROID AUTO This feature is not supported in all countries, and “Google Play” services need to be available locally. NOTE: Android Auto services require a data connection from your mobile device, please contact your provider for data rates and usage. Touch input available Need to download and install “Android Auto”... -
Page 10: Troubleshooting
TROUBLESHOOTING ISSUE SOLUTION How to make the sound come 1. The built-in speaker of our device can emit sound, you can turn it out through the speakers in off in the system settings the car 2. Transmit the sound to the original car radio through the FM transmitting function of the device (for example: select 86.3MHZ on the device, and then play USB music, then use the car radio to search for 86.3MHZ);... -
Page 11: Specifications
SPECIFICATIONS Display Size 7” (1024 x 600 resolution) Backlight 400cd/m Viewing Angles Up/Down 85 , Left/Right 85 Input Method Touch Functions Carplay/Android Auto Reversing Camera (Not included) Connections Bluetooth USB-A Micro SD Card AV - In Aux - Out Radio FM Transmission Speaker Output... -
Page 12: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose. This warranty will not cover modified product;...
Need help?
Do you have a question about the QM4000 and is the answer not in the manual?
Questions and answers
on My QM4000 I connected to Maps and now it just goes to Maps not allowing any other action. Took unit out of car and manged to get to home screen but it is blank. Help please.
To fix a blank home screen issue on your DigiTech QM4000 after connecting to Maps, press and hold your finger on the top of the screen and slide down to pull down the status bar. This may help access volume or system controls that could resolve display issues. If the issue persists, try disconnecting and reconnecting the device or restarting the monitor.
