Summary of Contents for True Blue Prism Control Box
- Page 1 Prism Control Box with Remote/ Wifi Control Installation and Operation manual Keep this Manual for future reference TBCB23090645...
-
Page 2: Product Description

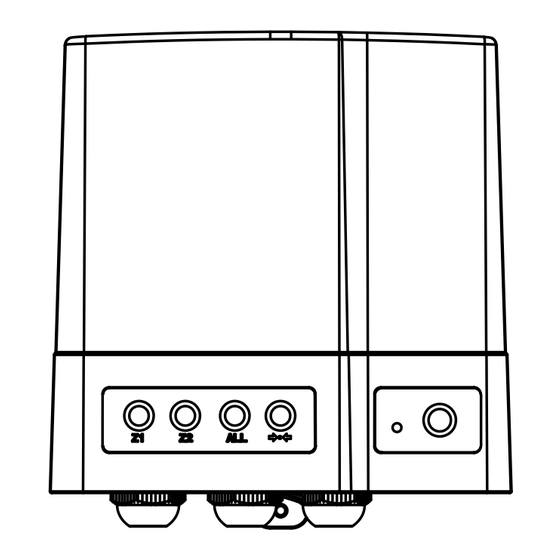

· Never handle with wet hands and feet. · If the external flexible cable or cord of this Prism control box is damaged, it shall be returned to place of purchased and replaced by the manufacturer or their service agent or a similar qualified person in order to avoid a hazard. - Page 3 CONTROL BOX DISPLAY AND FUNCTION KEYS — Reset Button All Button Learn Key Display Z2 Button Standby ON/OFF Button Z1 Button Main Power Switch Power Cord Cicuit Breaker Z2 Output Learn Key Z1 Output REMOTE FUCTION — Colour Wheel Display Brightness RESET Battery...
-
Page 4: Wiring Diagram
WIRING DIAGRAM Input AC 220-240V 220-240V 220-240V Transformer Transformer AC 12V-32V AC 12V-32V E-Lumen X E-Lumen X Attention: 1) Load of the control box should not exceed 2*300W. 2) The control box out voltage is 220~240Vac same as the power socket, it must be connected to 12V-32Vac step down over transformers. - Page 5 The remote uses CR2032 battery with a life time of around six months. Keep batteries out of reach of children The Prism Control Box main power switch must be switched off and wait for three minutes and then switch on again.
-
Page 6: Installation
B) Then drill 4 holes of ø 8mm on the marked position and insert a plastic fitting, Secure the mounting bracket by fastening 4 screws of M5x35 to the plastic fittings. C) The Prism control box hangs on the hook of mounting bracket,and secures with the bottom screw. -
Page 7: Replacement Parts
REPLACEMENT PARTS Item No. Part No. Description AAA-30-91001 Prism control box AAA-301-91001 Prism electronic board 110-220V AAA-301-91002 Internal plate AAA-301-91003 Screw AAA-301-91004 Bottom plate AAA-301-91005 Power switch AAA-301-91006 Cable Gland AAA-301-91007 Power cord AAA-301-91008 Overload protector AAA-301-91009 Switch for learn key... - Page 8 trueblueleisure.com.au After Sales Service: Product Code: EMX-30-91019 Supplied by Pool Systems Pty Ltd Made in China...
