NAL RESEARCH CORPORATION SHOUT sp Quick Start Manual

Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

SHOUT sp QUICK START GUIDE
Support Phone#: 571-833-2169
Support@Nalresearch.com
451-93281-002A
2023-06-15

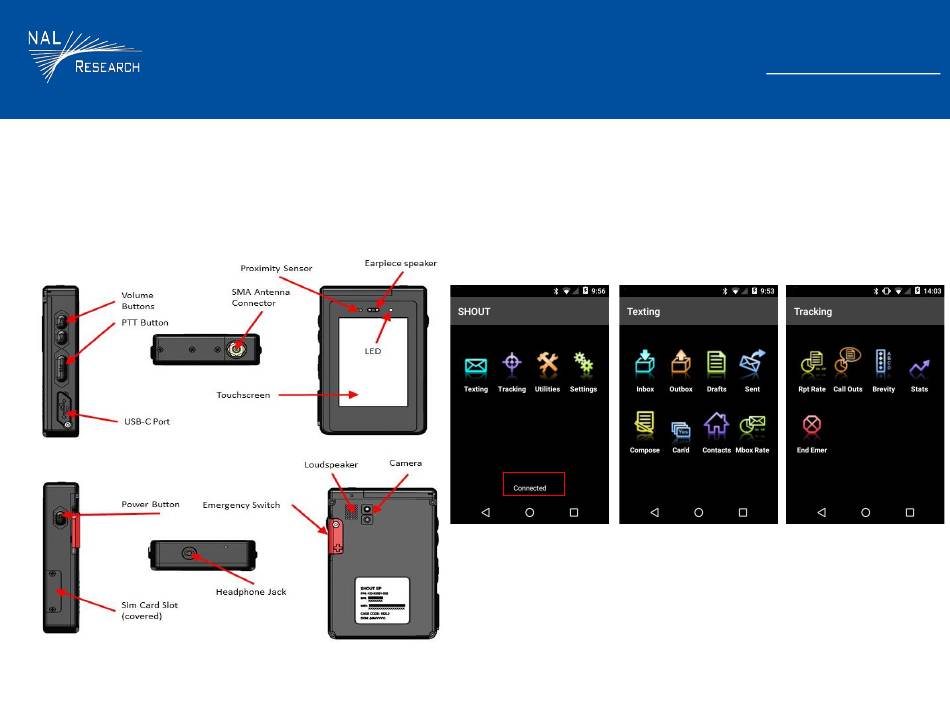

DEVICE DESCRIPTION:
The SHOUT sp is an Iridium smartphone that combines Iridium tracking/messaging with an Android-powered Iridium smartphone. The SHOUT sp
device comprises a Touchscreen, a Power button, a Status LED, a guarded Emergency button, and a USB-C port. It supports Iridium's short burst data (SBD), SMS, voice calls,
push-to-talk (PTT), and data/voice hotspot capability. The Touchscreen is a capacitive touchscreen, and detects touch by fingers only. It does not detect input by a gloved
hand.
NAL SHOUT APP DESCRIPTION
: The NAL SHOUT App is an Android application that provides access to the four submenus of the application: Texting, Tracking, Utilities,
and Settings. If it has successfully connected to the SHOUT sp, the text will read "Connected".
IMPORTANT:
SHOUT sp must have a full view of the sky during transmission.
Texting Main Screen
SHOUT APP Home Screen
Texting Main Screen
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHOUT sp and is the answer not in the manual?

Questions and answers

Summary of Contents for NAL RESEARCH CORPORATION SHOUT sp

  • Page 1 DEVICE DESCRIPTION: The SHOUT sp is an Iridium smartphone that combines Iridium tracking/messaging with an Android-powered Iridium smartphone. The SHOUT sp device comprises a Touchscreen, a Power button, a Status LED, a guarded Emergency button, and a USB-C port. It supports Iridium’s short burst data (SBD), SMS, voice calls, push-to-talk (PTT), and data/voice hotspot capability.

  • Page 2: Charging Battery

    CHARGING BATTERY  Fully charge the SHOUT sp before use. It must be kept in environments between 0°C (32°F) and 45°C (113°F) when charging. The SHOUT sp can be charged with the supplied AC wall adapter or connect to a standard USB device using the provided USB-A to USB-B cable.

  • Page 3: Emergency Mode

    9. Enter the Report Rate in minutes. 10. Tap the Update button to accept the changes. The SHOUT sp is now in tracking mode and ready to send position reports. No further action is required. The unit automatically goes to sleep in between reports.
  • Page 4 SHOUT sp QUICK START GUIDE Support Phone#: 571-833-2169 Support@Nalresearch.com 451-93281-002A 2023-06-15 NAL SHOUT APP TEXTING: The Texting menu allows the user to check the mailbox for incoming, outgoing and sent messages, compose new messages, view saved draft messages, add and view canned text messages and contacts, and set up an automatic mailbox check rate. SBD Texting capability through the NAL SHOUT app relies upon Iridium’s SBD service.

  • Page 5: Making A Phone Call

    SHOUT sp QUICK START GUIDE Support Phone#: 571-833-2169 Support@Nalresearch.com 451-93281-002A 2023-06-15 MAKING A PHONE CALL To make a phone call, an activated SIM card must be installed in the SHOUT  From Android Keypad 1. Tap Phone on the Home screen. The Android Phone Keypad displays.

  • Page 6: Using Push-To-Talk (Ptt)

    If speaker from you priority list, a Priority Talkgroup Listening screen displays.  Talking 1. Press and hold the PTT button on the right side of the SHOUT sp. If not Volume Controls you are not denied, start talking.
  • Page 7 SHOUT sp QUICK START GUIDE Support Phone#: 571-833-2169 Support@Nalresearch.com 451-93281-002A 2023-06-15 USING PUSH-TO-TALK (PTT): Settings and Options  Switching to Phone 1. Select Menu>Switch to Phone. A Confirmation screen displays. 2. Select SWITCH TO TELEPHONY  PTT Refresh Talkgroup If a talkgroup configuration changes while the PTT app is currently running, the app provides an option to refresh the talkgroups 1.
