Summary of Contents for LASWIM WL-DMT

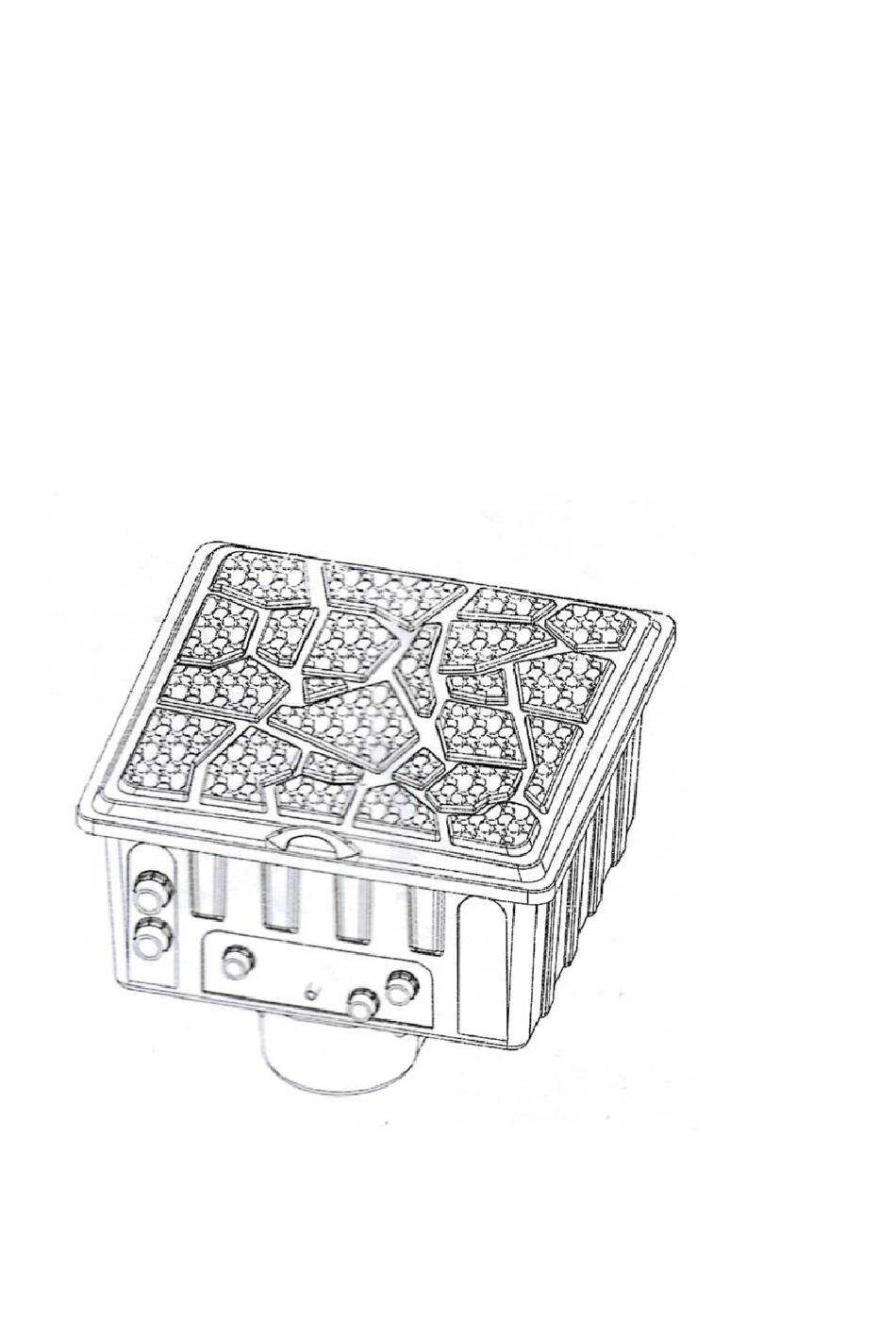

- Page 1 INSTALLATION & OPERATION MANUAL OF FILTRATION UNIT WL-DMT WL-MMT WL-GMT...
-
Page 2: Safety Precaution
II. Safety precaution Read and follow safety instructions provided safety warnings, cautions and notices to make sure to use this unit safely. Do not try to operate this unit in the way which is not recommended in the instruction. Please always follow basic safety precautions to avoid fatal electrical shock hazard, fire or equipment damage caused. -
Page 3: Installation
ILTRATION UNIT 1. Installation Installation diagram WL-MNT-8/WL-MNT-12-WL-MNT16... - Page 4 2. Installation 1.Precast installation base according to the dimension of installation diagram at theplace of ordered position. Then install the filtration unit after it is solidified. 2. Inspect the filtration unit, clean up the installation base and adjust benchmark before installation. 3.
- Page 5 WL-MMT electric control box wiring diagram 3. Equipments...
- Page 6 IV. Operating Instructions for filtration unit 1. Connect input power as shown in Wining Diagram of electric control box (P10- P11). 2. Fill the water into pump before operating the filtration unit, kindly refer to the operating details of pump in this manual. 3.
- Page 7 Ctinc Maintenance only routine maintenance needed is inspection/cleaning of trap basket. Debris or that collects in basket will choke off water flow through the pump. Follow inons below to clean trap: 1 pump, close valves in suction and discharge, and release all pressure from em before proceeding.
- Page 8 f. Note the initial pressure gauge reading when the filter is clean. (It will vary from each pool depending upon the pump and general piping system.) As the filter removes dirt and impurities from the pool water, the accumulation in the filter will cause the pressure to rise and flow to diminish.
