Summary of Contents for IDEAL Ecomod HP Series

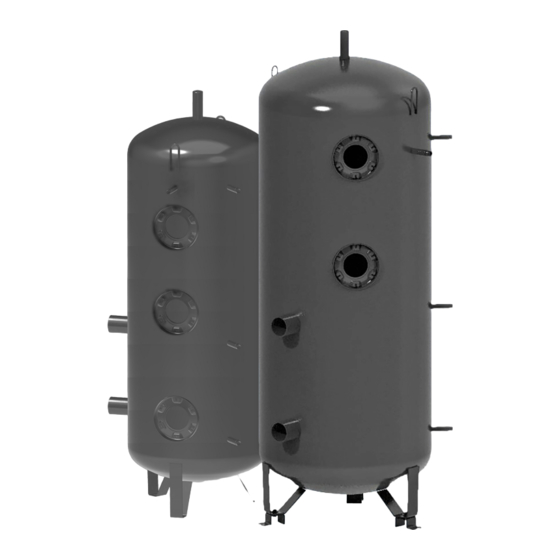

- Page 1 ECOMOD HP BUFFER U0701358-B / 18.07.2022 TANK 500L 900L 1500L Installation, use and maintenance instructions...
- Page 2 WARNING ATLANTIC reserves the right to change the features of equipment described in this manual at any time without prior notice. The primary water tank is not a domestic hot water tank. It serves as a storage tank for the production of domestic hot water or secondary heating networks between a heat pump and a plate heat exchanger.
-
Page 3: Table Of Contents
CONTENTS 1. Certification ......................5 2. Description of the Tyneham Buffer TANK .............5 Installing the equipment ..................7 Hydraulic Connection ...................7 Electric elements ....................9 Commissioning .....................9 Maintenance ......................9 Warranty ......................9 End of life ......................10 10. Spare parts ......................11 Appendix A - Technical specifications ..............13 Appendix B - Data on products ≤ 2000 L ............17 18.07.2022 ECOMOD HP BUFFER TANK 500L, 900L and 1500L 3 / 20... - Page 4 4 / 20 ECOMOD HP BUFFER TANK 500L, 900L and 1500L U0701358-B...
-
Page 5: 1. Certification
1. CERTIFICATION - Eco-design (2009/125/EC): from 26/09/2015 In application of the directive and according to the requirements of EU regulation no. 814/2013 of 02 August 2013, the technical parameters of storage tanks with a volume less than or equal to 2,000 litres are available in appendix B. 2. - Page 6 A data plate listing all the information about the tank is located on the foot of the tank in line with the thermometer sleeve and on the casing. Please take note of these details before contacting After-Sales Service. Page 6 / 20 ECOMOD HP BUFFER TANK 500L 3BR, 900L 2BR et 1500L 2BR U0701358-B...
-
Page 7: Installing The Equipment
3. INSTALLING THE EQUIPMENT • Two lifting rings at the top of the tank allow it to be moved by crane. • Position it as close as possible to the primary hot water heater. • Ensure that the support element is correctly positioned to support the weight of the primary tank when it is full of water. - Page 8 4.2. Water quality From installation until the end of the tank's life cycle, the composition of the water used must conform to the recommendations for the heat pump used with the tank. • Water supply The water supply can cause corrosion related to: •...
-
Page 9: Electric Elements
5. ELECTRIC ELEMENTS Volume Power Assembly flange (kW) (mark C1, C2, C3 in "Appendix A - Technical Characteristics") 6,15 or 30 on each flange 0,1,2 or 3 on DN 112 6,15 or 30 on each flange 0,1 or 2 on DN 112 1500 6,15 or 30 on each flange 0,1 or 2 on DN 112 See instructions for electrical resistance. -
Page 10: End Of Life
It must be used in accordance with the instructions and regularly maintained by a specialist. In no case will operations under the warranty confer eligibility for the payment of damages or extend the warranty period. In the event of a clearly established manufacturing fault or defective materials (which must be proved by the purchaser) acknowledged by Groupe Atlantic, the manufacturer's liability is limited to: •... -
Page 11: Spare Parts
10. SPARE PARTS List of parts that can be replaced: Reference Thimble lg. 160mm (x1) 555535 Flange gasket DN112 551237 Rise extension for buffer tank D790 (x3) 552187 Rise extension for buffer tank D1000 à D1500 (x3) 552188 Flange insulation DN112 "soft M1" 551231 Full black side flange with gasket 555534 18.07.2022 ECOMOD HP BUFFER TANK 500L 3BR, 900L 2BR et 1500L 2BR Page 11 / 20... - Page 12 Page 12 / 20 ECOMOD HP BUFFER TANK 500L 3BR, 900L 2BR et 1500L 2BR U0701358-B...
-
Page 13: Appendix A - Technical Specifications
APPENDIX A 18.07.2022 ECOMOD HP BUFFER TANK 500L, 900L and 1500L 13 / 20... - Page 14 500 L 1500 L TECHNICAL SPECIFICATIONS 1,2 or 3 flanges 1. Thermostat gage or temperature sensor 2. Thermometer gage 3. Primary / secondary supply connection 4. Purge connection 5. Drainage connection 6. 2 lifting rings at 180° 500 L 3BR Ecomod HP buffer tank 1500...
- Page 15 TECHNICAL SPECIFICATIONS without flange 1. Thermostat gage or temperature sensor 2. Thermometer gage 3. Primary / secondary supply connection 4. Purge connection 500 & 900 L 5. Drainage connection 6. 2 lifting rings at 180° 500 L 900 L Cr M1 0.066 0,054 90°...
- Page 16 OVERALL DIMENSIONS The overall dimensions represent the minimum width required to move the tank without rotating it within a building. The values given do not take any account of the type of handling equipment used or of the type of support on which the tank is placed. Ecomod HP buffer tank 1500 Ø...
- Page 17 APPENDIX B 18.07.2022 ECOMOD HP BUFFER TANK 500L, 900L and 1500L 17 / 20...
-
Page 18: Appendix B - Data On Products ≤ 2000 L
Code Name S (W) V (L) ECOMOD HP BUFFER TANK 500L 3F 520 364 74,6 ECOMOD HP BUFFER TANK 900L 2F Ideal 520 365 100,4 ECOMOD HP BUFFER TANK 1500L 520 366 1425 2F SM1 Data on products Static losses... - Page 19 UPKEEP DATES TYPE HOOD 18.07.2022 ECOMOD HP BUFFER TANK 500L, 900L and 1500L 19 / 20...
- Page 20 IDEAL BOILERS LIMITED National Avenue EAST YORSHIRE HU5 4JB HULL GREAT BRITAIN Tel. : 01202662511 Others countries, contact your local retailer...
