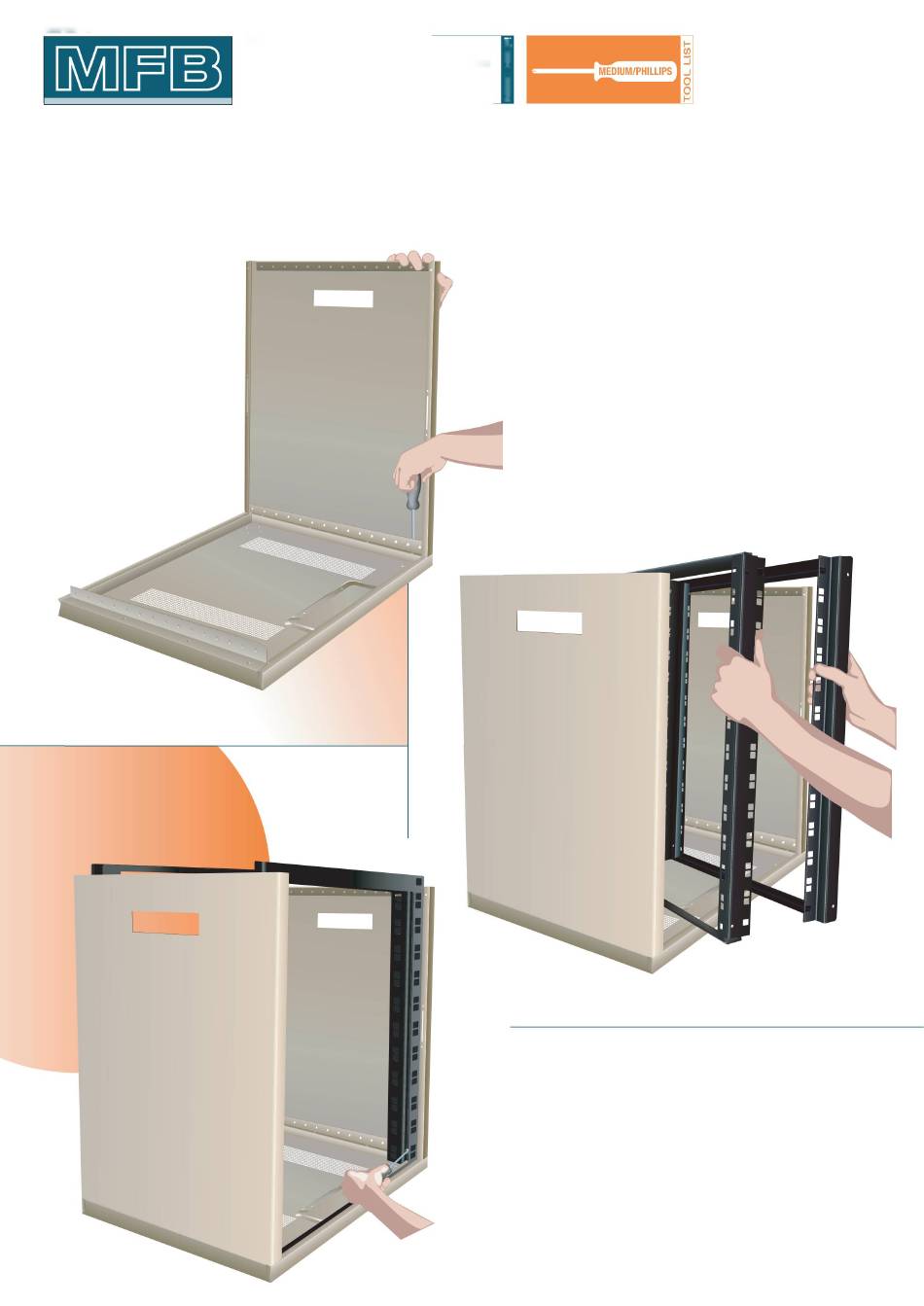

Series 210 Cabinet
STEP1
LAY BASE FLAT AND
ATTACH SIDES VIA
FOUR SELF TAPPING
SCREWS. REPEAT FOR
THE OTHER SIDE.
ENSURE THAT THE
HANDLE TOP IS AT
THETOR
STEP 2
INSERT MOUNTING FRAMES,
ONE FRONT, ONE REAR,
WITH THE FLAT SURFACES
FACING OUTWARDS
STEP 3
ATTACH MOUNTING FRAMES
TO SIDES - ONLY ON THE BOTTOM.
(If door, swing frame or wall mount
brackets are being fitted, front
mounting frame needs to be
mounted one hole back.)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 210 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MFB 210 Series

  • Page 1 Series 210 Cabinet STEP1 LAY BASE FLAT AND ATTACH SIDES VIA FOUR SELF TAPPING SCREWS. REPEAT FOR THE OTHER SIDE. ENSURE THAT THE HANDLE TOP IS AT THETOR STEP 2 INSERT MOUNTING FRAMES, ONE FRONT, ONE REAR, WITH THE FLAT SURFACES FACING OUTWARDS STEP 3 ATTACH MOUNTING FRAMES...
  • Page 2 □ Series 210 Cabinet 2 STEP 4 ATTACH LID TO THE TOP OF THE SIDES STEP 5 ATTACH TOP OF MOUNTING FRAME TO SIDES STEP 6 INSERT BOTTOM OF HANDLE INTO HOLE AT TOP OF SIDES AND TILT TOP UPWARDS UNTIL SIDES CLICK INTO POSITION.
  • Page 3 □ Series 210 Cabinet Options WALL MOUNTS GLAND PLATE ATTACH WALL MOUNTS TO REAR ATTACH GLAND PLATE TO BASE OF CABINET (IF NO REAR PANEL IS FITTED - AND IF REQUIRED) RUBBER FEET INSERT FEET INTO RECESSES IN BASE (NOT REQUIRED IF CASTORS ARE BEING FIT) REAR PANEL ATTACH REAR PANEL TO SIDES (IF REQUIRED)
  • Page 4 □ SWING FRAME NOTE: You need to pick up on frame studs in non-solid walls to ensure safe loading of cabinet. Fixings will depend on wall type - Not included. STEP1 ATTACH THIN SIDE SWING FRAME TO WALL STEP 2 ATTACH CABINET TO THE INSIDE OF SWING FRAME...

  • Page 5: Door Assembly

    Door Assembly 1 STEP1 FIT HINGES IN PLACE BY ALIGNING THEM AND PRESSING THE DELRIN HINGE PINS INTO PLACE UNTIL THEY CLICK STEP 2 FIT DOOR TO CABINET WITH TWO SCREWS PER HINGE.
  • Page 6 Door Assembly 2 STEP 3 ATTACH CLEAR RUBBER DOOR STOPS IN THE CORNERS ABOVE AND BELOW THE LOCK. STEP 4 STEP 5 INSERT LOCK THROUGH DOOR AND FIX WITH STAR CHECK THAT FLAG IS IN LOCK POSITION WHEN WASHER AND NUT UNTIL FIRMLY IN POSITION KEY IS VERTICAL.
  • Page 7 Castor Kit STEP1 TURN CABINET UPSIDE DOWN...
