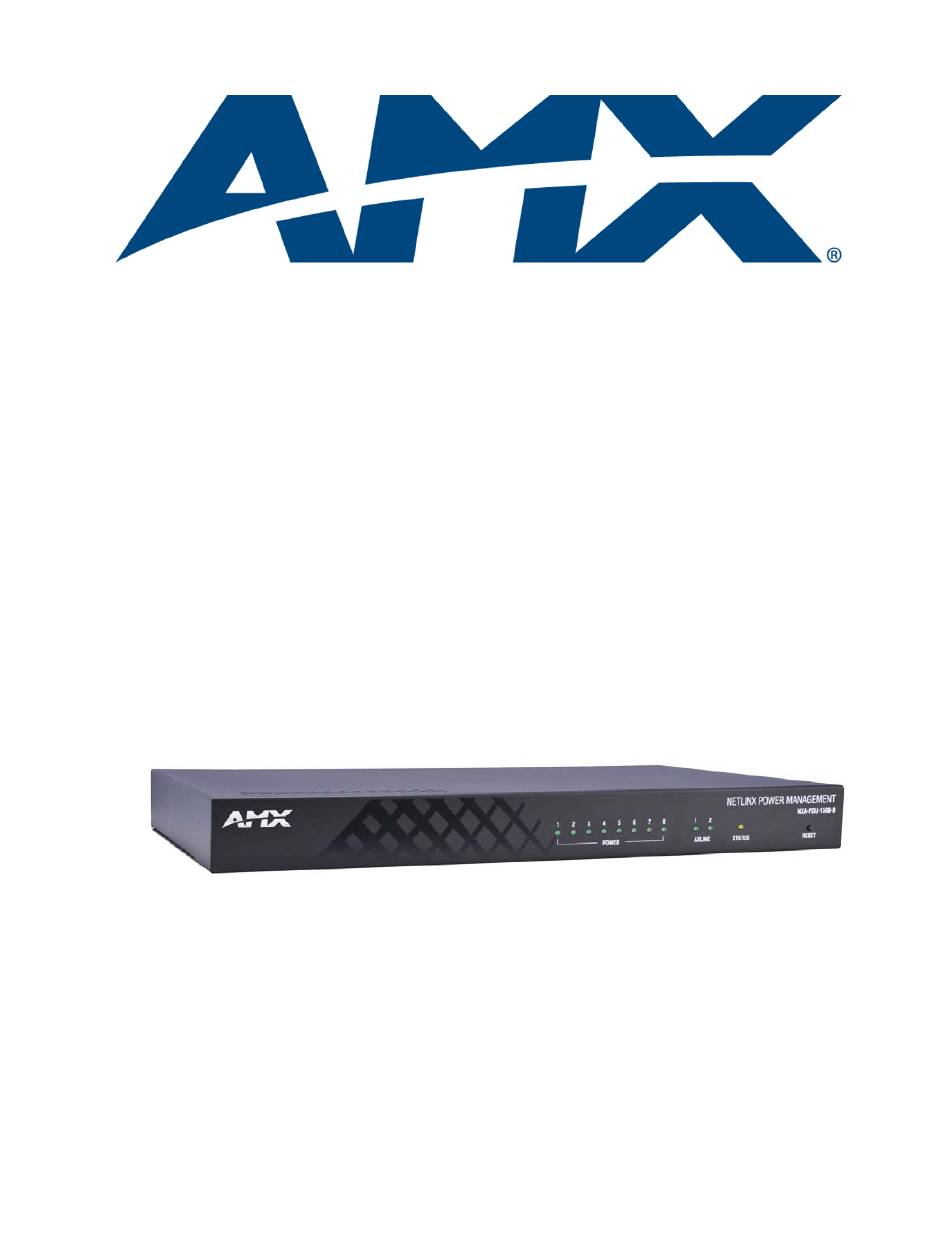

NXA-PDU-1508-08 Power Distribution Unit (110V/220V) Operation/Reference Guide
Operation/Reference Guide
NXA-PDU-1508-08
Power Distribution Unit
(110V/220V)
C o n t r o l S y s t e m A c c e s s o r i e s
L a s t R e v i s e d : 3 / 2 7 / 2 0 1 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NXA-PDU-1508-08 and is the answer not in the manual?

Questions and answers

Related Manuals for AMX NXA-PDU-1508-08

Summary of Contents for AMX NXA-PDU-1508-08

  • Page 1 NXA-PDU-1508-08 Power Distribution Unit (110V/220V) Operation/Reference Guide Operation/Reference Guide NXA-PDU-1508-08 Power Distribution Unit (110V/220V) C o n t r o l S y s t e m A c c e s s o r i e s L a s t R e v i s e d : 3 / 2 7 / 2 0 1 2...
  • Page 2 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents NXA-PDU-1508-8 (110V/220V) ................1 Overview ........................1 Product Specifications ..................... 1 SAFETY INSTRUCTIONS ................... 4 Power Cord Requirements..................4 Rack-Mounting......................5 Installation ......................7 Front Panel Components ..................7 RESET Pushbutton......................7 Rear Panel Components.................... 7 AXLINK POWER Connectors 1-8 ..................
  • Page 4 Table of Contents NXA-PDU-1508-8 Power Distribution Unit...

  • Page 5: Nxa-Pdu-1508-8 (110V/220V)

    NXA-PDU-1508-8 (110V/220V) NXA-PDU-1508-8 (110V/220V) Overview The NXA-PDU-1508-8 Power Distribution Unit (FG673-01) provides switching of mains power to each of eight AC power outlets. The two built-in AxLink bus strips provide connectivity (AxLink data / power) for up to eight AxLink connections. AxLink BANK 1 AxLink BANK 2 Status LED...
  • Page 6 • ENV-VST-TSO, Temperature Sensor (FG2050-22) • (2) Removable mounting brackets • (9) 4-pin, 3.5mm captive-wire connectors (41-5047) Other AMX Equipment: • ENV-VST-TSF, Flush Mount Temperature Sensor (FG2050-21) • CC-C13-C14: C13 to C14 Power Cable (FG10-673-01) • CC-C14-NEMA: C14 to NEMA Power Cable (FG10-673-02)
  • Page 7 NXA-PDU-1508-8 (110V/220V) The following table lists the specifications for the ENV-VST-TSO Outdoor Temperature Sensor: ENV-VST-TSO Outdoor Temperature Sensor Specifications Sensing Element: Thermistor (thermal resistor) Accuracy: ±0.6° C from -20° to 60° C Temperature Range: -50° C to 110° C Temperature Response: NTC Thermistor Connection: 1"...

  • Page 8: Safety Instructions

    NXA-PDU-1508-8 (110V/220V) SAFETY INSTRUCTIONS  There are NO user serviceable parts within the NXA-PDU-1508-8.  The NXA-PDU-1508-8 is intended for indoor use only.  DO NOT install or operate the NXA-PDU-1508-8 in an area where the ambient temperature exceeds 40ºC (104ºF) or falls below 0ºC (32ºF). ...

  • Page 9: Rack-Mounting

    NXA-PDU-1508-8 (110V/220V) Rack-Mounting For safety, the socket-outlet should be installed near the NXA-PDU-1508-8 and must be easily accessible. Before rack mounting the PDU, pay particular attention to the following factors:  Temperature: Since the temperature within a rack assembly may be higher than the ambient room temperature, check that the rack-environment temperature is within the specified operating temperature range.
  • Page 10 NXA-PDU-1508-8 (110V/220V) NXA-PDU-1508-8 Power Distribution Unit...

  • Page 11: Installation

    Installation Installation Front Panel Components The front panel components of the NXA-PDU-1508-8 are shown in FIG. 6: AxLink BANK 1 AxLink BANK 2 POWER (Output 1-8 Status) LEDs Status LED Status LED AxLink STATUS LED RESET pushbutton FIG. 6 NXA-PDU-1508-8 - Front Panel Components See the Specifications table for descriptions of the LEDs on the front panel.

  • Page 12: Master Connector

    Installation MASTER Connector The 3.5mm 4-pin captive-wire AxLink connector labelled “MASTER” provides AxLink connectivity between the PDU and the NetLinx Master (see FIG. 7). This connector is always ON. TEMP Connector The 3.5mm 2-pin captive-wire connector labelled “TEMP” (see FIG. 7) provides the option to connect a Remote Temperature Sensor (RTS).

  • Page 13: Axlink Wiring Guidelines

    If you later change the device number, remove and reconnect the power connector to enter the new device number into memory. Use the "Dip Switch2" software application to calculate dip switch position values (available to download from www.amx.com). NXA-PDU-1508-8 Power Distribution Unit...

  • Page 14: Power Outlets 1-8

    Installation Power Outlets 1-8 The eight 110-220VAC 50/60Hz, IEC C-13, 15A AC Power Outlet Connectors provide AC power to connected devices (see FIG. 7). Maximum load on a single outlet = 10A @ 110-120 VAC / 8A @ 220-240VAC. Power Inlet The IEC C-14, 15A power inlet connector provides 110-220VAC, 50/60Hz mains power to the PDU.

  • Page 15: Netlinx Programming

    NetLinx Programming NetLinx Programming Device IDs The NXA-PDU-1508-8 uses 8 AxLink device IDs, starting from the device ID denoted by the DIP switch:  Dev 1: Output 1 + AxLink Power 1 + Input Voltage + Temperature  Dev 2: Output 2 + AxLink Power 2 ...

  • Page 16: Trigger

    NetLinx Programming SEND_COMMANDs (Cont.) ?TRIGGER Syntax: ?TRIGGER-<outlet #> Responds with: TRIGGER-<outlet #>=<Power Sense Trigger> to report the trigger value in use on the outlet. Syntax: Responds with: Version (string) - example: "Vx.xx" ZAP! Syntax: ZAP! Restores all settings on the PDU to factory default settings. Unsupported options in responses are ignored / not reported.

  • Page 17: Levels

    "Power Factor " is the ratio of real power to apparent power. For power factor, AMX has added an offset of 100 to the value to cope with the possibility of negative numbers. To obtain the correct value of the power factor, first subtract 100 from the level returned by the PDU, then divide by 100.
  • Page 18 NetLinx Programming NXA-PDU-1508-8 Power Distribution Unit...
  • Page 19 Upgrading Firmware NXA-PDU-1508-8 Power Distribution Unit...
  • Page 20 - Schedules and registration for any AMX University course - Travel and hotel information - Your individual certification requirements and progress 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
