Summary of Contents for Amico Fairfield Horizontal Rail System
- Page 1 User Manual Fairfield Horizontal Rail Adapter...
- Page 2 This unit is designed for long-lasting performance, provided the user complies with assembly and maintenance procedures. This instruction manual is your guide to ensuring that you get the best performance out of your equipment. Amico Accessories is not responsible for any damage as a result of (but not limited to) abuse and other malfunctions that may be a direct or indirect result of failure to comply with the instructions provided in this manual.
-
Page 3: Table Of Contents
Table of Contents Section 1: Product Specifications Features Specifications Section 2: Installation Preparation Installation Tools Pre-installation Information (PLEASE READ CAREFULLY BEFORE STARTING) Typical Installation Reference Section 3: Installation on Mounting Platform Installation Instructions to Light Duty Fairfield Rails and Fairfield Rails Section 4: Device Installation For FTA-8-32 For FTA-05... -
Page 4: Section 1: Product Specifications

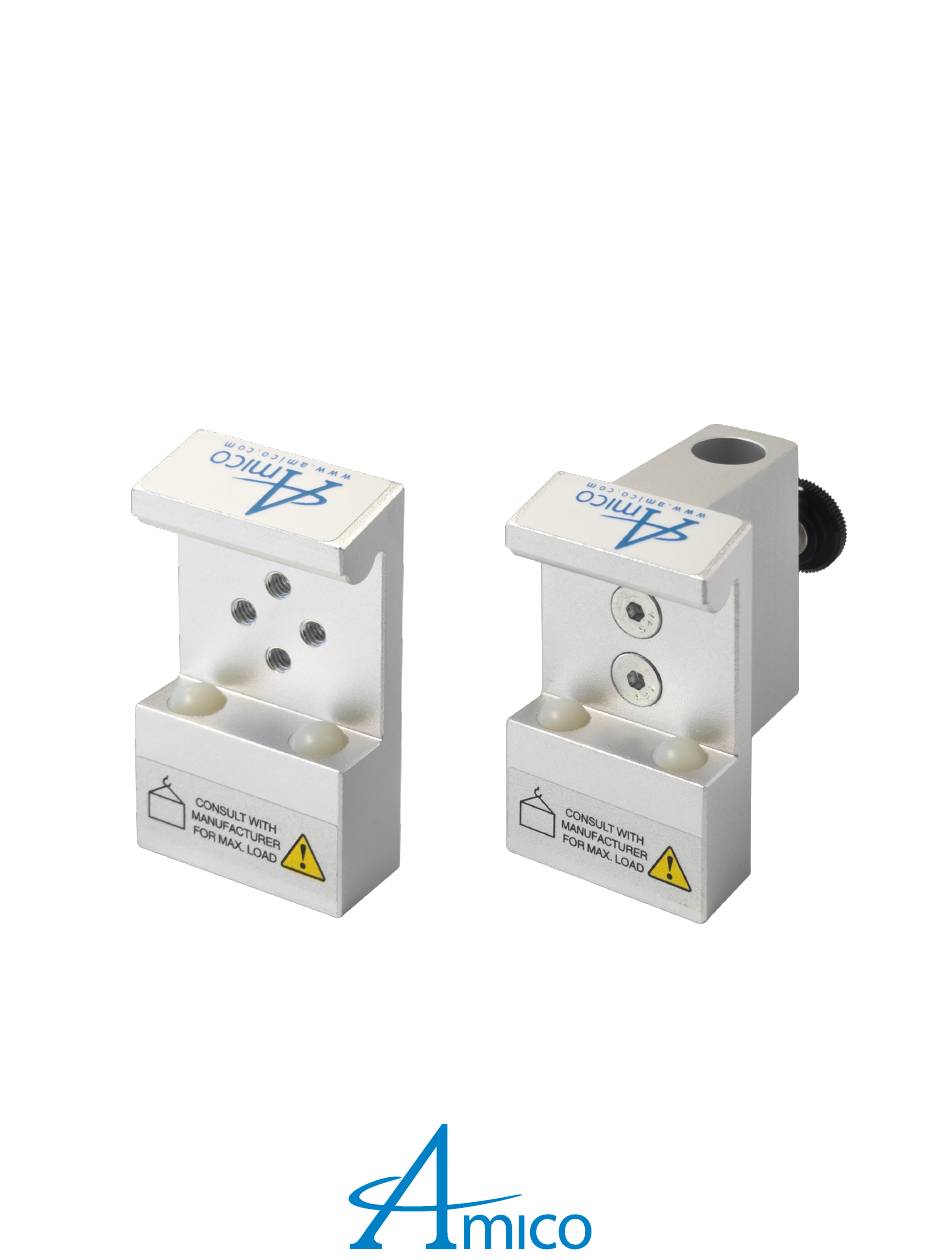

Section 1: Product Specifications Features Compatible to Fairfield Horizontal Rail System (FRS) and Light duty Fairfield Rail System (LRS) for use with custom accessories application. Specifications Amico Part Number FTA-8-32 FTA-05 Physical dimensions 1.5" W x 0.63" D x 2.6" H 1.5"... -
Page 5: Pre-Installation Information (Please Read Carefully Before Starting)
Considerable efforts have been made for applications, please contact an Amico Accessories product specialist: 1-877-264-2697 to ensure the safety of your hospital staff and your patients. The installation itself is beyond the control of Amico Accessories. Accordingly, Amico Accessories will not be responsible for failure related to the installation of the product. -
Page 6: Section 3: Installation On Mounting Platform
DESCRIPTION: GROOVE OF THE RAIL ASSEMBLY DRAWING FOR Fax: (905) 763.8587 THIS PRINT IS PROPERTY OF AMICO ACCESSORIES DESCRIPTION: ASSEMBLY DRAWING FOR FAIRFIELD RAIL ADAPTER AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN THIS PRINT IS PROPERTY OF AMICO ACCESSORIES... -
Page 7: Section 4: Device Installation
(NOT PROVIDED BY AMICO) DESCRIPTION: STEP 1 ASSEMBLY DRAWING FOR Tel: (905) 763.7778 PRIVATE AND CONFIDENTIAL THIS PRINT IS PROPERTY OF AMICO ACCESSORIES 8-32" CLEARANCE HOLES FAIRFIELD RAIL ADAPTER www.amico.com Fax: (905) 763.8587 AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN... -
Page 8: Section 5: Adjustments
FTA(-__)-__(_) Fax: (905) 763.8587 FTA(-__)-__(_) DESCRIPTION: ASSEMBLY DRAWING FOR THIS PRINT IS PROPERTY OF AMICO ACCESSORIES FAIRFIELD RAIL ADAPTER 2 X H-HSSS-71820-38 AND IS LOANED IN CONFIDENCE SUBJECT TO RETURN PART NO: FTA(-__)-__(_) UPON REQUEST AND WITH THE UNDERSTANDING THAT... -
Page 9: Section 6: Troubleshooting, Preventative Maintenance & Cleaning
Knob has loosened Amico Accessories FTA-05, FTA-8-32 adapter is loose/unable to mount to Incorrect rail adapter/damaged rail adapter Please contact Amico Accessories Light Duty Fairfield Rail or Fairfield Horizontal Rail Tighten screws, if problem persists, please Device on FTA-8-32 is loose... -
Page 10: Cleaning
Section 6: Troubleshooting, Preventative Maintenance & Cleaning Cleaning WARNING: THE CLEANING CHEMICALS AND METHODS BELOW ARE NOT MEANT FOR CONTROLLING ANY INFECTIONS. IT SHALL BE THE RESPONSIBILITY OF THE HOSPITAL OR THE HOSPITAL’S INFECTION CONTROL OFFICER TO SANITIZE THE EQUIPMENT. WARNING: PLEASE DO NOT SPRAY ANY CHEMICALS DIRECTLY ONTO THE FAIRFIELD HORIZONTAL RAIL ADAPTER. -
Page 11: Warranty
Amico Accessories Inc. will warrant its materials to be free from defect for an additional period of four (4) years, (five [5] years from the date of shipment). Within this period, Amico Accessories Inc. will replace any part which is proven to be defective, at no charge. - Page 12 Amico Accessories Inc. | 122 East Beaver Creek Road, Richmond Hill, ON L4B 1G6, Canada Toll Free Tel: 1.877.264.2697 | Tel: 905.763.7778 | Fax: 905.763.8587 Email: info@amico-accessories.com | www.amico.com AA-IM-FAIRFIELD-HORIZONTAL-RAIL-ADAPTER 05.02.2024...
