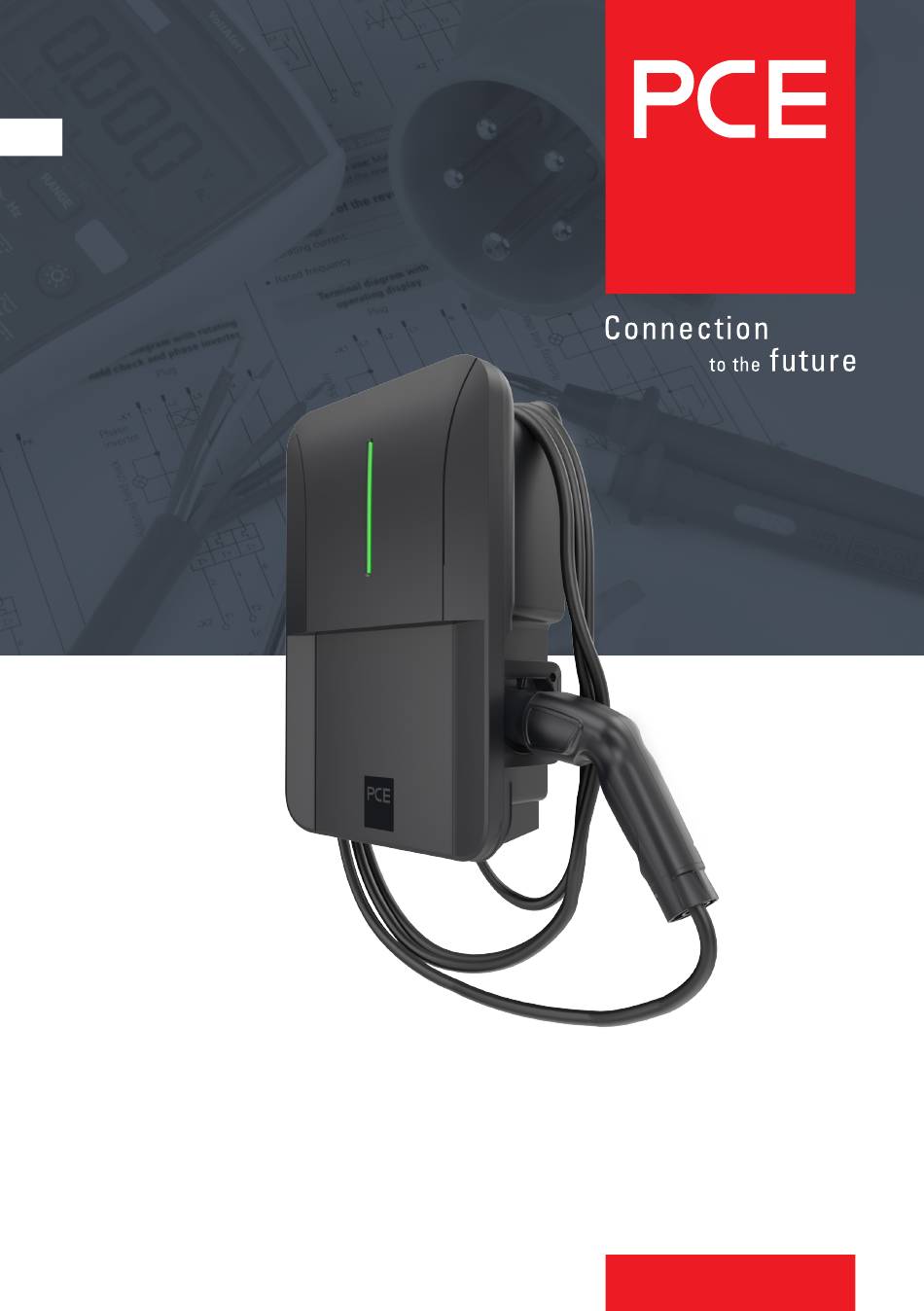

Page 1 Mounting and operating manual EV11.3 WALLBOX Mode 3 Case C...
Page 2 EV11.3 WALLBOX Mounting and operating manual 11227 EV11.3 WALLBOX MOM V1.0 - 04/2024 © PC Electric GesmbH This document is protected by copyright. The contents of this document are the property of PC Electric GesmbH and may not be copied or reproduced in whole or in part without the written permission of the copyright holder.
Page 3: Table Of Contents
Troubleshooting ......................25 Cleaning and service ...................... 27 Cleaning ......................... 27 Service ........................... 27 Replacement parts ......................27 Support contact ......................27 Dismounting and disposal ....................28 Scope of delivery ......................29 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 4: General Information
1. General information Using this manual These instructions contain the necessary information for the proper mounting, installa- tion and operation of the EV11.3 WALLBOX. The safety information ensures safe and efficient handling of the charging station in all life cycle phases.
Page 5: Safety Information
The electrostatic protection of the charging station is only guaranteed when it is fully assembled. To prevent damage to the function of the charging station: • Only touch the circuit board in an ESD-safe environment 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 6: Intended Use
Covering the charging station • Use in potentially explosive atmospheres Only installation work expressly authorised by PC Electric GesmbH is permit- ted. Conversions and modifications result in the loss of warranty claims 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 7: Conformity
• Low Voltage Directive 2014/35/EU • EMC Directive 2014/30/EU • RoHS Directive 2011/65/EU Standards The charging station meets the requirements of the following standards: • EN IEC 61851-1 • IEC 61439-7 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 8: Product Overview
Designer-style trim panel LED status display Housing cover Housing bottom part Coupling holder Type 2 vehicle coupling with charging cable Viewing window / Cover window Grip tabs Dimensions [mm] Ø 6,4 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 9: Product Labels
Diesseits 145 PC Electric GesmbH A-4973 St. Martin/Innkreis Diesseits 145 www.pcelectric.at A-4973 St. Martin/Innkreis www.pcelectric.at Typ: 37031111-ss Typ: 37031111-ss EV11.3 Wallbox basic Z 11kW IP44 EV11.3 Wallbox basic Z 11kW IP44 : 230/400V~ : 50Hz : 230/400V~ : 50Hz : 16A...
Page 10: Circuit Board Overview Of Charging Station Without Energy Meter
M16 double diaphragm support 10. Cover window 11. Mains connecting terminals 12. Charge cable connecting terminals Circuit board components 1, 3, 4 enable optional function expansion. This requires installation work. Description online: https://www.pcelectric.at/en/info-media/emobility-manuals.html 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 11: Circuit Board Overview Of Charging Station With Energy Meter
EV11.3 WALLBOX Circuit board overview of charging station with energy meter 13. Mains connecting terminals 14. Mounting rail 15. Viewing window 16. Energy meter 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 12: Technical Data
EV11.3 WALLBOX 5. Technical data EV11.3 WALLBOX basic Product types EV11.3 WALLBOX basic Z (Z - energy meter) Charging coupling Type 2 Charging mode Mode 3 Case C (with charging coupling) Number of charging points Charging power max. 11 kW (3-phase) or 3,7 kW (single-phase)
Page 13: Supply Cable Connection Data Without Energy Meter
1,5 ... 6 mm² DIN 46228/4 Flexible conductor with wire end ferrule without plastic collar 1,5 ... 6 mm² DIN 46228/1 Flexible conductor with TWIN wire end ferrule 1,5 ... 2,5 mm² 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 14: Supply Cable Connection Data With Energy Meter
1,5 ... 16 mm² DIN 46228/1 On-site protection of the supply cable • Type A IΔN ≤ 30mA GFCI • Type EV • Type B Circuit breaker max. type B16 or C16 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 15: Mounting And Installation
The lowest point of the vehicle coupling in the rest position must be between 0.5 m and 1.35 m above the ground max. 1,35 m min. 0,5 m 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 16: Mounting Position
Do not mount the charging station upside down Mount the charging station on a level and stable surface (such as a brick or concrete wall) Only mount the charging station in a vibration-free environment 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 17: Mounting Procedure
• Drill the holes at the marked points using an electric drill Remove the housing cover from the lower part of the housing • Unscrew 7 screws • Remove housing cover 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 18 Mount lower part of housing on the wall • Fasten lower part of housing with 4 suitable screws max. Ø 6 mm Prepare supply cable EV11.3 WALLBOX without energy meter Connecting terminal • Strip insulation from 11–13 mm of the conductor 11-13 mm •...
Page 19 Insert supply cable • Tighten cap nut SW 25 500 Ncm Connect the supply cable to electricity – EV11.3 WALLBOX without energy meter • Connect the supply cable to terminals 5p = L1, L2, L3, N, PE (3p = L1, N, PE) according to the labelling 1.
Page 20 Additional configuration work is required for other operating modes (communication via digital signals or a data connection via Modbus tcp). The instructions are available via QR code or alternatively on the homepage: https://www.pcelectric.at/en/info-media/emobility-manuals.html 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 21 Check the sealing gap for foreign objects • Secure the housing cover with the 6 screws provided 100 Ncm Mount designer-style trim panel • Attach the trim panel to the top centre of the housing cover 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 22 Note on dismantling designer-style trim panel 1. Remove trim panel screw 2. Pull on grip tabs of trim panel Mounting complete • Coil charging cable around the housing • Insert charging coupling into the coupling holder 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 23: Commissioning
Protect the charging cable from mechanical damage (do not kink, crush, run over etc.) • Protect the contacts of the charging coupling from heat sources, dirt and moisture • Insert charging coupling into the coupling holder when not in use 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 24: Led Status Display Meaning
Vehicle locks charging coupling Charging starts automatically – LED lights up blue Ending the charging process When the desired charge level is reached, end the charging process according to the vehicle‘s user manual. 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 25: Troubleshooting
Restart the charging process – to do this, properly disconnect the charging connector from the vehicle and reconnect Charging pro- • Overheating – charging process will LED flashing red 4x cess paused restart automatically after cooling down 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 26 PWM signal or energy meter 10 sec LED lights up green Charging • Overheating – full charging power and 4x red every 10 power redu- available again after cooling down 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 27: Cleaning And Service
All maintenance and repair work on the charging station must only be carried out by qualified electricians Replacement parts Only original spare parts are permitted. Support contact PC Electric GesmbH Diesseits 145 4973 St. Martin im Innkreis Email: support.emobility@pcelectric.at 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 28: Dismounting And Disposal
Cover or block off nearby live parts The charging station must be disposed of properly in accordance with the country spe- cific regulations of the country of use. The materials are recyclable according to their marking. 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 29: Scope Of Delivery
EV11.3 WALLBOX 10. Scope of delivery Charging station with charging cable and type 2 vehicle coupling Designer-style trim panel Drilling template 11227 EV11.3 WALLBOX MOM V1.0 Mounting and operating manual...
Page 30 PC Electric GesmbH Diesseits 145 4973 St. Martin im Innkreis AUSTRIA TEL +43 7751 61220 FAX +43 7751 6969 office@pcelectric.at Art.Nr. 11227...
