Davies Craig 602 Installation Instructions

UNIVERSAL TRANSMISSION/ENGINE OIL COOLER
PLEASE READ ALL THESE INSTRUCTIONS THOROUGHLY BEFORE YOU START WORK.
DON'T RUSH - ENSURE YOU HAVE FULL UNDERSTANDING OF THE WORK AHEAD BEFORE YOU
COMMENCE. ENSURE YOU HAVE ALL TOOLS AND COMPONENTS REQUIRED.

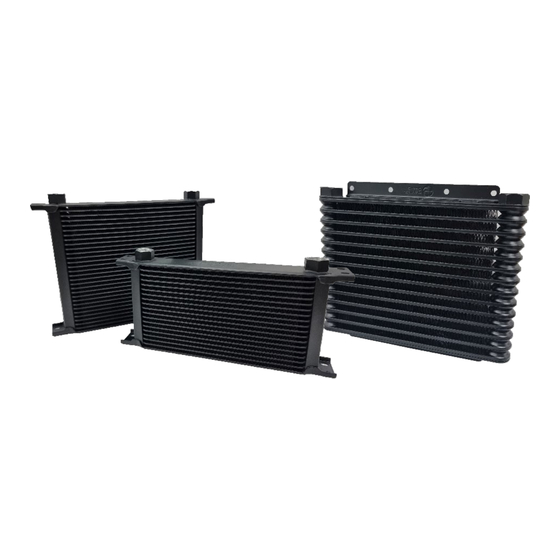

Cooler Kit Contents:
#602, #605, #610 & #616
1 x Universal Oil Cooler
1 x Quick fit kit (#602 & #616)
Cooler & Fan Combo Contents:
#600, #608 & #614
1 x Universal Oil Cooler
1 x 8" 12V Thermatic Fan
2 x quick fit kit (#602 & #616)
1 x quick fit kit (#608)
1 x Fan Wiring harness
1 x 12V Relay
Assorted connectors

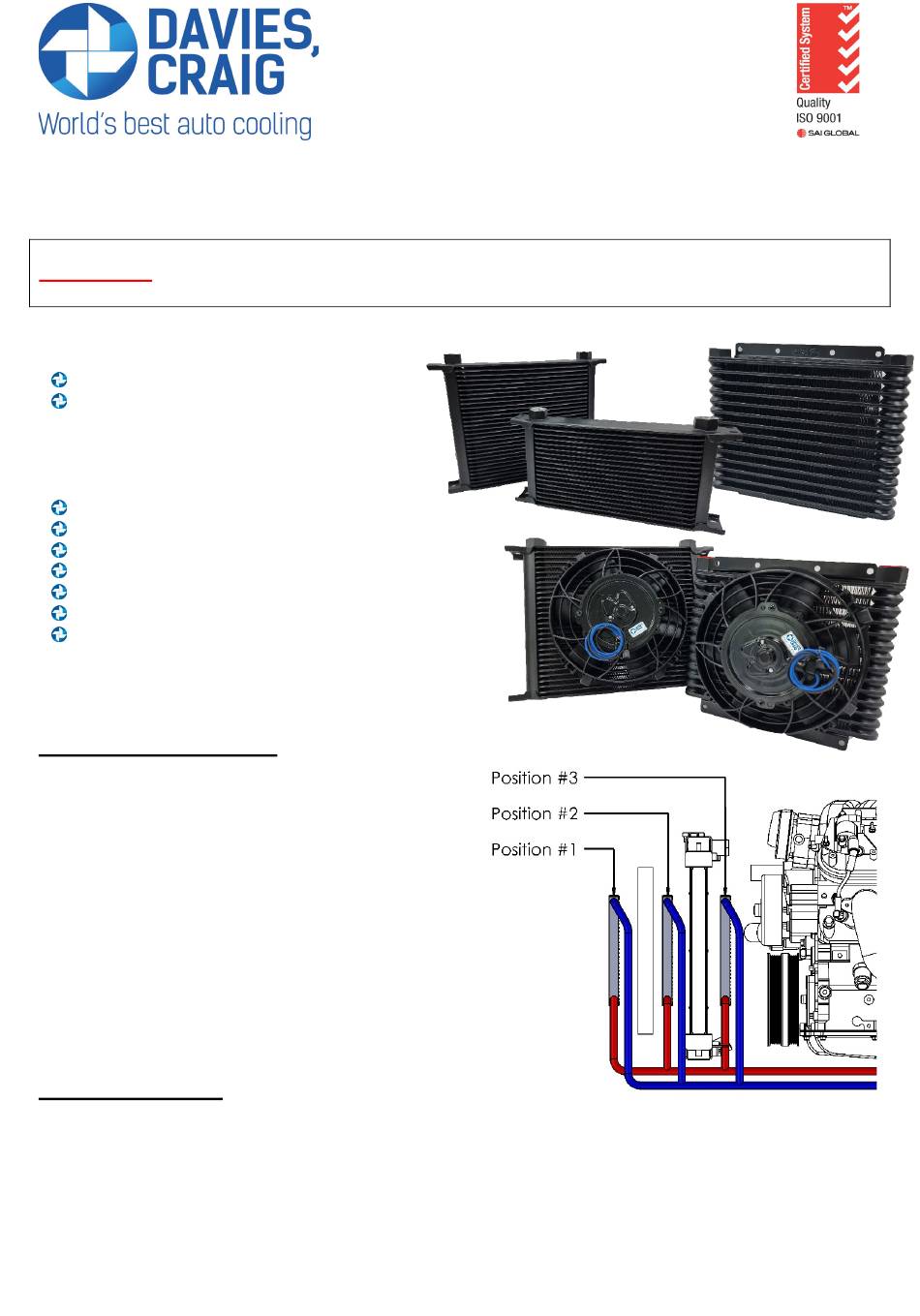

Oil Cooler Location
When selecting the best location for the oil
cooler, always consider a location that will
deliver the maximum airflow.
The oil cooler can be mounted in multiple
locations on your vehicle.
Position #1 In front of A/C condenser:
75% to 100% efficient
Position #2 Between A/C condenser and
radiator:
60% to 75% efficient
Position #3 between radiator and fan:
<60% efficient
Remote Mount
When space in front of the radiator is at a premium. You can remotely mount your oil cooler
wherever is most convenient.
For applications and locations where, constant airflow is not always available, the addition of
a Thermatic fan and Thermatic fan switch can help keep temperatures in check.
Note: The Oil Cooler Core will flow in either direction, there is no specified inlet or outlet port.
28-NOV-2022
INSTALLATION INSTRUCTIONS
Universal Transmission/Engine Oil Cooler
