- Page 1 Halton Vita VSG - Installation Guide Enabling Wellbeing All rights reserved © Halton...
-
Page 2: Table Of Contents
3.1 Before you start ..........................9 3.1.1 Installation process ........................ 9 3.2 Step by step instructions ....................... 9 3.2.1 Installing Halton Vita VSG in the exhaust duct ..............9 4 Technical reference data........................14 4.1 Dimensions and weight ....................... 14 Version 2.2... -
Page 3: Introduction
Halton disclaims any and all liability related to this document. Halton gives no explicit or implied warranties in terms of this document. Any permitted use of the information included herein is at your own risk. Halton may amend or replace the information included in this document at its sole discretion without further notice and liability. -
Page 4: Safety Notes
Halton Vita VSG - Installation Guide 4(15) 1.4 Safety notes All information in this section is important and relevant for your safety. Please pay special attention to these icons and the accompanying messages when used later in context in this manual. -
Page 5: Contact Information
Do not lift objects over 20kg (44lbs) alone. Use a lift or seek assistance. CAUTION! Risk of personal injury or material damage. Notes NOTE: Notes are statements to which you should pay special attention. 1.5 Contact information You can find the contact details from www.halton.com/contact. Version 2.2 All rights reserved © Halton... -
Page 6: Product Description

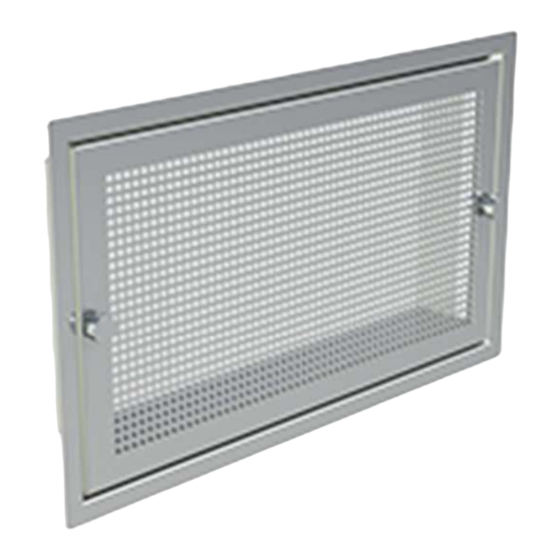

2 Product description 2.1 Overview Halton Vita VSG is an exhaust grille for all Halton Vita OR Space and Halton Vita OR Zone solutions. It is an alternative to the Halton Vita VSC exhaust unit in designs where more flexibility in the placement of the exhaust is needed. -
Page 7: Function
Halton Vita VSG - Installation Guide 7(15) 2.2 Function Air is exhausted from the space through the grille and the filter. The purpose of the separator is to prevent fibre particles originating from the clothing of the personel and other operational textiles from entering the ventilation system. -
Page 8: Structure And Material
Front panel Stainless steel (AISI 316L) Fixing knob Stainless steel (AISI 316L) 2.4 Further technical details For Halton Vita VSG dimensions and weight see the Dimensions and weight chapter in the technical reference data section. Version 2.2 All rights reserved © Halton... -
Page 9: Installation
3.1.1 Installation process This chapter outlines possible installation locations and related components. Installation location Halton Vita VSG units can be installed in the Halton Vita VSC unit or in the exhaust duct, behind a wall element. Related components Halton Vita VSG exhaust grilles are included in the Halton Vita VSC exhaust unit delivery. They complete the Halton Vita VSC installation. - Page 10 Halton Vita VSG - Installation Guide 10(15) 2. Choose the orientation of the fixing frame installation. The orientation of the fixing frame depends on the wall thickness. If the fixing frame is facing: o Inwards o Outwards The wall thickness has to be The wall thickness has to be between 30-75 mm.
- Page 11 Halton Vita VSG - Installation Guide 11(15) 5. At this stage, the exhaust duct should be covered with a wall element. The wall element should have a hole for the grille. Check the hole dimensions in the table below. Hole Dimensions...
- Page 12 Halton Vita VSG - Installation Guide 12(15) 7. Seal the gap between the grille frame and the fixing frame with sealant mass. 8. Align the metal mesh fluff separator so that the mesh side is facing the duct. NOTE: Metal mesh fluff separator is optional.
- Page 13 Halton Vita VSG - Installation Guide 13(15) 10. Screw the knobs to fix the front panel to the grille frame. Version 2.2 All rights reserved © Halton...
-
Page 14: Technical Reference Data
Halton Vita VSG - Installation Guide 14(15) 4 Technical reference data 4.1 Dimensions and weight The dimensions for the six exhaust grille sizes are detailed in the table. Weight (kg) 400x200 487 456 395 287 256 195 6.5 400x400 487 456 395 487 456 395 9.0 500x250 587 556 495 337 306 245 8.0... - Page 15 Halton Vita VSG - Installation Guide 15(15) 400x200 447 399 247 201 400x400 447 399 447 401 500x250 547 499 297 251 500x500 547 499 547 501 600x250 647 599 297 251 600x600 647 599 647 601 Halton Vita VSG frame dimensions Version 2.2...
