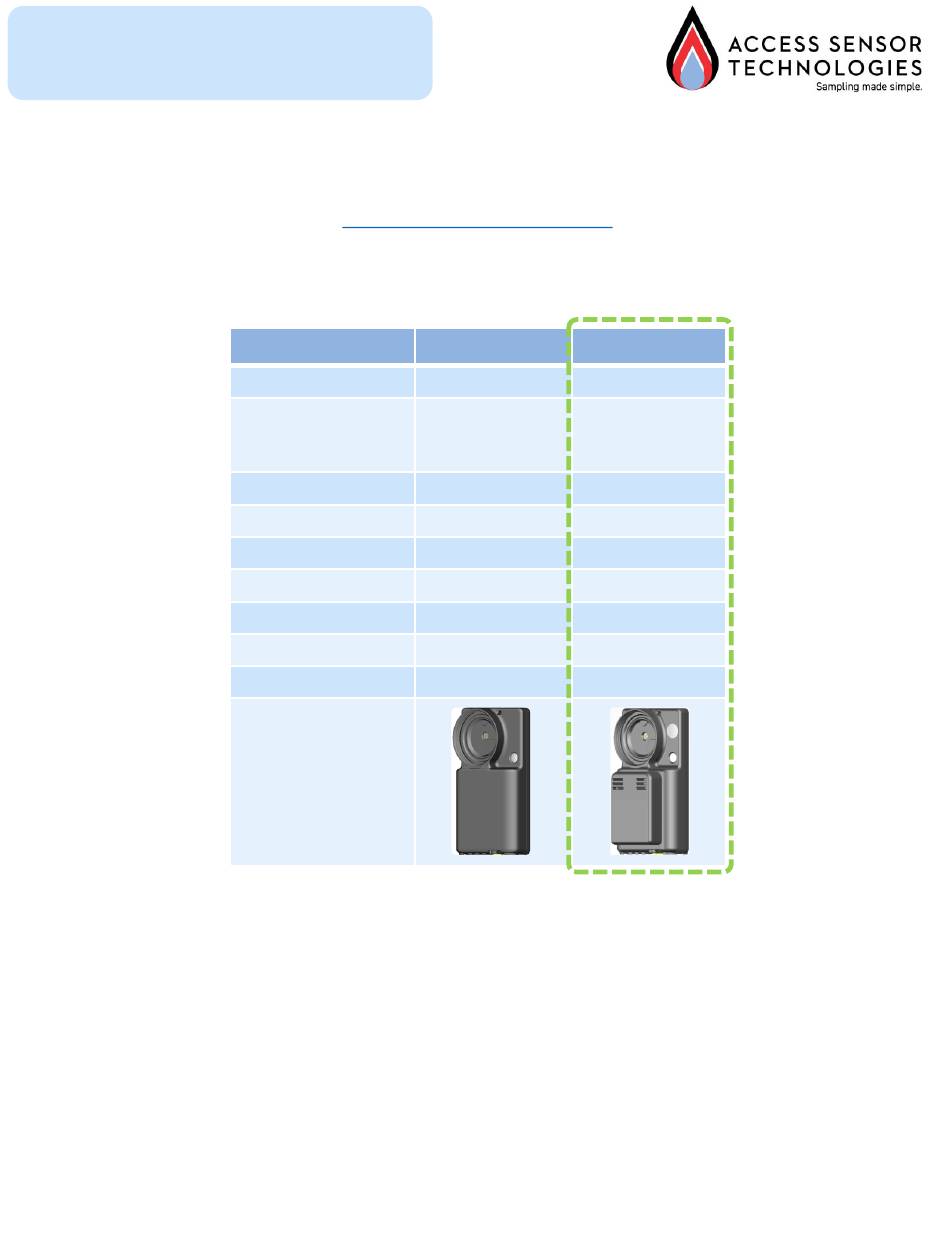

UPAS V2+ Quick Start Guide
V1R1 Date: 2022/08/05
This quick start guide can help you understand the basic functions of the UPAS V2+ and how to start collecting
samples. Visit our website for more information and/or to contact our team for help. Our team is here to make your
Please read all instructions before starting a UPAS sample.
The UPAS is available in two main configurations, the V2.0 and the V2+. This guide refers to the
❑ A hardware component: can be worn in the subject's breathing zone or mounted on a tripod (not
included) for general environmental testing
❑ A software component: The UPAS Bluetooth® interface allows programming via a mobile device and
UPAS application (free to download)
This guide is compatible with the following items specific to the
❑ PM-Inlet Generation(s): G1 and G2
❑ UPAS V2+ Firmware: Rev127 (UPAS_v2_x.NUCLEO_L476RG_RELEASE_20220603_rev127)
❑ "AST UPAS" Mobile Device App: Version 1.0.1, Build 1.0.3
air sampling experience easy and productive.
www.accsensors.com/airsampling
Feature
Filter Sampler
PM-Inlet Generation
Compatibility
Filter media size
GPS
PM sensor
2
CO
sensor
NOX and VOC sensor
Light sensor
Motion sensor
(no Filter Cartridge or
PM-Inlet installed)
The UPAS System consists of two components:
Document Compatibility:
UPAS users,
UPAS V2.0
UPAS V2+
X
X
Generation-1 (G1)
Generation-1 (G1)
and
and
Generation-2 (G2)
Generation-2 (G2)
37 mm
37 mm
X
X
X
X
X
X
X
UPAS V2+
UPAS V2+
