TrueNAS
ES102 Gen 2 Racking Guide
®
v.24041
POWER
COOLING
IOM
HDDs
ENCLOSURE
LID

Advertisement

loading
Need help?

Need help?

Do you have a question about the ES102 Gen 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TrueNAS ES102 Gen 2

Summary of Contents for TrueNAS ES102 Gen 2

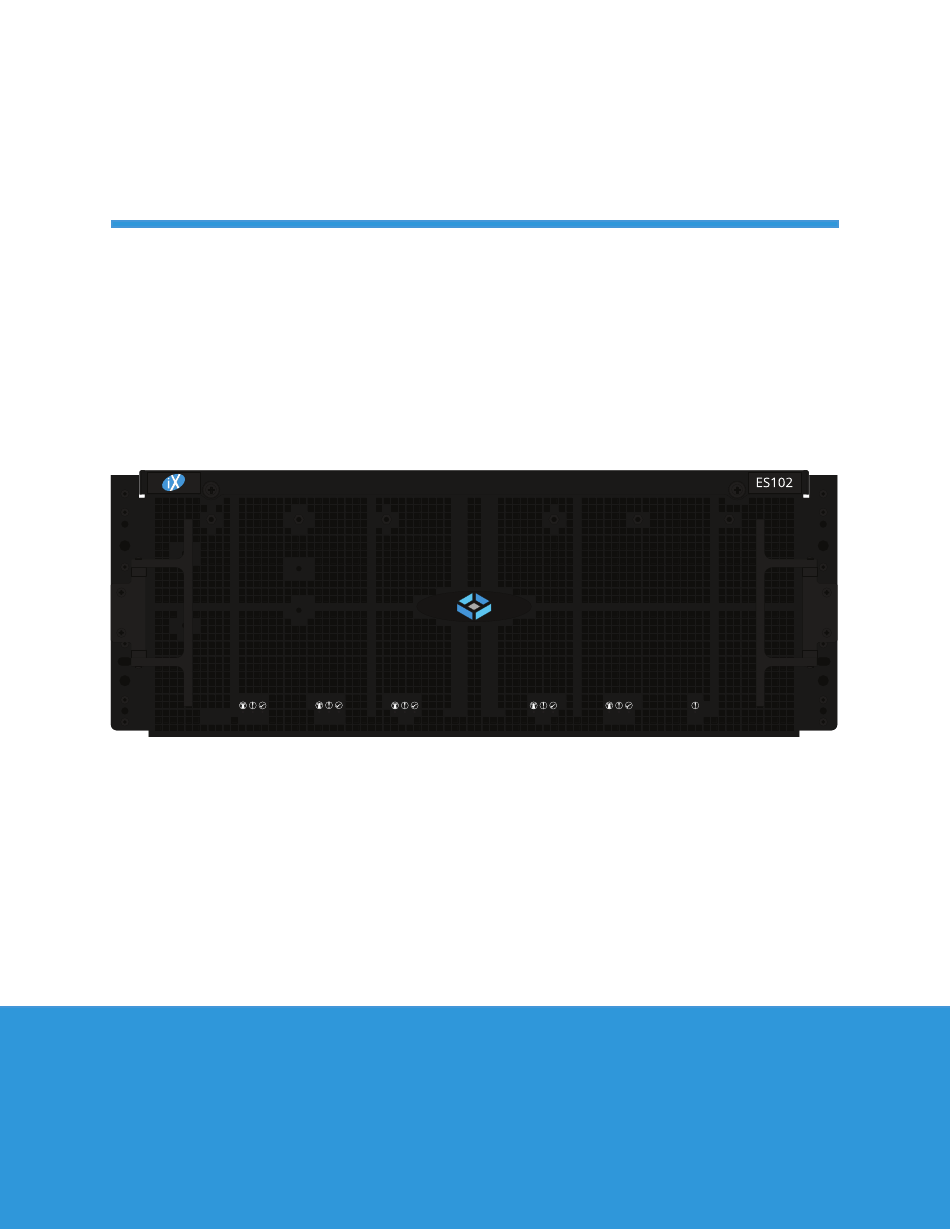

  • Page 1 TrueNAS ES102 Gen 2 Racking Guide ® v.24041 POWER COOLING HDDs ENCLOSURE...
  • Page 2 Introduction This document guides you through racking your shelf and connecting it to a TrueNAS storage array. See the back page of this document for guidance on where to access in-depth product information and setup recommendations. Note - Rack Space The ES102 requires 4U of rack space and a #2 Phillips head screwdriver to install in a rack.
  • Page 3 1 Attach the Rack Rail to the Rear Rack Post Place the rail in the rack with the “REAR” end at the rear of the rack and align the rail pins with the rack mounting holes. The top pin goes into the bottom hole of the 3rd U. The bottom pin goes into the top hole of the 1st U. Swing the blue latch handle open and pull it to extend the rail until the rail pins are fully seated in the rack holes.
  • Page 4 2 Attach the Rack Rail to the Front Rack Post Extend the “FRONT” end of the rail to the front rack post and verify the rail is level. Insert one M5 cage nut into the top hole of the 3rd U, then insert another cage nut in the middle hole of the 1st U. Place the mounting plate onto the rack post, aligning the top and bottom screw holes with the cage nuts.
  • Page 5 3 Install the System into the Service Position Team-lift the system and align the chassis rails with the rack rails. Slide the ends of the chassis rails into the rack rails and push the system into the rack until the metal safeties click and lock the system into the service position. IN G IO M C LO...

  • Page 6: Install Hard Drives

    4 Install Hard Drives The ES102 ships with all the drives and blanks you need to fully populate the enclosure, packaged separately. Drives ship attached to the drive carriers. Open a drive latch by pressing the clear plastic button on the direction of the arrows. Insert the drive carrier into a slot inside the system with the arrows on the clear plastic button pointing towards the back of the system.
  • Page 7 5 Push the System into the Rack Replace the lid on the system and tighten the thumbscrews. Press the metal safety catches on each chassis rail into the system and push the system all the way into the rack. Secure the system to the rack by tightening the two thumbscrews on each chassis ear. IN G IO M L ID...
  • Page 8 6 Install Cable Management Brackets Note - PDU and Rack Space If your rack uses a 0U PDU, you might have to temporarily remove it in order to install the screws for the CMA brackets. You might also need a longer screwdriver to properly tighten the screws. Align the right bracket with the right rear rack post and fit the top and bottom holes over the rack rail pegs.
  • Page 9 7 Install Cable Management Arm (CMA) Align the right hinge on cable management arm (CMA) with the right hinge on the cable management brackets. Pinch the spring pegs on the CMA hinge together and insert the CMA hinge into the bracket hinge, then release the spring pegs to lock the hinges together.

  • Page 10: Install Cables

    8 Install Cables Route the cables around the CMA loop starting at the top where the loop meets the CMA. Ensure the power and SAS cables have enough slack through the CMA loop to account for the CMA loop extending and retracting. We recommend that the PSU cables have at least 12 inches of slack between the system and the CMA.
  • Page 11 High Availability (HA) systems require another cable from the first port on the second TrueNAS controller to the first port on the second expansion shelf controller. Line the SAS3 cable connector up with the SAS port on the back of the system. Ensure the blue tab on the SAS cable is facing toward the left (toward the PSUs).

  • Page 12: Boot The System

    7 Boot the System Plug the power cables into PDU outlets and wait for the ES102 to boot up. After booting, the ES102 connects to the TrueNAS system it is connected to. 8 Additional Resources ES102 User Manual ES102 Resources...
