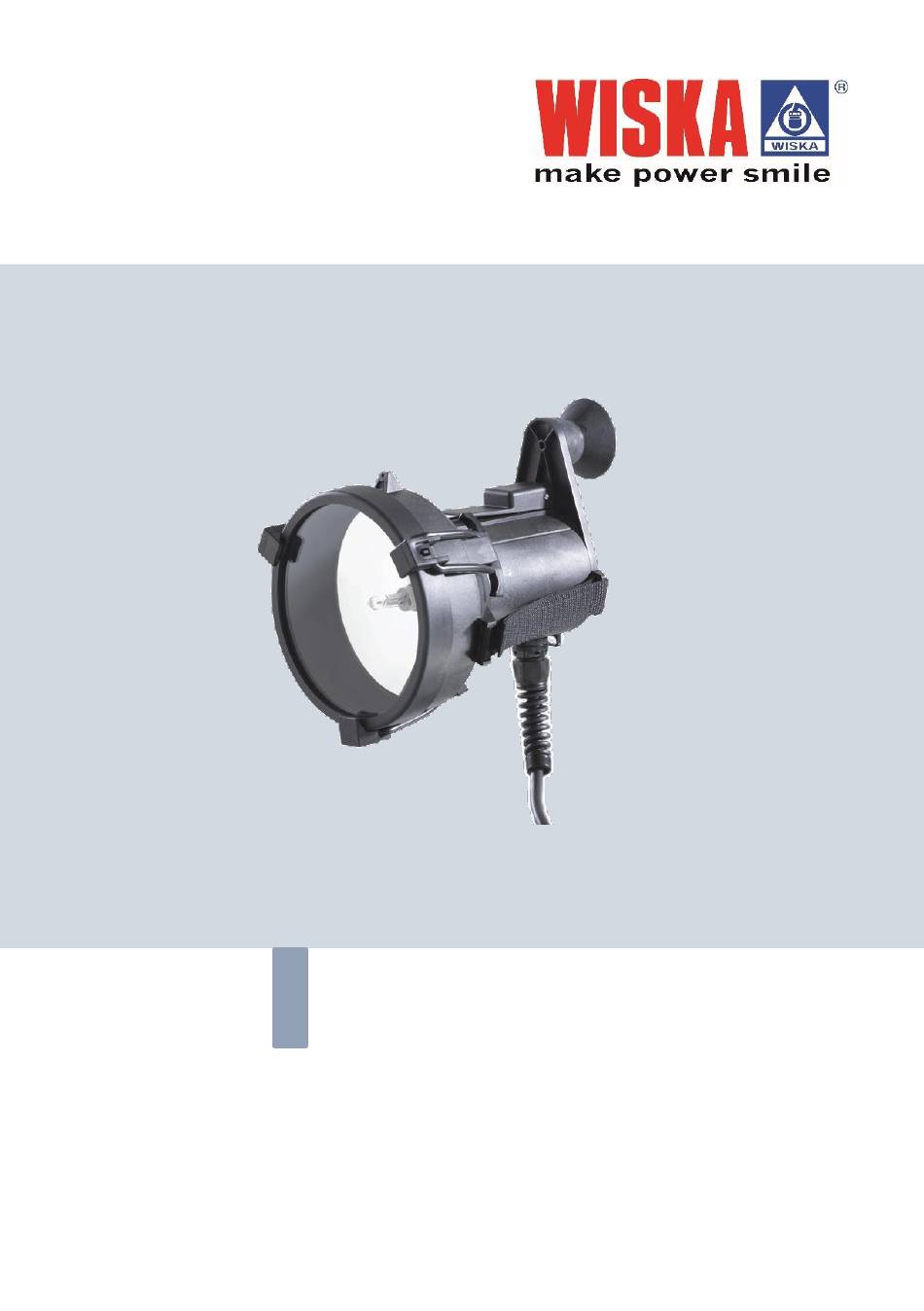

- Page 1 Operating Manual Day Signalling Searchlight HML-ISO 35...
- Page 2 Always keep the operating instructions to hand with the appliance. List of abbreviations Day signalling searchlight HML-ISO 35 Lux is the illuminance of an illuminated surface. Lux is therefore luminous flux in lumens per square meter. Candela; unit of measurement for luminous intensity...
-
Page 3: Table Of Contents
About these instructions Directory About these instructions ......5 Structure and purpose of these instructions .. 5 Users and target groups ........ 5 Safety instructions ......... 6 1.3.1 Standard Sicherheitshinweise ....... 6 For your safety ..........7 Structure of safety instructions ...... 8 2.1.1 Embedded safety instructions ....... - Page 4 Type key ............30 11.3 Nameplate ........... 31 11.4 Protection class ........... 33 11.5 Dimensions ..........33 11.5.1 HML-ISO 35 ..........33 11.5.2 Battery ............34 11.5.3 Battery charger ..........34 11.6 Electrical diagram ........35 Supplier documents and certificates..36 12.1...
- Page 5 About these instructions Edition 2.0 – 05/2024 Operating manual Artikel-Nr.: 30100574007...
-
Page 6: About These Instructions
They must be observed to avoid hazards, reduce repair costs and downtimes, and increase reliability and service life. Read the instructions carefully! WISKA Hoppmann GmbH is not liable for damage and malfunctions caused by failure to observe the operating instructions. -
Page 7: Safety Instructions
About these instructions Safety instructions 1.3.1 Standard Sicherheitshinweise WISKA safety instructions are based on the SAFE principle and derived from residual hazards in the risk assessment: • Keyword The keyword reflects the gravity of the hazard (danger, warning, caution, note). -
Page 8: For Your Safety
For your safety For your safety Always follow these safety precautions: • Read these instructions fully before using, maintaining or repairing the product. Failure to do so may place people and the product at risk. • Only qualified electricians may perform service or repair work. -
Page 9: Structure Of Safety Instructions
For your safety Structure of safety instructions The chapter describes the setup and use of the safety instructions. Before describing a potentially dangerous situation, a warning indicates the situation to be avoided. DANGER Danger refers to a hazardous situation that can result in imminent death or severe injury if not avoided. -
Page 10: Embedded Safety Instructions
...extract... ✓ The assembly has been removed. Intended use The WISKA day signalling searchlight is designed to transmit light signals and emergency signals. The range (1 lux at the target) of the spotlight is 275 meters. The searchlight has been developed for use on seagoing vessels over 150 gross register tons in accordance with SOLAS and for safety applications in coastal areas. -
Page 11: Foreseeable Misuse
The searchlight is not suitable for illuminating rooms on the ship or in buildings. Warranty If there is a defect in your product, please contact WISKA Service. Qualification of users/expertise These operating instructions apply to operators, technical personnel and operating personnel. -
Page 12: Danger Areas And Danger Points
For your safety Danger areas and danger points Danger areas or danger points are, among others: • Button (pinching the skin). • Observe the protective distance to the compass. • Observe the handling precautions for halogen lamps. Battery • Protect the battery from fire, heat, and sunlight. •... -
Page 13: Labels And Symbols
For your safety Labels and symbols Icon Meaning Hazard symbol Safety and warning notice Warns of an imminent danger. Hazard symbol Safety and warning notice Warns of an electrical hazard. Commandment Safety and sign warning notice Disconnect the system from the power supply before working on it. -
Page 14: Technical Description
Technical description Technical description Product Overview Figure 1 Overview of day signalling searchlight Pos. Designation Glass pane Lamp Signal button Target device Housing Cable Tension fasteners Front frame Edition 2.0 – 05/2024 Operating manual Artikel-Nr.: 30100574007... -
Page 15: Function And Design
Technical description Function and design The day signalling searchlight is used for manual illumination of the route in shipping traffic (search for Signalling persons) and as an emergency signal device. It is Searchlight intended bridge light signals distant destination.Tthe direction in which the signal is emitted must be maintained. -
Page 16: Transport, Unpacking
Transport, unpacking Transport, unpacking Transportation and lifting Depending on the order, the product comes in a parcel or on a pallet, for example, in weatherproof and sturdy packaging. In case of damage, contact our customer service. If required, store it temporarily in the original packing material. Transport the product to the installation location by an appropriate means of transport. -
Page 17: Commissioning
Commissioning Commissioning The preparatory measures are as follows: • Ensure that all electrical cables are securely routed or stowed away. • Make sure that the light source is connected correctly and that the seal of the LED module is seated correctly. •... -
Page 18: Operation
Operation Operation WARNING Risk of burns due to hot surface. The halogen light source develops high heat radiation during operation, which can cause severe burns if the front pane is touched. • Do not touch the front pane during operation. •... -
Page 19: Operation Via Signal Button
Operation Figure 2 Day signalling searchlight controls Pos. Bezeichnung Battery status Function switch Signal button Operation via signal button Make sure that the battery is charged. Press the signal button to switch on the day signalling searchlight. Release the signal button to switch off the day signalling searchlight. -
Page 20: Operation As A Light (Torch Function)
Operation Operation as a light (torch function) Make sure that the battery is charged. Press and hold the signal button and the function switch to switch on the day signalling searchlight. ✓ The day signalling searchlight lights up continuously. Press the signal button or the function switch to switch the day signalling searchlight off again. -
Page 21: Connecting The Battery
Operation Connecting the battery Figure 3 Connections Insert the plug into the connection socket of the battery. Observe polarity. Charge the battery if the status indicator on the day signalling searchlight lights up. ✓ The plug connection is now established. Charging the battery Charge the battery after each use and leave it connected to the charger (trickle charging). -
Page 22: Troubleshooting
Troubleshooting Troubleshooting If faults occur on the product, the necessary measures can be determined here to provide the operator with measures to rectify the fault within the scope of his possibilities. Error Cause Remedy Day signalling No power available. Establish the power searchlight supply. -
Page 23: Maintenance
Maintenance Maintenance DANGER Danger to life due to electrical currents. Working on open circuits can lead to short circuits and short circuits in the body. • A qualified electrician is required when working on electrical components. • Make sure that the system is disconnected from the electrical connection. -
Page 24: Maintenance
Maintenance WARNING Risk of burns due to hot surface. The halogen light source develops high heat radiation during operation, which can cause severe burns if the front pane is touched. • Do not touch the front pane during operation. • Allow the day signalling searchlight to cool down for at least 60 minutes after operation before opening it. -
Page 25: Repair
Maintenance Repair Please follow the steps below before carrying out any repair work: • A qualified electrician is required when working on electrical components. • Switch off the day signalling searchlight. • Lassen Sie die Anlage mindestens 60 min abkühlen. •... -
Page 26: Cleaning
Maintenance Cleaning ATTENTION Do not use cleaning agents containing alcohol or brine for cleaning. These can damage the surface and dull the glass. Clean the surface of the product with a clean, lint-free cloth and, if necessary, a solvent-free cleaning agent. Edition 2.0 –... -
Page 27: Spare Parts
Spare parts Spare parts Designation Article no. HML-ISO 35 Front frame 22000456 HML-ISO 35 Glass pane, clear 22000457 HML-ISO 35 Retaining straps 22000460 Halogen lamp 30W, 12 VDC; GY6.35 22000470 Concentric plug 22000463 Additional optios Concentric socket DK 503 22000464... -
Page 28: Entsorgung Und Stilllegung
Waste electrical and electronic equipment (Applies in the European Union and other European countries with separate collection systems). The electrical appliances of WISKA Hoppmann GmbH are professional electrical appliances, which are called business- to-business (B2B) appliances. We take back old electrical appliances in accordance with §... -
Page 29: Decommissioning
Entsorgung und Stilllegung Do not mix or dispose of used electrical appliances from WISKA Hoppmann GmbH with other commercial waste. • If there is a rechargeable battery or a battery in the device: Open the device, remove the rechargeable accumulator/battery and dispose of it properly. -
Page 30: Technical Data
Technical data Technical data 11.1 Specifications Type of illuminant Halogen Lampholder type GY6.35 12 – 24 VDC Operating voltage [V] Diffusion angle 8° I/10 Luminous intensity [cd] 90000 Range (1 lx) 300 m Signal range (visibility) 3400 m by day 21400 m at night Power of lamp [W] Average lamp lifee [h]... -
Page 31: Type Key
Technical data 11.2 Type key The type key for searchlights is as follows: Position Example Description placeholders Hand morse lamp -ISO According standard Type designation Cable length in [m] Transport container Enclosure model -Fxx Filter combination -Axx Equipment -Zxx Accessories -Sxx Special solution Edition 2.0 –... -
Page 32: Nameplate
Technical data 11.3 Nameplate Figure 4 Nameplate HML-ISO 35 Figure 5 Nameplate Battery Edition 2.0 – 05/2024 Operating manual Artikel-Nr.: 30100574007... - Page 33 Technical data Figure 6 Nameplate Battery charger The nameplate has a three-row structure. Line contents are: • Article description • Item number • Production date • Power supply • Serial number • Certifying body Edition 2.0 – 05/2024 Operating manual Artikel-Nr.: 30100574007...
-
Page 34: Protection Class
60945 standards. The product has been tested as follows: IP protection Description class IP 5X Protection against dust ingress IP X6 Protection against strong water jets (100 l/min) 11.5 Dimensions 11.5.1 HML-ISO 35 Figure7 Dimensional Drawing HML-ISO 35 Edition 2.0 – 05/2024 Operating manual Artikel-Nr.: 30100574007... -
Page 35: Battery
Technical data 11.5.2 Battery Figure 7 Dimensional Drawing Battery 11.5.3 Battery charger Figure 8 Dimensional Drawing of battery charger Edition 2.0 – 05/2024 Operating manual Artikel-Nr.: 30100574007... -
Page 36: Electrical Diagram
Technical data 11.6 Electrical diagram Figure 9 Electrical connection diagram Edition 2.0 – 05/2024 Operating manual Artikel-Nr.: 30100574007... -
Page 37: Supplier Documents And Certificates
12.3 MED and MER certificates The MED Declaration of Conformity is enclosed separately with these instructions. If this is lost, a current version can be viewed on the WISKA homepage: https://www.wiska.com/de/ Edition 2.0 – 05/2024 Operating manual Artikel-Nr.: 30100574007... - Page 38 Supplier documents and certificates Edition 2.0 – 05/2024 Operating manual Artikel-Nr.: 30100574007...
- Page 39 Supplier documents and certificates Edition 2.0 – 05/2024 Operating manual Artikel-Nr.: 30100574007...
- Page 40 WISKA Hoppmann GmbH ORIGINAL Kisdorfer Weg 28 Änderungen 24568 Kaltenkirchen vorbehalten! Germany +49 4191 – 508-0 +49 4191 – 508-209 contact@wiska.de www.wiska.com...
