Summary of Contents for Atomic Aquatics T3
- Page 1 O W N E R S M A N U A L Titanium Regulators...
-
Page 2: Table Of Contents
T2x, ST1, M1, B2, Z3/Z2 Regulator Overview..............10 Comparison Chart - Atomic Aquatics Regulator Systems ..........14 Nitrox Use - All Models ..................... 16 Nitrox Use - T3, T2x, ST1, B2, Z3/Z2 ................. 17 Nitrox Use - M1 ......................... 18 Cold Water Use / DIN ......................19 Innovative Product Features First Stages ........................ - Page 3 CE CERTIFICATION MANUFACTURER Huish Outdoors 1540 N 2200 W Salt Lake City, UT 84116 – USA HUISH OUTDOORS AUTHORIZED EUROPEAN MARKET REPRESENTATIVE: Huish Outdoors LLC (BARE Sports) Factory BLB019C, Bulebel Ind Estate Zejtun, ZTN 3000 Malta MODULE C2 CERTIFICATE MAINTAINED BY: ITALCERT S.r.l.
- Page 4 All products sold by Huish Outdoors in the EU meet the following requirements where applicable. Compliance with the following where applicable. EN 250:2014: This standard describes certain minimum performance requirements for SCUBA regulators sold in the EU. Testing identifies regulators that should not be used in water colder than 50 °F/ 10 °C, these regulators are marked >10 °C.
-
Page 5: Introduction
Thank You... for choosing Atomic Aquatics. You now own one of the finest regulators available. Since we introduced the world’s first line of Titanium diving regulators in 1997, we have continued our dedication to designing and manufacturing only the finest diving products crafted from the most durable, high-performance materials. -
Page 6: T3 Limited Lifetime Warranty
3 years. Atomic Aquatics will at its option repair or replace any components it finds defective. This warranty covers regulators only purchased from authorized Atomic Aquatics dealers. - Page 7 This warranty does not cover damage or defects due to neglect, misuse, alteration, or attempted repairs by someone other than an authorized dealer. Atomic Aquatics shall not be liable for loss of use of this product or incidental or consequential costs or damages incurred with the use of this regulator.
-

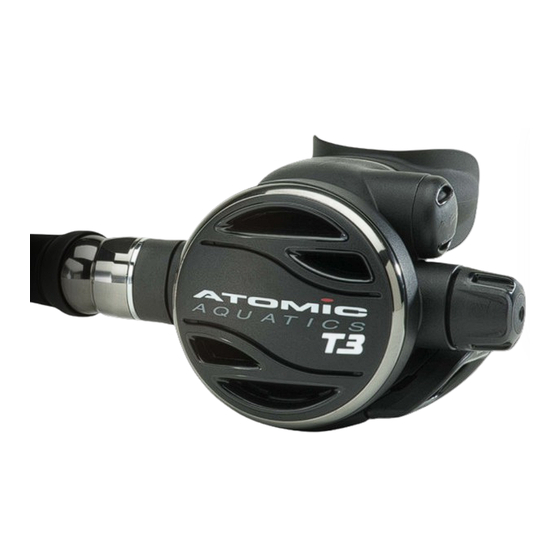

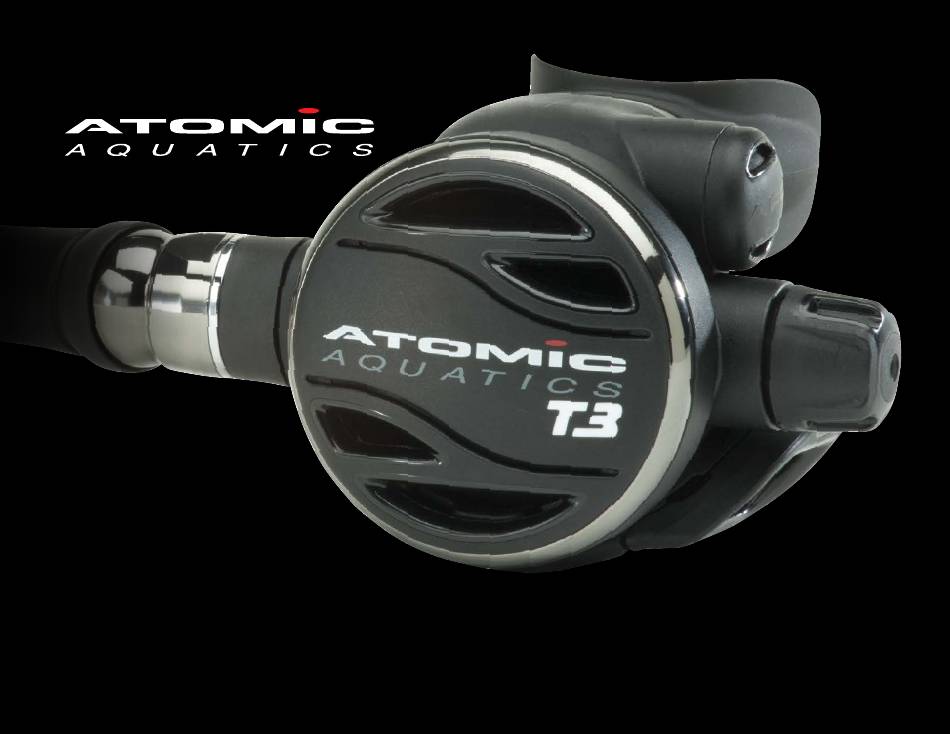

Page 8: T3 Regulator
A T O M I C A Q U A T I C S You now own the absolute finest regulator available...regardless of price. The T3 forges a new Titanium standard as our signature regulator, providing you unprecedented reliability and performance. - Page 9 Lifetime Warranty – Dive More. Wait Longer to Service. Your T3 Titanium regulator has the most courageous warranty ever developed for any regulator. Here are some important points to remember about your warranty... NOT CONTINGENT on Proof of Service: other manufacturers require you to show proof of annual service, or void the warranty.
-
Page 10: T2X, St1, M1, B2, Z3/Z2 Regulator Overview
The perfect travel regulator. The first and second stage components are machined from solid titanium. Lightweight and corrosion free. - Page 11 The only first stage machined from type 316 stainless steel able to withstand the severest conditions for a lifetime. Matched with lightweight titanium second stage and stainless steel comfort swivel. Whether recreational or technical, this regulator does it all. Extended features and performance for cave, deep, cold or enriched air diving.
- Page 12 The world’s most comfortable regulator. Features a brass first stage, titanium second stage, and stainless steel comfort swivel hose.
- Page 13 More features for the price than any other regulator. The Z2 may be the least expensive of the Atomic line, but its combination of performance, ergonomics and materials are unmatched by our competitiors at any price. The Z3 adds the comfort swivel hose feature as found on the T3, ST1 and B2.
-
Page 14: Comparison Chart - Atomic Aquatics Regulator Systems
Comparison Chart — Atomic A FIRST STAGES Compact size ✓ ✓ ✓ ✓ ✓ ✓ ✓ Balanced piston design ✓ ✓ ✓ ✓ ✓ ✓ ✓ First stage materials titanium/ titanium/ stainless/ brass/ brass/ brass/ brass/ monel monel stainless monel stainless stainless stainless... - Page 15 Aquatics Regulator Systems SECOND STAGES Pressure balanced 2nd stg. ✓ ✓ ✓ ✓ ✓ ✓ ✓ AFC automatic flow control ✓ ✓ ✓ ✓ ✓ ✓ ✓ Titanium seat saving orifice stainless ✓ ✓ ✓ ✓ ✓ ✓ Comfort swivel hose —...
- Page 16 Each Atomic reg model has been tested and passed the ASTM G-175 requirement before we certify it as SAFE for EAN. T3, T2x, B2, ST1, Z2/Z3 These regulators may be used interchangeably with air or EAN mixes of up to 40% oxygen concentration at 3500 psi maximum.
-
Page 17: Nitrox Use - All Models
WARNING NITROX (EAN) USE — ALL MODELS IMPORTANT NOTICE - READ BEFORE YOU USE THIS REGULATOR These regulators have been assembled, cleaned and made compatible for enriched air Nitrox (EAN) to a maximum 40% oxygen concentration at a maximum pressure of 3500 psi. They do not require additional cleaning or servicing. -
Page 18: Nitrox Use - M1
WARNING NITROX (EAN) USE — M1 ONLY IMPORTANT NOTICE - READ BEFORE YOU USE THIS REGULATOR The M1 has been specially designed to handle high EAN mixes. The M1 may be used interchangeably with air or EAN mixes of up to 50% oxygen concentration at 3500 psi maxiumum. -
Page 19: Cold Water Use / Din
(standard in T3, T2x, ST1 & M1). This is a rubber sleeve that fits over the ambient chamber ports of the first stage to prevent icing of the first stage. -
Page 20: Innovative Product Features
Large piston for high air flow and stable intermediate pressures. Optional freeze protection kit (Standard on T3, T2x, ST1 & M1): Ambient chamber seal kit reduces the possibility of freezing at low temperatures and seals water and contaminants out of the first stage. -
Page 21: Second Stages
Two high pressure ports and five low pressure swivel ports (T3, T2x, ST1, M1, B2) or ultra-compact 7 port fixed cap (Z2/Z3): Allows virtually any hose orientation. Limited Lifetime Warranty (All first and second stage models). Innovative Product Features — All Second Stages... - Page 22 Its high strength allows us to use fewer coils in the design for uninterrupted airflow through the second stage. Titanium Valve Body (T3, T2x, ST1, B2 only): Performance is always at its peak because the vital internal sliding surfaces will never rust or corrode.
-
Page 23: Special Features - M1
A standard feature on the B2, ST1 (stainless), Z2, Z3 (chrome plated brass) and the T3, T2x (titanium). The Atomic Aquatics Comfort Swivel can also be added to any Atomic Aquatics second stage to provide an effortless 30 degree range of motion without pulling or binding. -
Page 24: System Set-Up
Your regulator has either 5 low-pressure (LP) ports on the swivel end of the first stage (T3, T2x, ST1, M1, B2) or 7 low pressure ports (Z2/Z3) in a fixed orientation. Choose the ports that give you the best orientation for your particular set-up. The LP port plugs can be removed by unscrewing with a 5/32"... - Page 25 CAUTION Do not assemble any low pressure hoses to the HP port of the first stage. The hose could rupture and could cause serious personal injury. Do not assemble the high pressure gauge to the low pressure port or the gauge will not indicate tank pressure. Comfort Swivel Second Stage Hose Patent # 7,188,869...
-
Page 26: Operation
Operation Automatic Flow Control Flexible Purge Cover Detune Easiest Breathing ➛ Rapid Adjustment Knob... -
Page 27: Rapid Adjustment Knob
These regulators operate similarly to others of this type. There are some unique features of the Atomic Aquatics second stages you should be familiar with. RAPID ADJUSTMENT KNOB There is only one diver adjustable control on the second stage. It is the rapid adjustment knob on the side of the regulator that can be used to “detune”... -
Page 28: Automatic Flow Control
Depth Sensing Diaphragm Atomic Aquatics has developed the first and only automatic flow control that automatically changes the breathing characteristics with depth. At depth, the air density increases (gets thicker) and it becomes harder to move through the regulator. -
Page 29: Seat Saver Orifice
either overcompensate at the surface or do not provide adequate venturi at depth. The AFC is a small blade (airfoil) inside the mouthpiece that changes position with response to depth to maintain consistent, natural, effortless breathing at all depths. The blade is attached to a depth sensing diaphragm that retracts it to gradually boost the venturi the deeper you go. -
Page 30: Post Dive Care
CAUTION DO’S AND DON’TS Do set up your equipment carefully before each dive and check your entire system for signs of damage, loose hose fittings, and air leaks. Make sure the yoke knob or DIN connection is hand tight before turning on your air supply. Purge the regulator and take a test breath before entering the water. -
Page 31: Required Service
Keep away from excessive heat, humidity or insects. REQUIRED SERVICE The major service interval for the Atomic Aquatics regulators is once every 2 years or 300 dives*. We recommend that you take your regulator to an authorized Atomic Aquatics dealer annually for a safety inspection. -
Page 32: T2X, St1, M1, B2, Z2/Z3 Limited Lifetime Warranty
Atomic Aquatics warrants this regulator against defects in materials and workmanship for the lifetime of the original owner with the exception of mouthpieces, hoses, o-rings, filters, or valve seats, which are warranted for 2 years. Atomic Aquatics will at its option repair or replace any components it finds defective. - Page 33 This warranty does not cover damage or defects due to neglect, misuse, alteration, or attempted repairs by someone other than an authorized dealer. Atomic Aquatics shall not be liable for loss of use of this product or incidental or consequential costs or damages incurred with the use of this regulator. Some states do not allow this exclusion so the above may not apply to you.
- Page 34 Toll Free: (888) 270-8595 www.atomicaquatics.com M A D E I N T H E U . S . A .
