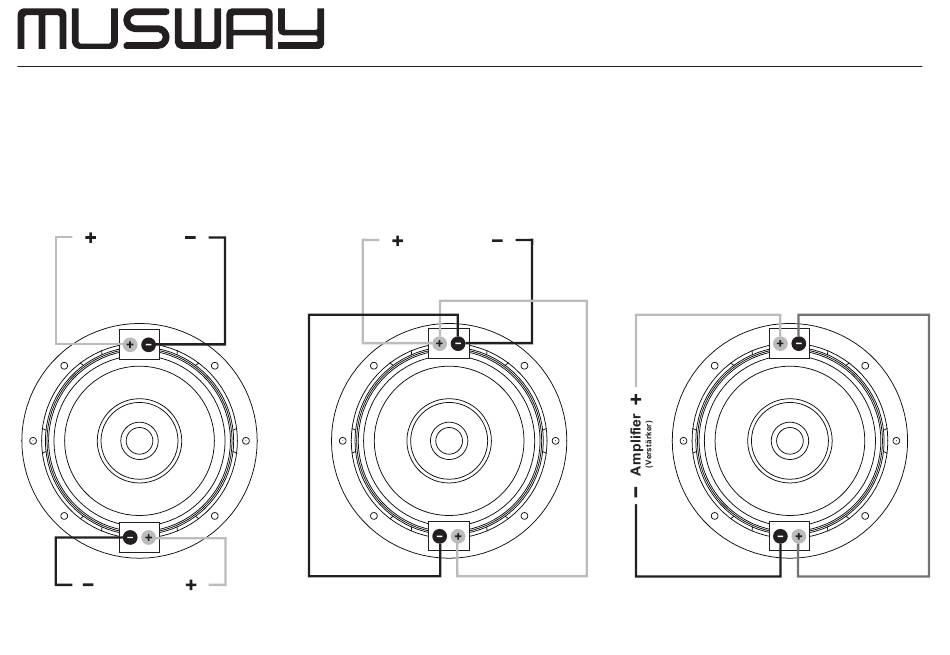

WIRING DIAGRAM
Standard
2 + 2 Ohm
Amplifier
(Verstärker)
Voice Coil 1
(Schwingspule 1)
Amplifier
(Verstärker)
Voice Coil 2
(Schwingspule 2)
(Anschlussdiagramm)
Parallel
1 Ohm
Amplifier
(Verstärker)
Voice Coil 1
(Schwingspule 1)
Voice Coil 2
(Schwingspule 2)
MWS822 / MWS1022
Serial
(Reihe)
4 Ohm
Voice Coil 1
(Schwingspule 1)
Voice Coil 2
(Schwingspule 2)
Advertisement
Related Manuals for Musway MWS822
Summary of Contents for Musway MWS822
- Page 1 MWS822 / MWS1022 WIRING DIAGRAM (Anschlussdiagramm) Standard Parallel Serial (Reihe) 2 + 2 Ohm 1 Ohm 4 Ohm Amplifier Amplifier (Verstärker) (Verstärker) Voice Coil 1 Voice Coil 1 Voice Coil 1 (Schwingspule 1) (Schwingspule 1) (Schwingspule 1) Amplifier (Verstärker) Voice Coil 2...
- Page 2 MWS822 / MWS1022 SPECIFICATIONS (Technische Daten) OUTER DIAMETER MOUNTING HOLE MOUNTING DEPTH Xmax +/- NOM. IMP. Außendurchmesser Einbauöffnung Einbautiefe max. dB/2,83V/1m MWS822 2 + 2 94,5 2 x 1,8 39,7 6,41 0,63 0,575 10,9 MWS1022 2 + 2 2 x 1,8...
