Summary of Contents for Pinell SUPERSOUND 901

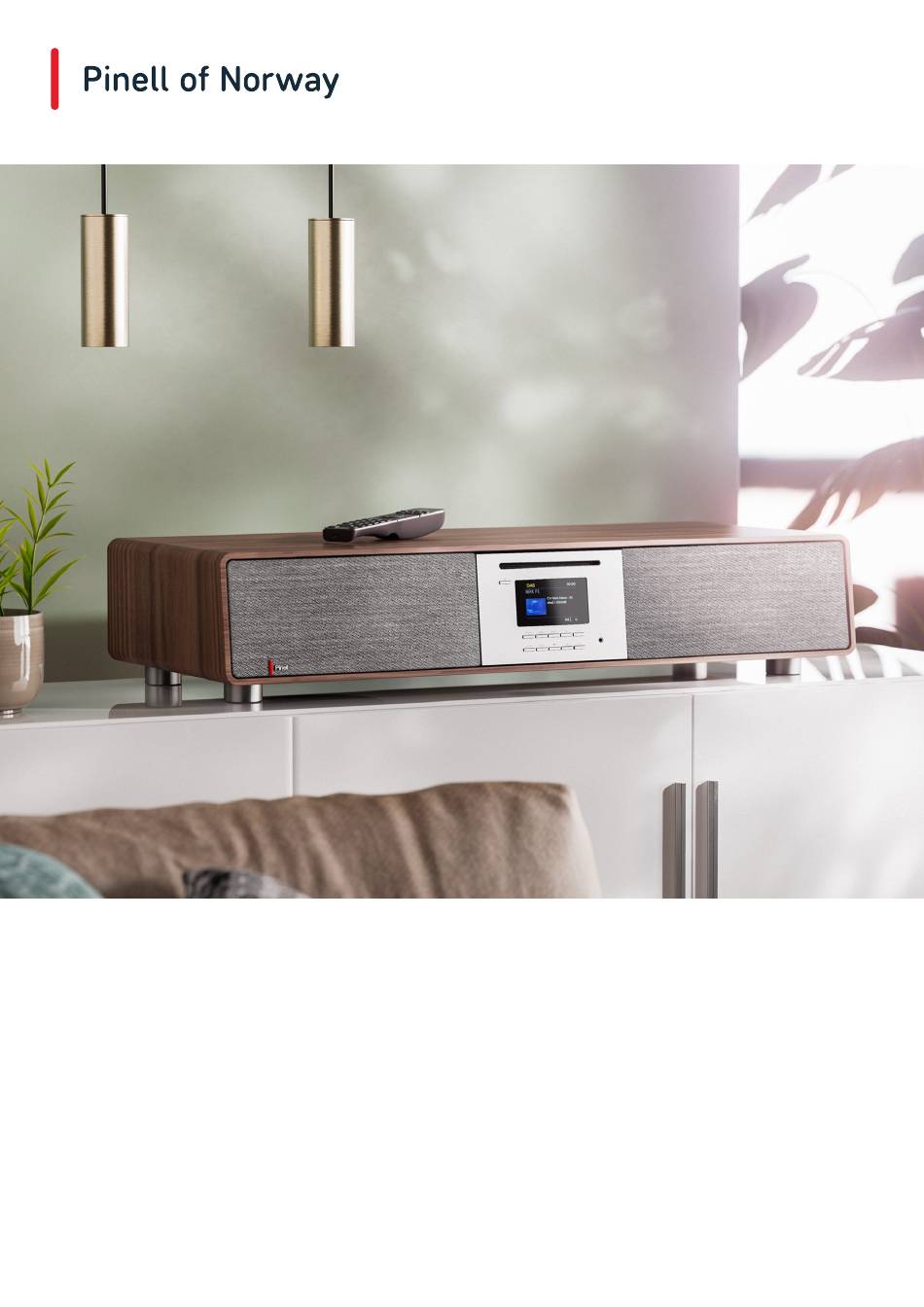

- Page 1 User Manual SUPERSOUND 901 DAB/DAB+ / FM / Internet Radio / Podcasts / Bluetooth / Spotify / CD Player...
-
Page 2: Important Safety Instructions
Important Safety Instructions • Read these instructions • Keep these Instructions • Heed all Warnings • Follow all instructions • Do not use the speaker near water • Clean only with dry cloth WARNING: DO NOT EXPOSE THIS SPEAKER TO RAIN OR MOISTURE. Do not place unit near any heat source such as radiators, heat registers, stoves, or other apparatus that produce heat. -
Page 3: Table Of Contents
Table of Contents Important Safety Instructions ......................2 Table of Contents ..........................3 Your Radio ............................5 Front View ..........................5 Rear View ..........................5 Remote Control View ....................... 6 Getting Started ..........................7 Setup Wizard ..........................8 DAB+ Mode ..........................10 Selecting DAB+ Mode ...................... - Page 4 Setting Time/Date ........................22 Setting Language ........................22 Factory Reset ........................22 Software Update – Over the network ..................23 Setup Wizard ......................... 23 Viewing System Info ......................23 Setting Backlight ........................24 Troubleshooting ..........................25 Specifications ..........................26...
-
Page 5: Your Radio
Press - select/confirm 11. EJECT button 12. Headphone jack Rear View DAB/FM ANTENNA POWER CLASS 1 LASER PRODUCT APPAREIL A LASER DE CLASSE 1 Pinell Supersound 901 TT Micro AS Postboks 150 0619 Oslo Norway AUDIO IN COAX IN OPTICAL IN 100-240V-AC... -
Page 6: Remote Control View
Remote Control View Standby button MODE MENU BACK Press - switch on the radio or put it to standby CD/Eject button Press: stop / eject CD MODE button Press - switch between DAB, FM, Internet Radio, Podcasts, Spotify, CD, Audio In and Bluetooth MENU button BASS DIMMER... -
Page 7: Getting Started
Carefully remove your radio from the box. You may wish to store the packaging for future use. What you can find inside of your package 1x Main unit Supersound 901 1x Power cable 1x Remote control and 2x AAA alkaline battery... -
Page 8: Setup Wizard
Setup Wizard For initial use, radio will ask you to choose the language: Push - select language - push SELECT to confirm The “Setup wizard” screen will appear. Press to confirm “YES” and press SELECT to start setup. Options include the following: Date/Time Set 12 or 24 hour format Auto update... - Page 9 Note: If a password (WEP/WPA) isn’t required by your network, radio will connect to the network automatically. Press to cycle through the alphanumeric character list, press SELECT to select an appointed character. Note: WEP/WPA pass codes are case-sensitive. If a wrong operation is being conducted, select to delete designated character.
-
Page 10: Dab+ Mode
DAB+ Mode Selecting DAB+ Mode Press MODE button repeatedly to select DAB mode. For initial use, radio will carry out a full scan and store stations list in memory Once the scanning is completed, the DAB+ stations will be displayed in alphanumeric order. Press to select you desired station and then press SELECT to broadcast. -
Page 11: Prune Invalid
Prune Invalid You may remove all unavailable stations from the station list. 1. Press MENU button, press to select “Prune invalid”, and then press SELECT to confirm. 2. Press to select “YES”, and then press SELECT to confirm removing all invalid stations. -
Page 12: Storing Preset Stations
Storing Preset Stations Your radio can store up to 20 of your favorite DAB+ stations. This will enable you to access your favorite stations quickly and easily. 1. While playing your favorite station, press & hold PRESET until display shows “Save to Preset”. -
Page 13: Fm Mode
FM Mode Selecting FM Mode 1. Press MODE button repeatedly to select FM mode. 2. For initial use, it will start at the beginning of the FM frequency range (87.50MHz). Otherwise, the last listened FM station will be selected. 3. To manually scan, while FM frequency shows up, push to change frequency by 0.05MHz per step. -
Page 14: Internet Radio Mode
Make a selection and press SELECT to confirm. The Station list menu is provided by the Internet Radio Portal and is therefore only accessible when Supersound 901 is connected to the Internet. Station lists and submenus may change from time to time. -
Page 15: Podcasts Mode
Make a selection and press SELECT to confirm. The Podcast list menu is provided by the Podcast Portal and is therefore only accessible when Supersound 901 is connected to the Internet. Station lists and submenus may change from time to time. -
Page 16: Spotify Connect Mode
The market provides a diverse array of streaming services. To utilize them with your Supersound 901, simply connect your device - be it a smartphone, tablet, or computer - to the Supersound 901 via Bluetooth. Then, designate the Supersound 901 as your preferred output device. -
Page 17: Audio In (Rca) Mode
Audio In (RCA) Mode Audio In allows for quick and easy connection to an MP3 player or other external audio sources. Before connecting to the mains socket, use an appropriate audio cable (not supplied) to connect to your external audio device through the Audio In sockets at the rear of unit. Connect power adapter to mains socket, press STANDBY button to switch unit on. -
Page 18: Cd Player
CD Player Improper operation can lead to damage! Do not insert recording media other than standard CD format (e.g. mini-discs) into the CD player. These may not play correctly and be ejected. Insert only one CD at a time into the CD player. Insert a CD (print side up) until it retracts inward. -
Page 19: Music Player Mode
- Clear My Playlist OCTIV App The free OKTIV app allows you to control the essential functions of your Supersound 901. Download OKTIV from the Apple Store or Google Play Store. Note: The smartphone and the Supersound 901 must be on the same Wi-Fi network. -
Page 20: General Operation
General Operation Setting Sleep (via Remote Control) This feature enables your radio to switch to standby mode by itself after a set sleep time. Press SLEEP button and then immediately press to select a sleep time out of 15/30/45/60 minutes. The sleep time options: Sleep OFF/15/30/45/60 Minutes To turn the sleep function off while the sleep timer is still counting down, select “Sleep”, press... -
Page 21: Setting Equaliser
Setting Equaliser This feature enables you to choose a sound equalization profile. Each of the equalization setting will change the tone of the sound from your radio when selected. Press MENU button - System settings - Equaliser, and then press SELECT to confirm. Press - select profile - press SELECT. -
Page 22: Setting Time/Date
Setting Time/Date Press MENU button - System settings - Time/Date, press SELECT to confirm. Press to select options, and then press SELECT to confirm the setting. Set Time/Date Manually set-up both Time and Date “Update from DAB”, “Update from FM”, “Update from Auto update Network”... -
Page 23: Software Update - Over The Network
Software Update – Over the network From time to time, your radio may make software upgrades available with bug fixes and/or additional features. If your radio detects that newer software is available, it will ask if you want to go ahead with an update. -
Page 24: Setting Backlight
Setting Backlight This radio display has a backlight with adjustable brightness level. Press MENU button - System settings - Backlight, press SELECT to confirm. Press to select “Power-on mode” or “Standby Mode”, then press SELECT to confirm. Press to select backlight level, and then press SELECT to confirm the setting. Timeout On - During operation, brightness always remains as set in "Power-on Level"... -
Page 25: Troubleshooting
Troubleshooting If a problem occurs, it may be due to something very minor. The following table contains various tips. Problem Solution No Power. l Ensure the mains cable is properly connected or battery power is not used up. l Make sure that the unit is turned on. The unit does not respond l The unit may freeze up during use. -
Page 26: Specifications
Modino AS hereby declares that this wireless device is in compliance with the following directives: 2014/53/EU (RED) 2011/65/EU (RoHS) Information in this manual is subject to change without notice. Pinell is a label of Modino AS (www.modino.no) Trondheimsveien 183, 2020 Skedsmokorset, Norway (Email: Support@pinell.no)
