INSTALLATION INSTRUCTION

This dishwasher should be installed before use. Please do not use the machine before the inlet pipe and discharge pipe are installed! Disconnect electrical power before installing the dishwasher.
The installation of the pipes and electrical equipment should be done by trained professionals.

1. Inlet Pipe Connection
   Turn the connection at the elbow end of the water pipe 90-degrees. Screw the needle into the water inlet on the back of the dishwasher and tighten it.

   Water inlet valve installation diagram.

2. Drain Hose Connection
   Place the outlet of the dishwasher's drain hose into the sink or connect directly to the drainpipe.

3. Power Cord Connection
   Locate the power cord plug port on the back of the dishwasher and insert into the wall outlet.

4. Connect to Water Source
   Screw the cold water supply hose to a 3/4 inch threaded connector and make sure it is fastened tightly in place. If the water pipes are new or have not been used for a long period, let the water run till it's clear without impurities. Otherwise there is a risk that the water inlet can get jammed and the appliance could become damaged.


DISHWASHER PARTS

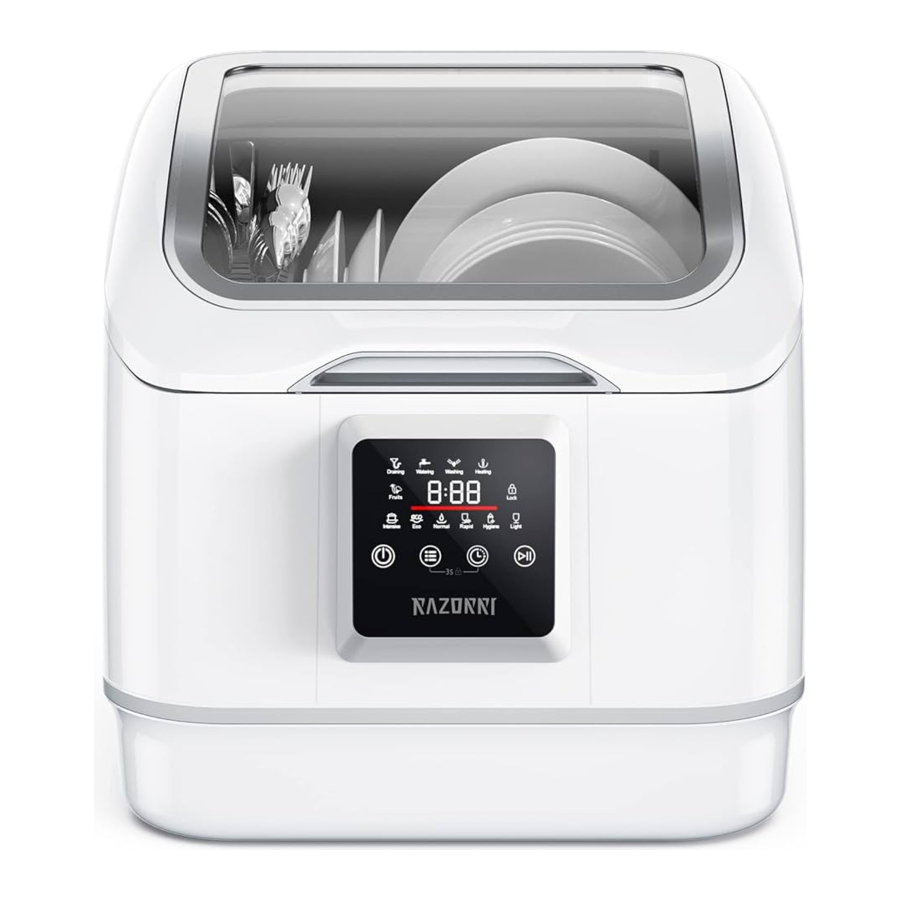

Front View

1. Glass View Window
2. Door Handle
3. Spinning Spray Arm with 13 Water Ports
4. Detergent Powder Slot
5. Control Panel
6. Silverware Basket
7. Dish Basket

BEFORE THE FIRST USE

Before using your dishwasher for the first time:

1. Power on
   1. voltage must be 110-127V with a frequency of 60HZ
   2. Do not plug in with a wet hand to prevent electric shock
2. Placing dirty dishes
   Scrape off all removable residue on the dishes before placing to the dish basket
3. Add detergent powder

   1. Put the proper amount of detergent powder into the slot.
   2. Close the dishwasher door and make sure it is properly sealed. (Well sealed with slot and tab)

Please use detergent powder designed especially for dishwashers. Other solvents or detergents
should not be used with this appliance.
Check if the dishwasher door is closed before starting. When closing the door, the dishwasher
can only be started after the slot of the inner door is aligned with the tab of the outer shell.

4. Start the dishwasher
   1. Press the "Power" button
   2. Choose proper washing program by cycling through the "Mode" button
   3. Press the "Start/Pause" button to start washing

NOTE:

• During the washing process, please press the "Start/Pause" button first and wait until the machine stops operation before opening the door.
• It requires a certain time to finish the whole washing process, please wait patiently
• Do not touch the glass window while the machine is running to avoid high temperature scalding!

OPERATING INSTRUCTION

Panel Diagram

Control Panel

Icon	Function	Description
	On/ Off	Turn the appliance on and off.
	Mode	Cycle 7 washing modes: Normal, Rapid, Hygiene, Light, Fruits and Intensive (the selected mode will be flashing)
	Delayed start	Cyclefrom H:01 to H:24 (Ihr - 24hrs)
	Child Lock	After any washing mode starts, hold the "Mode" and "Delayed-start" buttons together for 3 seconds to lock the whole control panel. Hold them again for 3s to unlock.
	Start / Pause	After selecting a washing program, press once to Start the process, press again to Pause.

Display Panel

Icon	Function	Description
	Timer	Washing process's countdown timer, or display H:01 - H:24 for delayed start.
	Normal Washing Mode	For daily loads, run 58 mins (timer: 0:58) with 6.8L of water higher than 120°F. Requires 20g of detergent powder.
	Rapid Washing Mode	For a small quantity of dishes, run28 mins (timer: 0:28) with 5.2L of water higher than 120°F. Requires 8g of detergent powder.
	Hygiene Washing Mode	For quick-wash, sterilizing cutlery (such as baby bottles), or slightly contaminated cutlery, run 38 mins (timer: 0:38) with 3.8L of water higher than 160°F water and NO detergent powder.
	Light Washing Mode	For lightly soiled loads, run 48 mins (timer: 0.48) with 5.2L of water higher than 115°F water. Requires 8g of detergent powder.
	Fruits Washing Mode	For fruits and root vegetables, run16 mins (timer: 0:16) with 3.5L of water higher than 95°F water and NO detergent powder.
	Intensive Washing Mode	For dirty loads in higher temperatures, run 108 mins (timer: 1:48) with 8L of water higher than 120°F. Requires log of detergent powder.
	ECO Washing Mode	For daily loads with longer timer but lower energy, run 98 mins (timer: 1:38) with 6L of water higher than 115°F. Requires log of detergent powder.
	Draining	The appliance will drain the remaining water before every washing cycle. The Draining icon will flash.
	Watering	When the appliance is filling with water, the Watering icon will flash.
	Washing	Flashes during the washing process.
	Heating	Flashes while the water is heating.
	Hot Rinse	Flashes together for hot rinse.
	Lock	The lock indicator lights up while the control panel is locked.

Wash Cycle Table

At the End of the Wash

When the working cycle has finished, the buzzer of the dishwasher will ring 6 times. Turn off the appliance using the POWER button, shut off the water supply, and open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

Loading the Dishwasher Baskets

For best performance of the dishwasher, follow these loading guidelines.

Dish Basket Tableware Placing

You are recommended to place tableware as per the standard of the following figure.

1. Melamine bowl
2. Soup plate
3. Melamine dessert plate
4. Dessert plate
5. Dessert bowl
6. Glass
7. Cup
8. Saucer
9. Mug
10. Graw ladle
11. Soup spoon
12. Teaspoon
13. Dessert spoon
14. Serving fork
15. Knife
16. Fork

Suggestions for Selection

General household tableware can be washed in this dishwasher. But, the washing environment (temperature, detergent powder, etc.) in the dishwasher may have a varied impact on tableware of different materials. Please carefully refer to notes specified in the following table.

Precautions for Tableware Plating

To realize best washing effect and optimal dishwasher performance, please follow the operation methods specified below:

1. Before loading tableware, remove large food residue.
2. Tableware should be placed with a gap in between, mounted on its side with concave side facing down.
3. Tableware should be placed securely to avoid pooling water in bowls and cups due to turnover during the washing process.
4. Tableware should not extend from the basket bottom which may resist wash arm rotation.
5. Small gadgets will drop from the basket easily. we don't suggest washing them with this dishwasher.
6. Place sharp knives or forks with handles facing upward to prevent hand injury.

NOTE: Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint. If you buy new dishes please make sure that they are suitable for dishwashers.

Do not let any item extend through the bottom of the dish rack and impede the rotating arm.
NOTE: Please do not overload your dishwasher. There is only space for 4 standard dishes. Do not use dishes that are not suitable for dishwashers.
Caution of Damage to Glassware and Other Dishes

Possible causes:

• Type of glass or manufacturing process. Chemical composition of detergent.
• Water temperature and duration of dishwasher programme.

Suggested remedy:

• Use glassware or porcelain dishes that have been marked dishwasher-proof by the manufacturer.
• Use a mild detergent that is described as a kind of dish. If necessary, seek further information from detergent manufacturers.
• Select a programme with a low temperature.
• To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended.

Maintenance and Cleaning

The filtering system prevents the large food residue or other objects from entering the washing pump. Clean up and maintain the filtering system for better use.

Cleaning the Filter

1. Lift the Flip row up 90 degrees until the filter can be fully seen.
2. Rotate the filter counterclockwise to take out.
3. Disassemble 3 parts of the filter to clean.
4. Reassemble the filter back and insert it back into the dishwasher. Rotate clockwise to reinstall.
5. Put the Flip row back down.

1. Do not operate the dishwasher without the filter installed.
2. During cleaning, do not knock on the filter which may cause filter deformation and lower washing performance.

Cleaning the Spray Arm

The sprayer should be cleaned periodically as the substances in tap water may block the water ports and spinning axle. Use mild soapy water to rinse the sprayer and brush the holes gently. Completely rinse clean and reinstall.

• Pull upward on the sprayer to remove
• Use a fine tool or brush to clean the the sprayer holes

Never use a spray cleaner to clean the door panel as it could damage the door lock and electrical components. It is not recommended to use abrasive agents or some paper towels because of the risk of scratching or leaving spots on the stainless steel surface.

Cleaning Limescale

White limescale may accumulate on the tub and heating plate of the dishwasher with hard water which will decrease the heating effect. Please clean the heating panel periodically.

1. Remove the filter and place it into the dish basket.
2. Start the "Intensive" mode without any tableware. After the Intensive washing mode has been running for 2-10 minutes, press the "Pause" button and open the door.
3. Fill 100ml vinegar or 50g anti-scaling agent (If the limescale accumulates excessively, add more vinegar or anti-scaling agents such as over 200ml vinegar or 75-150g anti-scaling agent.) and close the door.
4. After the "Intensive" program finishes, there may be a small amount of limescale film on the heating plate, please gently wipe it away.

Cleaning the Dishwasher

Wipe the control panel with a wet cloth gently and then let it dry thoroughly. Do not use any sharp objects, steel wool, or intense detergent to clean any part of the dishwasher.
Clean the door edge ONLY with a soft wet cloth. Don't use any spray which may penetrate into the door lock and control panel. Meanwhile, don't use abrasive objects, it may damage the surface.

Keep Your Dishwasher in Shape

• After every use, please disconnect the power and open the door to prevent dampness or odor generation.
• Disconnect the power plug before cleaning or performing maintenance.
• Do not use solvents or abrasive cleaning products to clean the exterior and rubber parts of the dishwasher. Use only a cloth and warm soapy water. To remove spots or stains from the surface of the interior, use a damp cloth and a little white vinegar, or a cleaning product made specifically for dishwashers.
• If the dishwasher is placed under 32°F, you are suggested to find customer service for taking following measures:
  1. Disconnect the dishwasher power.
  2. Close the water supply equipment and disconnection between the inlet pipe and faucet.
  3. Drain the remaining water from the inlet pipe and the water valve.
  4. Re-connect the inlet pipe and faucet.
  5. Don't take out the filter from the tub nor suck the water from the water cup with a sponge, which may also cause machine damage or leave traces on the surface.
• If you are not going to use the dishwasher for several weeks, please operate the dishwasher with the "Intensive" washing program, disconnect the power, close the water inlet, and slightly open the door of the dishwasher.
• One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this.

1. Please carefully read the User Manual containing safe installation, operation and product maintenance.
2. Please keep the User Manual for future reference.
3. If the product is sold, presented or moved, please keep the User Manual along with the machine for new user's reference and benefit.
4. After pressing Pause, don't open the door before the machine stops operation to prevent burn danger!
5. Be careful with the steam and hot water when opening the door!
6. Carefully check if the door is closed!
7. Before re-starting the dishwasher, please check the settlement of the tableware and confirm if there is any tableware extending out from the bottom dish basket!

Troubleshooting Tips

Error Codes

When some malfunctions happen, the appliance will display error codes to warn you with the appropriate code flashes on the dishwasher display panel and the buzzer rings.

Before Asking for Service

Technical Data Sheet

IMPORTANT SAFEGUARDS

Before using this electrical appliance, the following basic precautions should always be followed:

HYDROGEN GAS IS EXPLOSIVE
Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used in your home for such a period, before using the dishwasher, turn on all other hot water faucets and let water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

PROPER USE

1. Do not abuse, sit on, or stand on the door or dish basket of the dishwasher.
2. Do not touch the heating element during or immediately after use.
3. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.
4. Do not place any heavy objects or stand on the door when it is open. The appliance could tip forward.
5. When loading items to be washed:
   • Locate sharp items so that they are not likely to damage the door seal;
   • Load sharp knives with the handles up to reduce the risk of cut-type injuries;
   • Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
6. When using your dishwasher, you should prevent plastic items from contacting the heating element.
7. Check that the detergent receptacle is empty after completion of the wash cycle.
8. Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
9. Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry detergent, or handwashing detergent in your dishwasher.
10. Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3mm contact separation in all poles.
11. Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher as there could still be some detergent left inside.
12. Young children should be supervised to ensure that they do not play with the appliance.
13. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
14. Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with skin and eyes, and keep children away from the dishwasher when the door is open.
15. The door should not be left in the open position since this could present a tripping hazard.
16. If the supply cord is damaged it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
17. Please dispose of packaging materials properly.
