EGO Power Plus SSA1200 - SNOW SHOVEL ATTACHMENT Manual

SAFETY SYMBOLS

Read, understand and follow all instructions on the machine and in the manual(s) before operating this unit. Be thoroughly familiar with the controls and the proper use of the machine. Know how to stop the unit and disengage the controls quickly.
Residual risk! People with electronic devices, such as pacemakers, should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker.

To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician.
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

Be sure to read and understand all safety instructions in this Operator's Manual, including all safety alert symbols such as "DANGER", "WARNING", and "CAUTION" before using this tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

SYMBOL MEANING

SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION, may be used in conjunction with other symbols or pictographs.

The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.

SAFETY INSTRUCTIONS

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate it.

Precautions that involve your safety.

Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.

Keep feet away from rotating impeller.

This product is in accordance with applicable EC directives.

To reduce the risk of injury, user must read the operator's manual before using this product.

Do not use hands to unclog the chute.

Do not use in the rain or leave outdoors while it is raining.

This product is in accordance with applicable UK legislation.

Waste electrical products should not be disposed of with household waste. Take to an authorized recycler.
V: Voltage
cm: Centimeter
: Direct Current
IPX4: Protection against ingress of water degree 4.
mm: Millimeter
kg: Kilogram

GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool.

WORK AREA SAFETY

• Keep the work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust devices can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Remove the battery pack, if detachable, from the power tool and/or activate any battery disabling device before clearing jammed material, making any adjustments, changing accessories, cleaning, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surface dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
• Keep cables away from the working area of the tool. During operation cables may be hidden from view and can be accidentally damaged by the tool.

BATTERY TOOL USE AND CARE

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 100°C may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

TRAINING

• Read, understand and follow all instructions on the machine and in the manual(s) before operating this tool. Be thoroughly familiar with the controls and the proper use of the equipment. Know how to stop the tool and disengage the controls quickly.
• Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction.
• Keep the area of operation clear of all persons, particularly small children.
• Exercise caution to avoid slipping or falling, especially when operating the snow shovel attachment in reverse.

PREPARATION

• Never operate the machine while people, especially children, or pets are nearby.
• Wear eye protection and stout shoes at all times while operating the machine.
• The distance between the machine and bystanders shall be at least 15 m.
• Never operate the machine while the operator is tired, ill or under the influence of alcohol or other drugs.
• Thoroughly inspect the area where the equipment is to be used and remove all doormats, sleds, boards, wires, and other foreign objects.
• Do not operate the equipment without wearing adequate winter garments. Avoid loose-fitting clothing that can get caught in moving parts. Wear footwear that will improve footing on slippery surfaces.
• Always wear safety glasses or eye shields during operation or while performing an adjustment or repair to protect eyes from foreign objects that may be thrown from the machine.
• Use extension cords and receptacles as specified by the manufacturer for all units with electric starting motors.
• Never attempt any adjustment while the motor is running (except when specifically recommended by manufacturer).

OPERATION

• Do not put hands or feet near or under rotating parts. Keep clear of the discharger opening at all times.
• Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic.
• After striking a foreign object, stop the motor, remove the battery pack, thoroughly inspect the snow shovel attachment for any damage, and repair the damage before restarting and operating the snow shovel attachment.
• If the unit should start to vibrate abnormally, stop the motor and check immediately for the cause. Vibration is generally a warning of trouble.
• Stop the motor whenever you leave the operating position, before unclogging the auger assembly housing, and when making any repairs, adjustments or inspections.
• Exercise extreme caution when operating on slopes.
• Never operate the snow shovel attachment without proper guards and other safety protective devices in place and working.
• Never direct the discharge toward people or areas where property damage can occur. Keep children and others away.
• Do not overload the machine capacity by attempting to clear snow at too fast a rate.
• Never operator the snow shovel attachment at high transport speeds on slippery surfaces. Look behind and use care when operating in reverse.
• Use only attachments and accessories approved by the manufacturer of the snow shovel attachment (such as the scraper bar).
• Never operate the snow shovel attachment without good visibility or light. Always be sure of your footing, and keep a firm hold on the handles. Walk; never run.
• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 100°C may cause explosion.
• Use only with the battery packs and chargers listed in fig. B.


CLEARING A CLOGGING AUGER ASSEMBLY

Hand contact with the rotating auger assembly is the most common cause of injury associated with snow shovel attachment. Never use your hand to clean out the rotating auger assembly.
To clear the auger assembly:

• SHUT THE TOOL OFF!
• Remove the battery pack from the tool.
• Wait 10 seconds to be sure the auger has stopping rotating.
• Always use the auger clean tool which is attached to the machine as an accessory, do not use your hand.

MAINTENANCE AND STORAGE

• Check all bolts or fasteners at frequent intervals for proper tightness to be sure the equipment is in safe working condition.
• Always refer to operator's manual for important details if the snow shovel attachment is to be stored for an extended period.
• Maintain or replace safety and instruction labels, as necessary.
• Run the machine a few minutes to prevent freeze-up of the auger assembly.

SPECIFICATIONS

• The above parameters are tested and measured equipped with power head PH1400E.
• The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;
• The declared vibration total value may also be used in a preliminary assessment of exposure.

NOTICE: The vibration emission during actual use of the power tool can differ from the declared value in which the tool is used; In order to protect the operator, user should wear gloves and ear protectors in the actual conditions of use.

DESCRIPTION

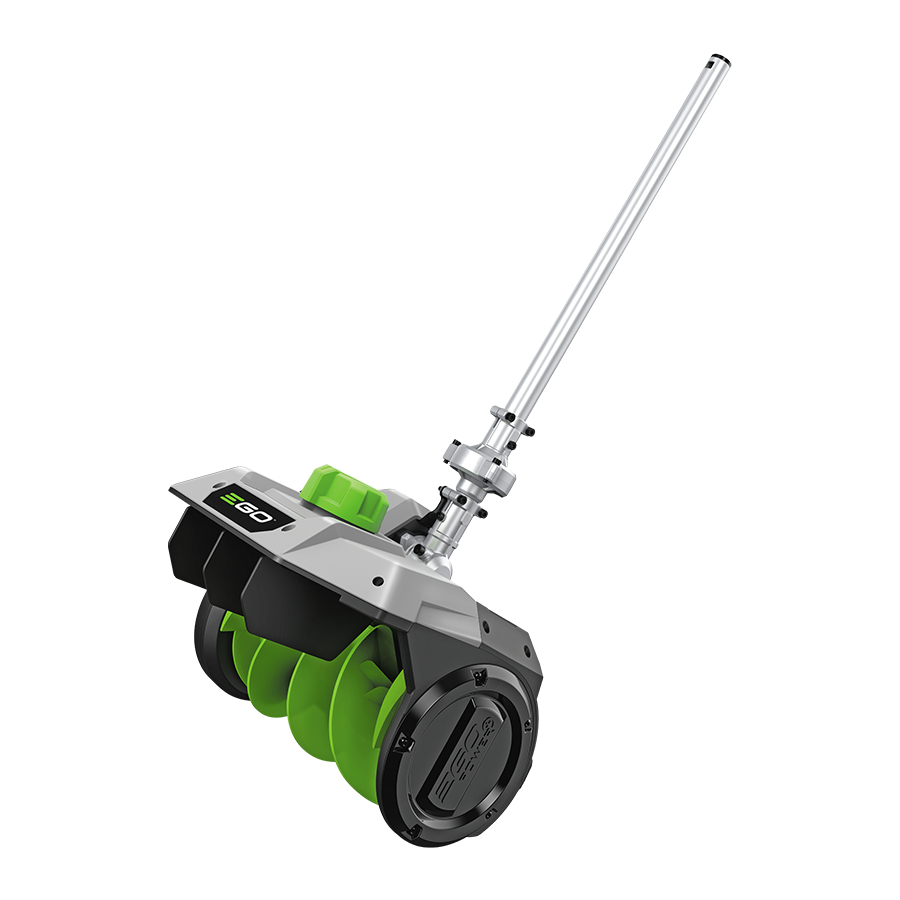

KNOW YOUR SNOW SHOVEL ATTACHMENT

1. Deflector Adjust Knob
2. Shaft
3. Sealing Screw
4. Deck
5. Deflector
6. Scraper Bar
7. Auger
8. Auger Shaft
9. Hex Wrench
10. End Cap

ASSEMBLY

If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

UNPACKING

• Inspect the tool carefully to make sure that no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily operated the tool.

CONNECTING THE SNOW SHOVEL ATTACHMENT TO THE POWER HEAD

This snow shovel attachment is designed for the use with EGO Power Head PH1400E.
See "INSTALLING AN ATTACHMENT TO THE POWER HEAD" section in the power head PH1400E operator's manual.

REMOVING THE ATTACHMENT FROM THE POWER HEAD

See "REMOVING THE ATTACHMENT FROM THE POWER HEAD" section in the power head PH1400E operator's manual.

OPERATION

Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

Always ware safety goggles or safety glasses with side shields and a full face shield when operating this product. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.

APPLICATIONS

You may use this product for the purpose listed below:

• Cleaning small areas and light working conditions such as courtyards, walkways, and garages.

USING THE SNOW SHOVEL ATTACHMENT WITH POWER HEAD

Never use snow shovel attachment on frozen lakes, rivers or similar surfaces. Death or serious injury could occur if the ice breaks.

Never use the snow shovel attachment on a rooftop or other unstable surface, which can result in death or serious injury.

Do not use the snow shovel attachment on ice, which can cause the operator to slip and fall, resulting in possibly serious personal injury.

Do not wear loose clothing, scarves, or jewelry. They can be caught in moving parts and cause death or serious personal injury.

Never point the snow shovel attachment in the direction of people or pets. Thrown snow or other objects can cause serious personal injury.

Make sure that the area to be cleared is free of stones, sticks, wires, gravel, and other objects that could be accidentally thrown by the snow shovel attachment in any direction and cause serious personal injury to the operator and others.
When using the snow shovel attachment, hold the tool with a firm grip with both hands while in operation.

• Take notice of the direction of the wind before beginning. When possible, discharge snow in the same direction as the wind to prevent snow from being thrown back into your face.
• Some parts of the snow shovel attachment can freeze under extreme weather conditions. Do not attempt to operate the tool with frozen parts.
• If the tool contacts with any type of obstruction during operation, stop it and remove the battery pack. Check the tool carefully before using.
• If the snow is too thick and deeper than the clearing depth, it may take more than one pass to clear.

When finished, let the tool run for a few minutes to allow all snow to clear the auger before storing.

TO START/STOP THE TOOL

See "STARTING/STOPPING THE POWER HEAD" section in the power head PH1400E operator's manual.

DEFLECTOR ADJUST KNOB

The discharge direction of this snow shovel attachment can be changed by rotating the deflector adjust knob left, forward, or right.
The maximum adjusting range of the knob is 60° (30° to the left or right).
The knob will be locked when it is in the leftmost or rightmost position. Press the knob and rotate it in reverse to unlock it.

MAINTENANCE

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

When cleaning the snow shovel attachment, DO NOT immerse it in water or other liquids.

MOUNTING AND DETACHING THE SCRAPER BAR

1. Remove the battery pack from the power head.
2. Lay the snow shovel attachment on its side or any other convenient position for scraper bar service.
3. Remove the four screws in the front of the scraper bar, as well as the two screws at both ends. Use a screwdriver (not included) to unscrew them.


   E-1	Scraper Bar

4. Replace the worn scraper bar with a new one, if necessary.
5. To reassemble, insert a new scraper bar, with the six holes aligned, insert the six screws into the holes and secure them with a screwdriver (not included).

TRANSMISSION GEARS LUBRICATION

The transmission gears in the gear case need be lubricated periodically with gear grease. Check the gear case grease level about every 50 hours of operation by removing the sealing screw on the side of the case.
If no grease can be seen on the sides of the gear, follow the steps below to fill with gear grease up to 3/4 capacity.
Do not completely fill the transmission gear case.

1. Position the attachment upright so that the sealing screw is facing upwards.


   G-1	Gear Case
   G-2	Sealing Screw

2. Use the multi-function wrench provided to loosen and remove the sealing screw.
3. Use a grease syringe (not included) to inject some grease into the screw hole; do not exceed 3/4 capacity.
4. Tighten the sealing screw after injection.

TRANSPORTING AND STORING

• Remove the battery pack from the tool.
• Clean the tool thoroughly before storing it.

Store the tool in a dry, well-ventilated area, locked-up or up high, out of the reach of children. Do not store the tool on or adjacent to fertilizers, gasoline, or other chemicals.

TROUBLESHOOTING
