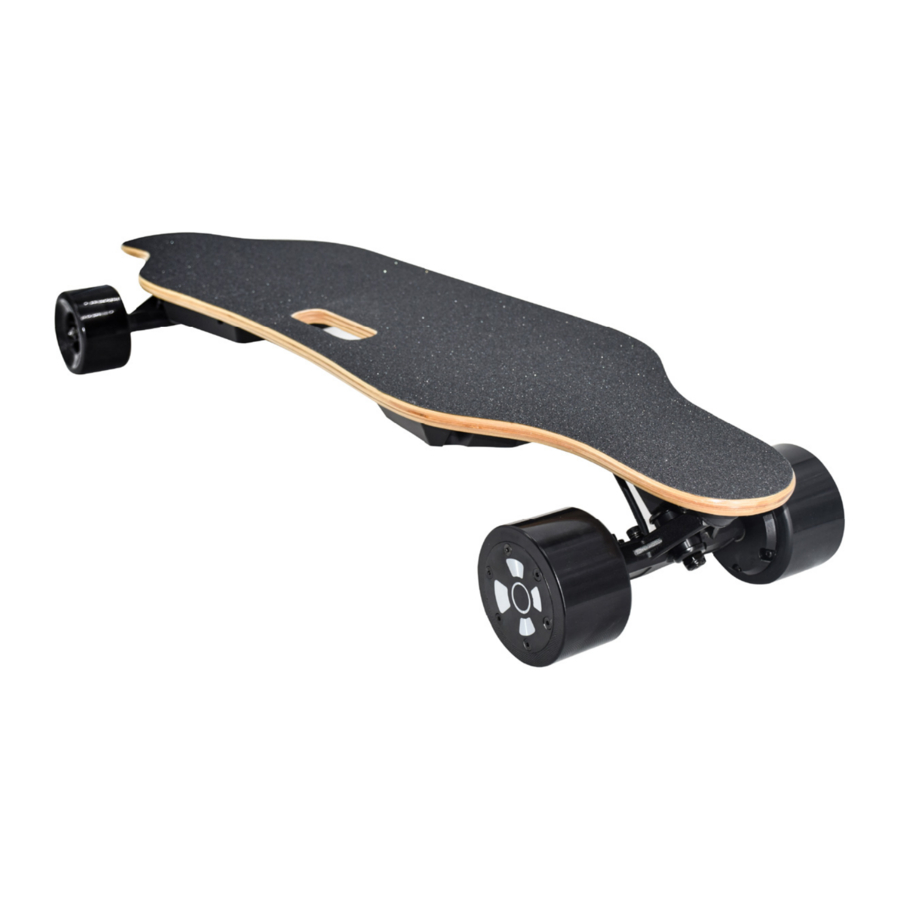

Retrospec Tidal Rev - Electric Longboard Manual

Riding Tips

Clothing
It is recommended to wear comfortable clothing that does not block, limit or restrict movements of the user. Wear shoes - comfortable, flat shoes to maintain flexibility and full motion range.

Practice
Practice your riding skills in an open space, on flat and even surface. Avoid places with pedestrians and obstacles before you feel you are comfortable with your riding skills. Make sure you've mastered getting on the board, accelerating, coming to a stop, and making turns before you try higher speeds.

Safe Riding

Be safe
Be sure to apply all appropriate safety measures when riding this skateboard.

Wear protective gear when riding
Wearing a helmet can mean the difference between life and death. Always wear a helmet! We strongly suggest knee pads, elbow pads, wrist guards, and other protective gear.

Body position
Relax your legs while riding and slightly bend your knees, as this can help maintain balance when encountering uneven ground. Keep your feet on the deck.

Ride wisely
Do not ride faster than you can handle. You can lose control of your skateboard at any speed. Never lie down on a skateboard in motion.

Inspect your riding terrain
Avoid riding on steep slopes, through potholes or bumps. The weight of the user and their belongings should not exceed the maximum load indicated in the instructions (220lbs/100kgs). Overloading may lead to injuries or damages.

• Slow down when on uneven ground!
• Pay attention when riding near cables and cords!
• Do not ride on surfaces made of loose fabric or covered in items that could get in/entangle in the wheels (e.g. thick carpet).

Ride during the day
Avoid riding at dusk and dawn or in other low-light conditions where you cannot see or be seen easily by vehicles.

Speed Perspective
Ensure the skateboard speed is safe for you and others. Keep a safe distance from other objects and people to avoid collisions. Keep in mind that when you are on the skateboard, your height has increased. Remember this while riding through narrow spaces, i.e. doors, portals, fence passes, etc.

Stay clear of moving vehicles
Some of the most common and severe skateboarding accidents involve collisions with moving vehicles. Do not ride where you are likely to encounter traffic. Never hitch a ride ("skitch") onto a moving vehicle.

Do not ride in bad weather
Do not ride this skateboard on rainy or snowy days. Do not ride on slippery ground (i.e. snow, ice, wet surfaces).

Never ride alone
This skateboard is designed for ages 14 and older. Parents should review these instructions and warnings carefully with their child before use and should exercise supervision to ensure their child is using the product safely as instructed.

Inspect/Adjust your board before riding
Always check your board before riding. Check for excessive play (looseness), and any broken, cracked, or worn parts. Serious defects should be fixed by a qualified repair shop/technician.

What is Speed Wobble?
Speed wobble is what happens when a skateboard begins to shimmy from side to side unexpectedly. Within seconds, this can lead to a board rocking so violently that the rider is thrown-off the board before having a chance to react.

To reduce the risk of Speed Wobble:

• Watch your speed - boards with wider hangers (wheels further apart), give riders greater control and stability.
• Keep trucks, wheels, nuts, and mounting screws properly tightened to improve stability at higher speeds.

Always wear a helmet
Your helmet should fit snugly with the chin strap always fastened, as it can come off upon impact if it is too loose. Your helmet should be level on your head - not tilted back. Wear a helmet designed for skateboarding (hard shell -ABS- with EPS foam interior).

What's in the Box

1. 1x E-skateboard
2. 1x Charger (charge board battery)
3. 1x Wireless remote controller
4. 1x USB cable (charge remote controller)
5. 1x T-shape tool
6. 1x User's manual

Product Specifications

Product Description

Remote Control

2. 100-75% Charging Level
3. 75-50% Charging Level
4. 50-25% Charging Level
5. 25-5% Charging Level

Power on/off the remote control

• Short press the "Power" button to power on the remote controller, (1) Power/ Signal Indicator Light is lit, power is on.
• Long press the "Power" button (3 seconds) to turn off the Remote Controller, (1) Unit is off when the Power/Signal Indicator Light is off.
• When the Remote Control loses its connection to the board it will automatically shut down within 30 seconds. As long as the Remote Control- Board connection is maintained, the Remote Control will not automatically shut down. When powering off the board, wait 30 seconds for the board and remote control to completely disconnect and shut down.

Switch direction of the unit

• The board must be stationary when changing the Forward/ Reverse setting.
• Short press the "Reverse" button to identify the direction of the board.
  • Flashing Green is Forward - When powering on the remote, Forward/Flashing Green is the default setting.
  • Flashing Red is Reverse.
• Long press (3 seconds) to switch between the forward and reverse directions.

Changing speeds of the unit

With the Remote Control powered on, Short press the Power button to switch between the four speeds of the board:

2. Sport-speed
3. High-speed
4. Medium-speed
5. Low speed is the bottom solid red light to the right of the skateboard icon

Speed changing mode will exit after 3 seconds - all 4 lights will be lit.

Switching of the brake force of the unit

Pull the "roller" back on the remote control, but do not turn it on. At the same time, short press the "Power" button to switch the four gears of the skateboard braking force:

2. Fourth gear the file flashes
3. Third gear flashing
4. Second gear flashing
5. First gear flashing

Charging the Remote Control

The remote control is charged with the Micro USB cable. When the fully charged Remote Control is connected, the indicator light and the four speed level lights (2,3,4,5) flash and move quickly. All four lights are on to indicate that the remote control is fully charged. During charging, the light is always on and the light is the charging indicator.

Low battery indicator

When the Remote Control battery is low, the power indicator will flash. When you see this, turn off the skateboard and the Remote Control. Charge the Remote Control. Do not use the board when the remote control's battery is low.

Battery

• Do not use the board when it is charging!
• Always check that the battery is fully charged before using.
• Charge the device only with the included/authorized power adapter.
• Ensure the charging port and the entire board is dry prior to charging!
• Do not continue riding when the battery reaches minimum - this will compromise battery life.
• Do not ride when the battery is low! Charge the battery when the battery indicator signals low level.
• Do not use the board if the battery gives off any odor, excessive heat, or if there's leakage.

Charging

1. Plug the charger into the wall socket (110- 240 V; 50/60 Hz) - the light on the charger is green.
2. Plug the other end of the charger into the board battery - the light on the charger turns red.
3. When the charger indicator light turns from red to green, charging is complete. Disconnect charger from device and electrical outlets. Do not overcharge the device, as it may affect battery life.

• Check the battery level before using. Do not ride when the battery is low.
• When the skateboard battery level is below 10%, the device will issue a sound. When this happens, STOP, step off the board, and TURN IT OFF.

Battery Indicators

The 4 LED indicator bars on the board and remote controller show the battery levels:

• Remote power indicator (shows when the remote is on)
• Skateboard battery level indicator-10% indicates when skateboard battery level is 10%
• Skateboard battery level indicator-60% indicates when skateboard battery level is 60%
• Skateboard battery level indicator-100% indicates when skateboard battery level is fully.

Cleaning

Never clean this e-board while charging! Clean the unit's exterior periodically with a soft, slightly damp cloth, then wipe dry. Never use chemical agents to clean!

Storage

Do not store the skateboard if its battery level is very low or discharged. Fully charge before storage. Charging the battery before storage prevents overdischarge caused by long-term non-use storage. Charge the device's battery every three months if the skateboard is left unused to maintain the longevity of the battery.

Risk of fire - Do not wrap up the skateboard, place it in a carry bag, or place it in the package right after charging. The battery and charger may get warmer during charging, which is a fire risk.

Safety Instructions

Like other activities, skateboarding has risks. Vehicle traffic, trick riding, and excessive speed can lead to collision, loss of control, and falls. Even experienced riders have been injured and killed. Take knowledge to the extreme and follow these important tips for safer riding:

Minimum Age
Tidal Rev is designed for riders 14 years of age and older. Children 14 and over, individuals with reduced physical, sensory or mental capabilities, and inexperienced riders must ride supervised by a guardian in a safe environment only if all safety precautions are understood and followed.

Health
Tidal Rev is not a toy. Individuals under 18 years old should not clean and service the skateboard unsupervised. Tidal Rev is not suitable for persons whose health might be at risk in the event of a fall (Children, Elderly, Pregnant Women, etc.).

Environment
Protect this skateboard from moisture, humidity, water and any other liquids. Avoid using/ storing it in extreme temperatures. Do not expose it to direct sunlight and other sources of heat. Before connecting the board to the power supply socket (wall socket), make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socket.

• Use only authorized accessories.
• Do not climb or descend steep hills.
• Do not turn on the skateboard in midair.
• Do not jump off nor on your skateboard.
• Do not use this skateboard near flammable products.
• Do not lift the skateboard off the ground when it is turned on.
• Do not use this skateboard when operation appears abnormal.
• Do not attempt to repair/disassemble this skateboard yourself.
• In case of damage, contact an authorized service point or the seller for repair.
• Disconnect the skateboard from the power supply before cleaning and service.
• Do not ride this skateboard off of curbs, ramps or attempt to operate in a skate park, empty pool etc. Performing such actions will lead to damage of the electrical components and battery underneath the board.
• This skateboard is designed for one person at a time only! It's prohibited for two persons to ride the skateboard at once. When riding this skateboard, you should comply with local laws and regulations including traffic laws.
• Do not ride after drinking, taking drugs/medications of any kind, or any other substances which may affect your cognitive or motor skills. Alcohol and drugs reduce your ability to control your skateboard and react to unexpected circumstances which greatly increase your chances of injury or death.

Weight Limit
Maximum rider weight is 220lbs / 100kgs. Do not overload the skateboard, as it may lead to damage and injuries.
