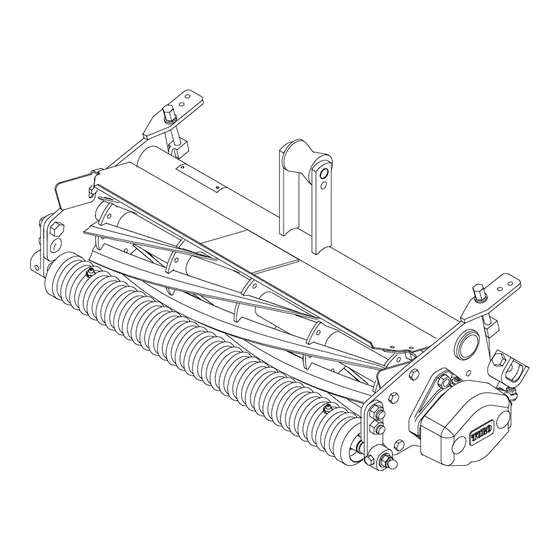

- Page 1 Form No. 3326-877 8 and 11 Blade 4-Bolt Reel Mowers Greensmaster 3250-D Model No. 04470—Serial No. 220000001 and Up Model No. 04471—Serial No. 220000001 and Up Operator’s Manual English (EN, GB)
- Page 2 Part No. 104-7720 additional information, contact an Authorized Service Lo Cut Bedknife Part No. 93-4264 Dealer or Toro Customer Service and have the model and High Cut Bedknife Part No. 94-6392 serial numbers of your product ready. Figure 1 illustrates...
- Page 3 Adjustments 4. After the adjustment is accomplished, check to see if the reel can pinch paper when inserted from the front and cut paper when inserted at a right angle (Fig. 3). It Note: Determine the left and right sides of the machine should be possible to cut paper with minimum contact from the normal operating position.
- Page 4 Position 2 Note: A more aggressive setting may be required to compensate for reel wear. (As the reel wears, the cutting Standard position; use for most conditions (factory setting). unit becomes less aggressive). HOC Range: 0.094 (3/32)–0.72 (23/32) in. (2.4–18.3 mm) Leveling the Front Roller to the Note: The top frame hole and top bracket hole will yield Position 2 (standard position).
- Page 5 Adjusting the Top Shield Height 1. Loosen bolts and nuts securing the shield to each side plate. 2. Adjust the shield to the desired position and secure the fasteners. 3. Repeat this procedure on the remaining cutting units and adjust the top bar. Note: The shield can be raised for extremely wet conditions.
- Page 6 The grease fitting locations and quantities are: Note: Additional instructions and procedures on Reel bearings (2) (Fig. 6) Backlapping are available in the Toro Sharpening Reel & Front and rear rollers (2 ea.) (Fig. 6) Rotary Mowers Manual, Form No. 80-300PT.
- Page 8 If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
