Summary of Contents for Ranger design 6049

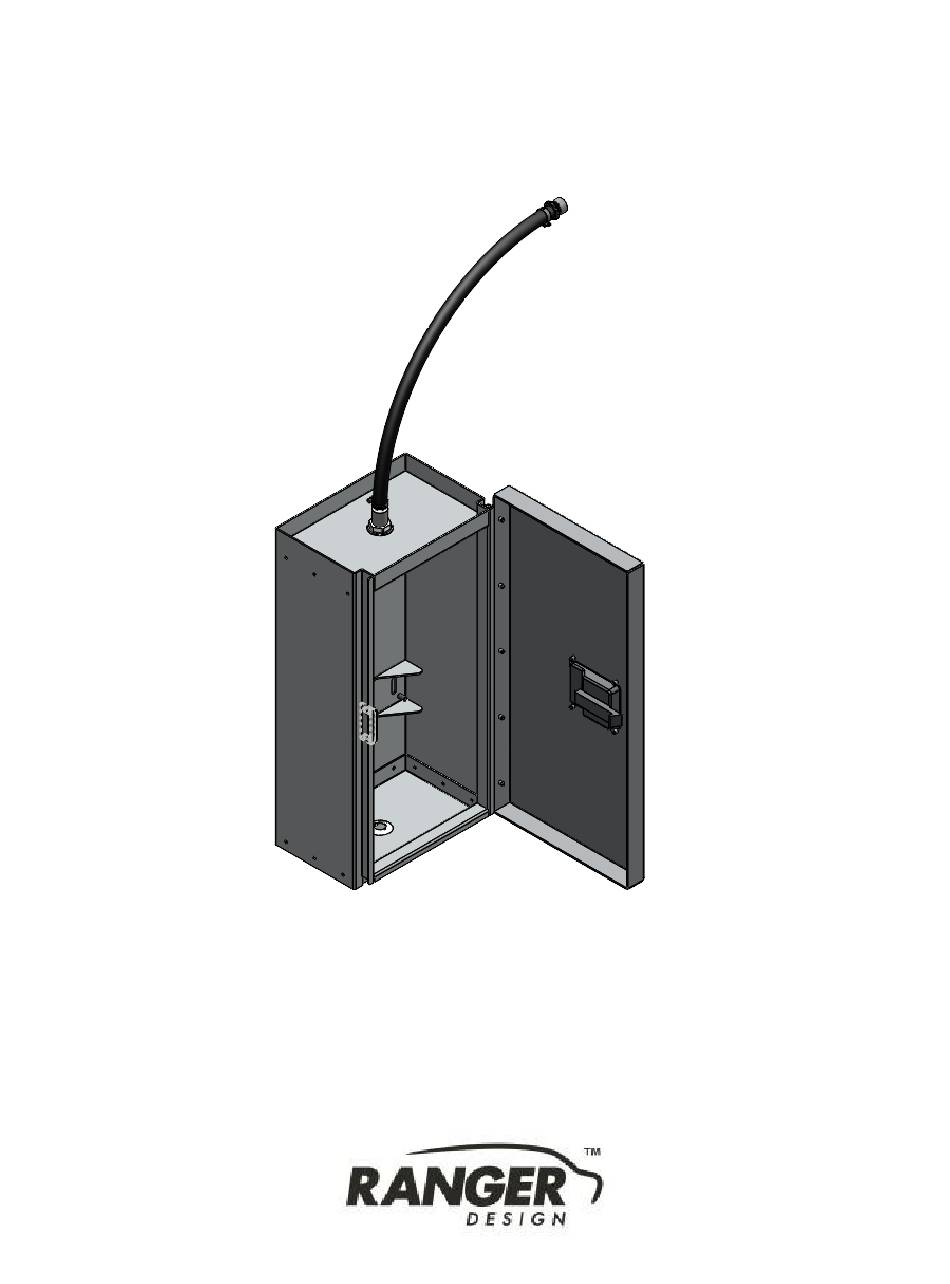

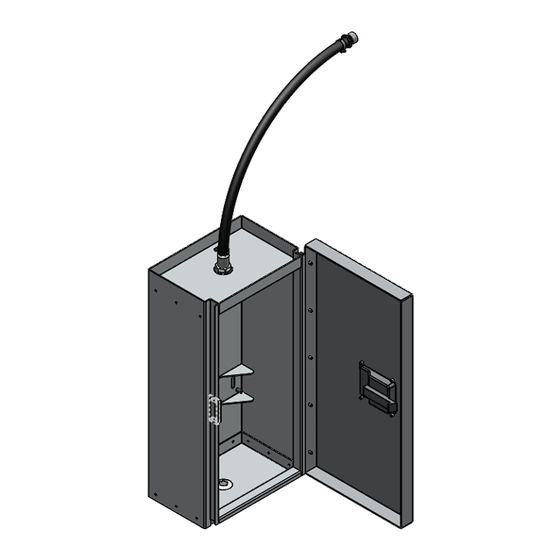

- Page 1 INSTALLATION GUIDE 6049 Locking cabinet, vent kit...
-
Page 2: Safety Instructions
PREPARATION Tools Needed Adjustable wrench 10” & above Screw Driver 11/16 bit 7/8 bit Drill For technical support, contact us at 1-800-565-5321 6049 Installation Guide REV.1... -
Page 3: Bill Of Materials
BILL OF MATERIALS 53-653 53-650 53-654 53-654 53-651 53-651 Item No: Description Qty. 53-650 Vent, exterior ” 53-653 Rubber hose 53-654 Hose clamp 53-651 Vent, upper cabinet For technical support, contact us at 1-800-565-5321 6049 Installation Guide REV.1... - Page 4 ASSEMBLY STEP 1 Tools: • ” drill • Adjustable wrench 2x 53-651 7/8” Van Floor Van Floor Exterior STEP 2 Tools: • Flat screwdriver 53-653 53-654 For technical support, contact us at 1-800-565-5321 6049 Installation Guide REV.1...
- Page 5 Van Interior Van Exterior “You have successfully installed your vent kit, thank you for doing business with us.” For any feedback or suggestions, you may have, please contact: cs@rangerdesign.com For technical support, contact us at 1-800-565-5321 6049 Installation Guide REV.1...
