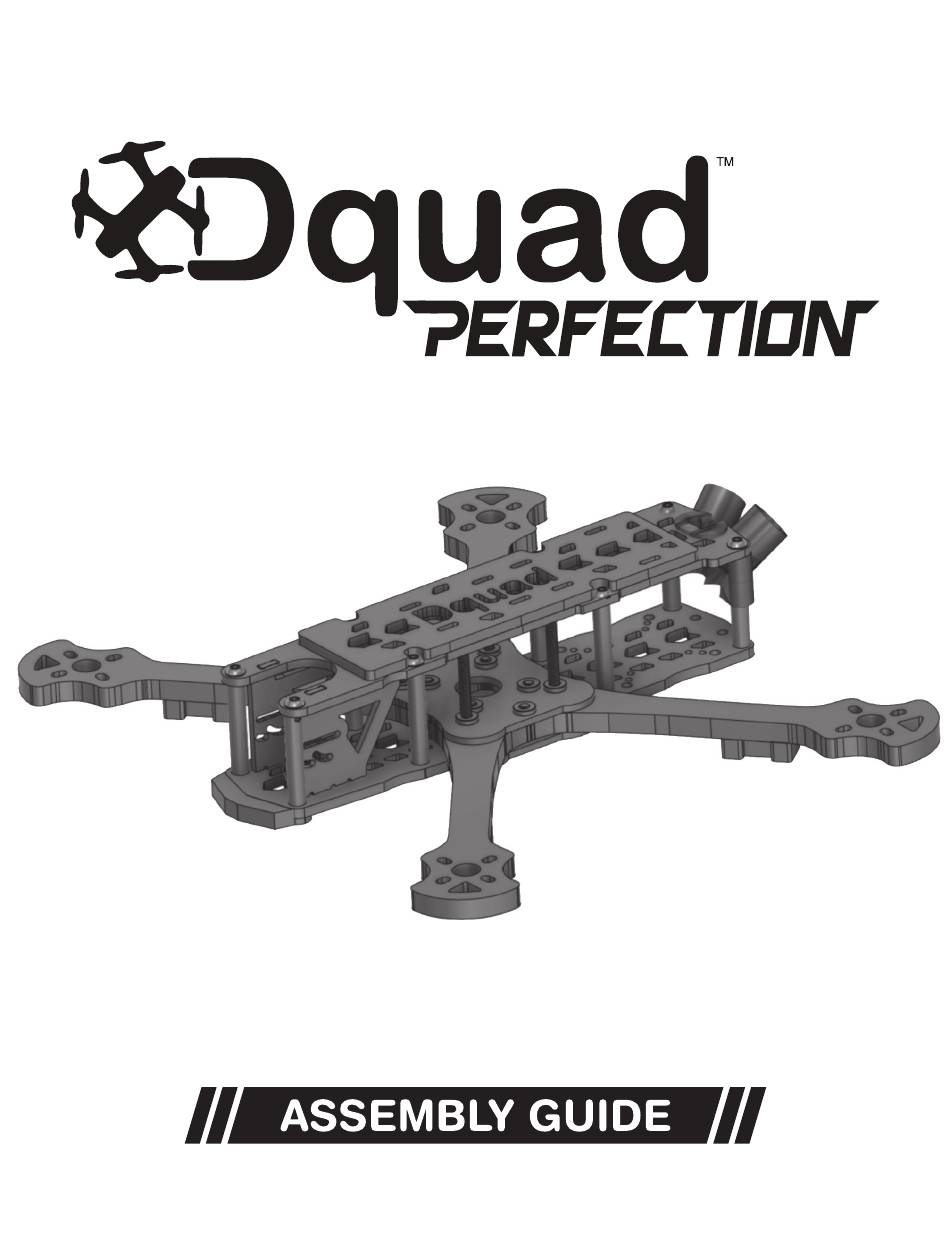

Summary of Contents for Dquad Perfection
-
Page 2: Included Parts
PERFECTION 5 INCH ASSEMBLY INSTRUCTIONS INCLUDED PARTS: (1) Camera plate - 2mm carbon fiber - DJI 03 (16) M3x6mm button head bolts (2) Camera plate - 2mm carbon fiber - Walksnail and all (8) M3x28x5mm aluminum standoffs - black micro cameras... - Page 3 STEP_02 MOUNT THE ARMS TO THE BOTTOM PLATE Bring the four arms together and seat them into the milled arm channel on the bottom plate. Leave the squash plate slightly loose so the arms can be easily positioned into the arm channel. Evenly tighten the 4 bolts until the arms are fully seated into the arm channel.
- Page 4 STEP_03 INSTALL STANDOFFS AND CAMERA PLATES Use eight M3x6mm button head bolts. Apply a drop of threadlocker to each and bolt the eight aluminum standoffs to the bottom plate. Install the camera plates in the camera slots located on the bottom plate. STEP_04 INSTALL THE TOP PLATE Use eight M3x6mm button head bolts.
-
Page 5: Install Accessories
Remove the two rear standoffs and install the VTX antenna mount. You’re finished. Enjoy! -Check out www.dquad.net for over 100 downloadable free 3d files. -To restore the Lite Grip lipo pad surface to new condition, wipe off with a damp cloth.
