Summary of Contents for IKAROS MOB MKCI

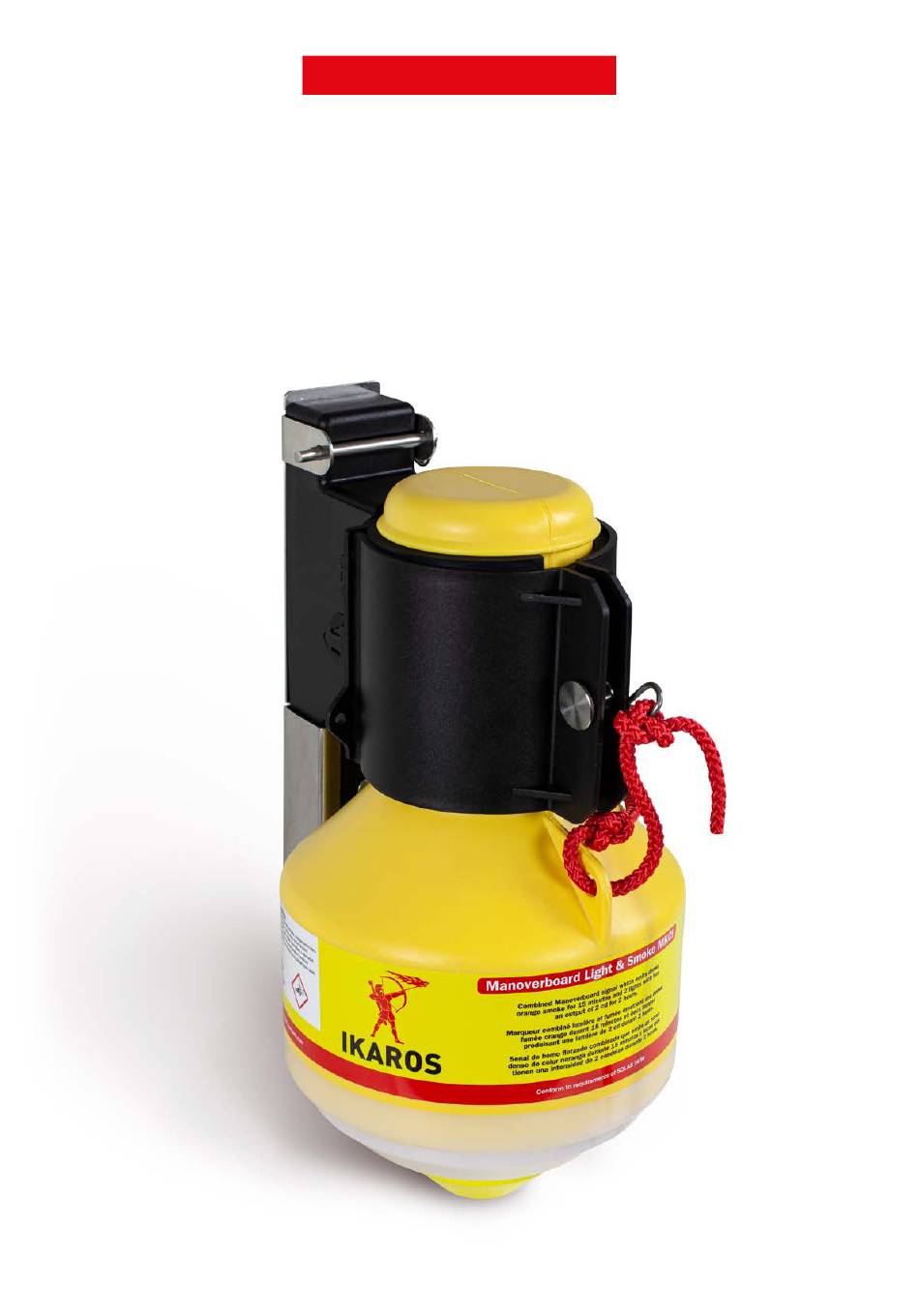

- Page 1 MOUNTING INSTRUCTIONS MOB MKCI Manoverboard Light & Smoke...
- Page 2 General information and fitting instructions According to SOLAS two light and According to SOLAS the signal is to be smoke signals are required, vertically used with a lifebuoy of minimum 4 kg. mounted facing seawards. One signal A connection-line of minimum 3.60 has to be installed on port and one on meters is to be attached to the life- starboard of ship’s bridge.
- Page 3 Mounting instructions 1. Remove the safety ring and the 2. Remove the signal with the plastic 3. Mount the wall bracket on safety pin from the signal. bracket from the wall bracket. the vessel using 4 bolts. 4. Insert the signal with the plastic 5.
- Page 4 Specification Height: 325 mm Diameter: 175 mm (bottom 85 mm) Weight: 2.750 kg NEM, max: 1.0 kg Light burning time: at least 2 h Colour of smoke: orange Smoke duration: 15 min Light output: 2 cd Hansson PyroTech AB P. O. Box 54 S-711 22 Lindesberg, Sweden Telephone: +46 (0) 581 87 250 Fax: +46 (0) 581 872 00...
