VELTOP Cosy 3 Mounting Instructions

Download this manual

Veltop Cosy 3

Instructions of mounting

Thank you for choosing the Veltop Cosy 3 model.

This product was designed, manufactured and assembled by the company CYCLO-SYSTEM in the French department of Haute-

Savoie (74).

To ensure the correct use, function and long life of your new accessory, please follow the instructions for use and assembly carefully.

We would like to remind you that the purpose of the cover is to protect the user from rain, cold and sun.

This version can be fitted to all wheelchairs and power wheelchairs equipped with 2 vertical tubes or a horizontal bar behind the seat.

Warning

Failure to comply with these instructions for use may impair the proper functioning of the guard and lead to the failure of parts.

This would jeopardise the effectiveness of the system and could affect your safety when travelling.

Choice of 2 types of rear attachment

Attachment to the 2 vertical tubes

Attachment to the horizontal bar

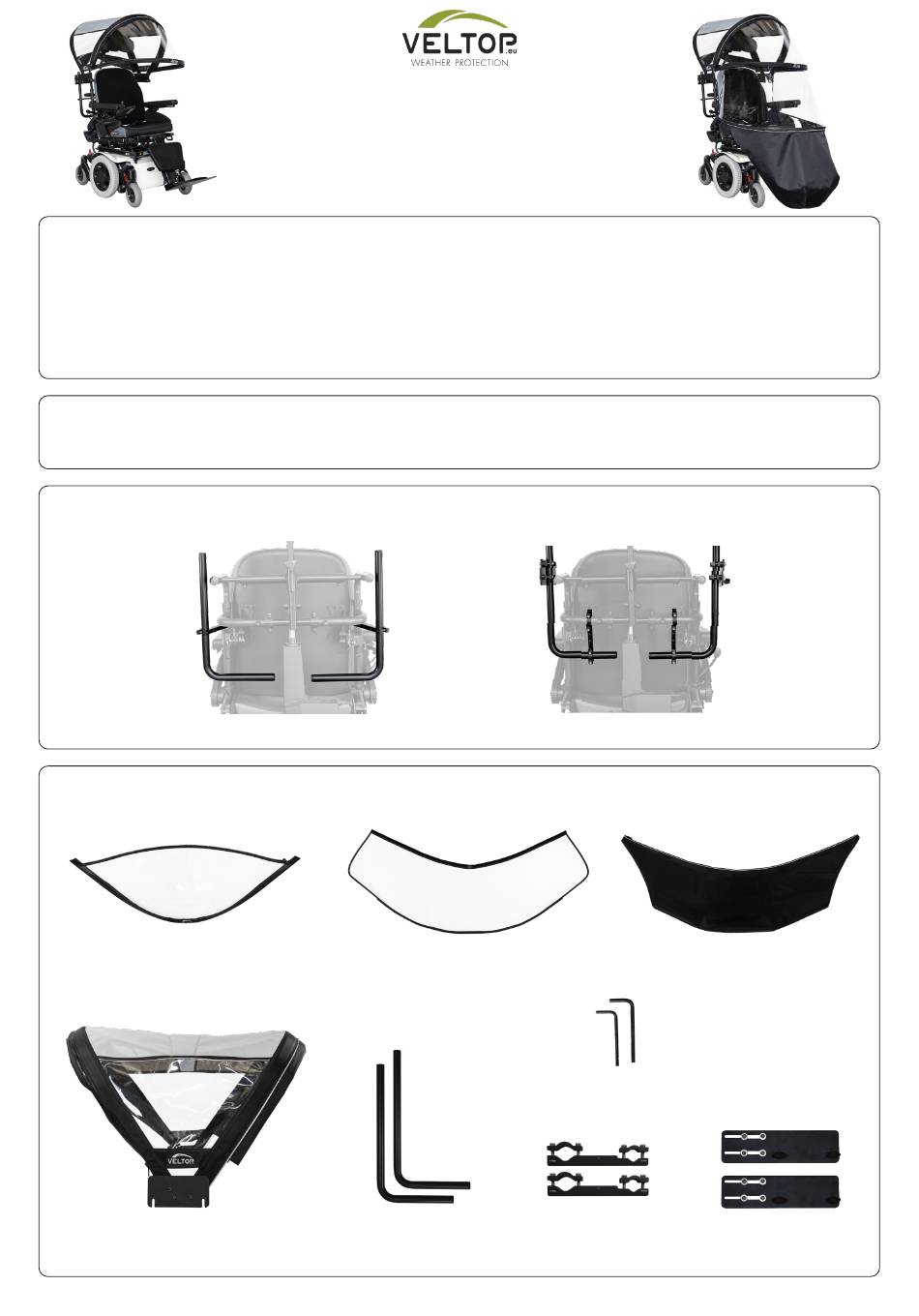

Contents of the package

Transparent front part

Upper part of the leg

Lower part of the leg

protection

2 Alan key

1,26inch

0,86inch

Canopy

2 L-shaped tubes

2 Brackets

2 Plates

Need help?

Do you have a question about the Cosy 3 and is the answer not in the manual?

Page 1 Veltop Cosy 3 Instructions of mounting Thank you for choosing the Veltop Cosy 3 model. This product was designed, manufactured and assembled by the company CYCLO-SYSTEM in the French department of Haute- Savoie (74). To ensure the correct use, function and long life of your new accessory, please follow the instructions for use and assembly carefully.
Page 2 Option 1 - Mounting on the 2 vertical tubes Place the brackets (side 32 mm) on the two vertical tubes behind the seat and tighten them firmly. Option 2 - Mounting on the horizontal bar Place and fasten the brackets (side 32 mm) on the horizontal bar.
Page 3 Fitting the canopy Slide the two plates of the canopy along the large plate and then tighten the two clamping screws. Fitting the transparent front part The transparent front part is attached using the zip fastener. Fitting the upper part of the leg protection Centre and attach the upper part of the leg protecting using the magnet and attach it to the transparent part using the Velcro fastener.
Page 4 The width between the two plates should not be greater than the width of the wheelchair. CYCLO-SYSTEM 3621 route d’Albertville 74320 SEVRIER FRANCE T : 0033 (0)4 50 77 56 17 F : 0033 (0)4 50 63 45 36 info@veltop.com www.veltop.eu/en/ Ref. VELCOSY3...
