Summary of Contents for Datamate Harwin Z80-292

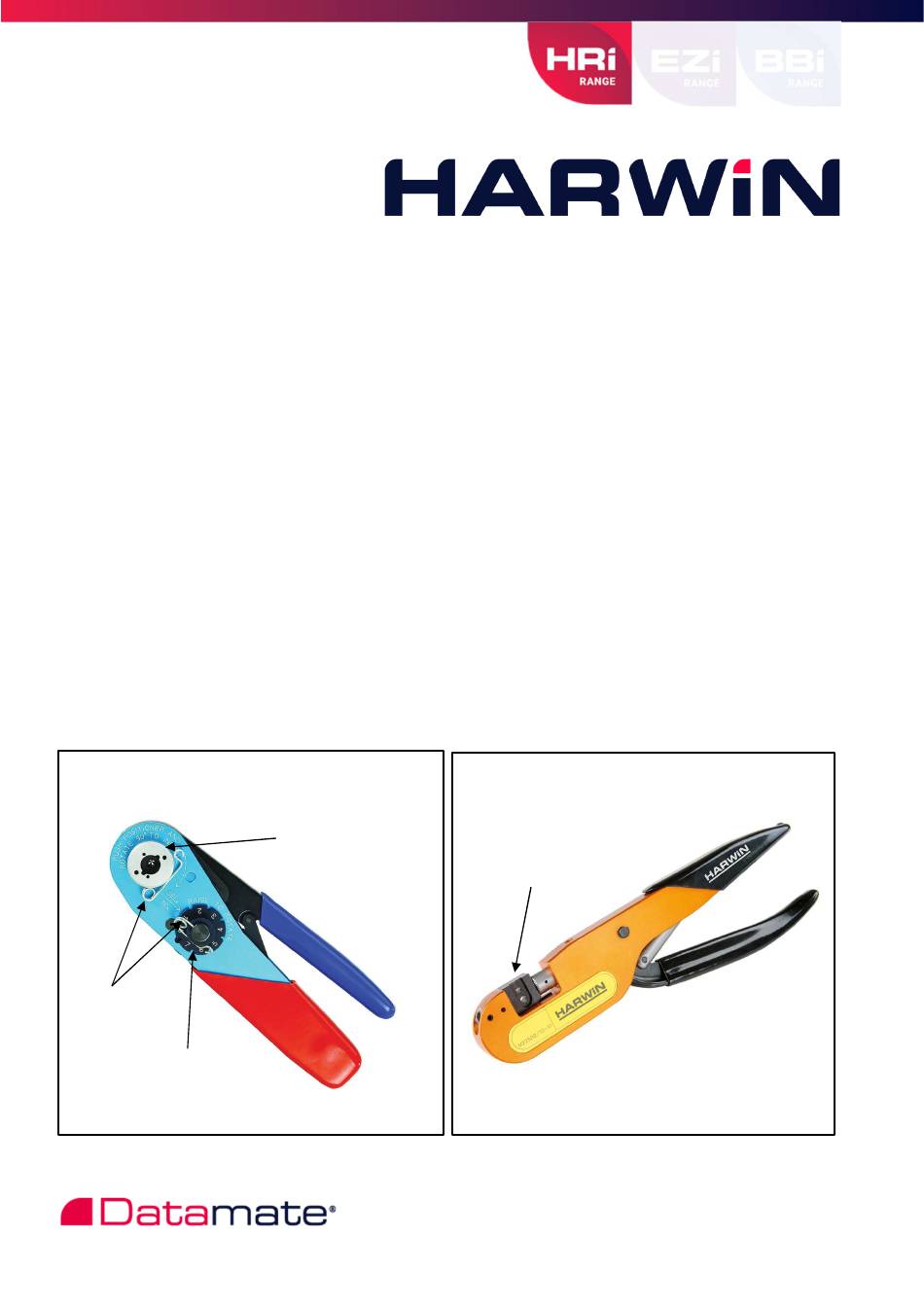

- Page 1 Instruction Sheet IS-34 Hand Crimp Tools Z80-292 & Z80-293 Z80-292 (closed position) Z80-293 (closed position) Positioner location guide Die set Safety clip Crimp Setting selector knob // HARWIN.COM...
- Page 2 IS-34 Instruction Sheet for Hand Crimp Tools Z80-292 & Z80-293 CRIMP CONTACT INFORMATION These Hand Crimp Tools have been designed for use with the following Datamate Mix-Tek Coax contacts: M80-305 & 307 ............. Straight female coax crimp contact (Used in Mix-Tek female crimp connectors) ...
-
Page 3: Tool Preparation
IS-34 Instruction Sheet for Hand Crimp Tools Z80-292 & Z80-293 TOOL PREPARATION Z80-292 Check that the tool is in the open position. Remove the safety clip from the positioner guide (do not discard). Insert the positioner Z80-291 into the positioner guide and turn it 90° in the direction shown on the tool, until the bayonet pins lock. -
Page 4: Crimping Procedure
IS-34 Instruction Sheet for Hand Crimp Tools Z80-292 & Z80-293 CRIMPING PROCEDURE Z80-292 Ensure that the wire to be crimped is within the specified range of sizes for the contact and the crimp tool (check the Contact Reference Guide table). Failure to use the specified wire size will result in poor quality crimps and possible tool damage. - Page 5 IS-34 Instruction Sheet for Hand Crimp Tools Z80-292 & Z80-293 CARE OF TOOL There is virtually no maintenance required for the Z80-292 & Z80-293. However, it is good practice to keep the indenter tips free of residual colour band deposits and other debris. A small wire brush may be used for this purpose.
