Summary of Contents for Eleiko 3085832

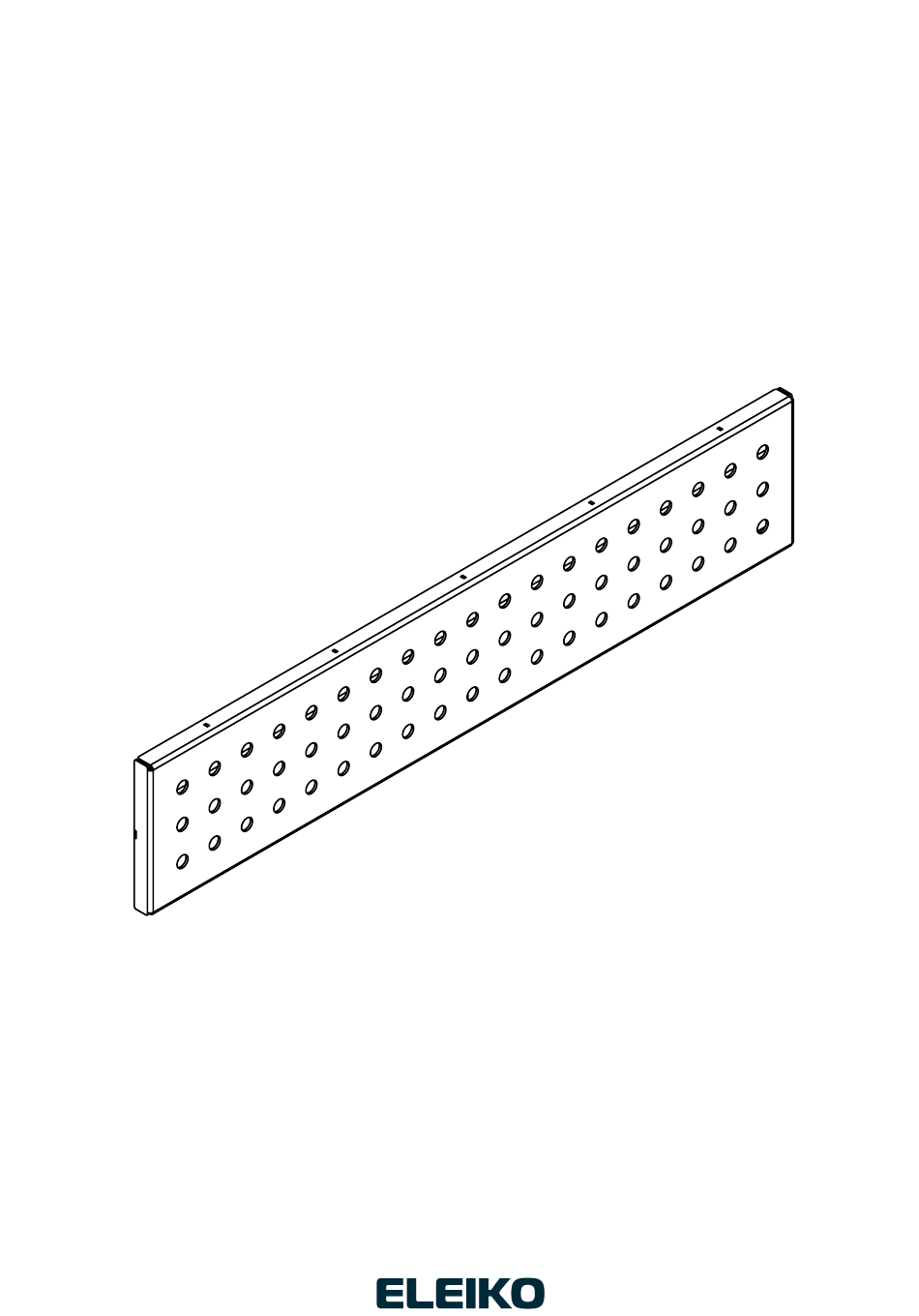

- Page 1 ELEIKO WALL STORAGE BOARD Art.no. 3085832...
-
Page 3: Table Of Contents
CONTENTS Read before installation and use Safety instructions List of components Assembly instructions Tools needed Horizontal storage Vertical storage User guide Purpose General instructions for use Product specifications Care and maintenance Preventive maintenance and inspections Spare parts and service Warranty... -
Page 4: Read Before Installation And Use
Install and use this equipment in a place where access and supervision are specifically controlled by the owner. Be sure to install the equipment on a stable base and level the equipment properly. Eleiko recommends that all equipment is installed by a licensed contractor or an Eleiko installer. -
Page 5: List Of Components
LIST OF COMPONENTS Art.no Art.no Art.no 3085832a1 2001857-185 2001857-985 NOTE! Screws and plugs for the wall are not included. Assess the suitability of the wall to ensure that it will withstand the forces generated. Use screws and plugs suitable for your walls and the intended load. If you are uncertain, seek professional advice. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before assembly, make sure you have enough clearance on all sides of the equipment, Take in account the accessibility to remove and replace accessories. 1000 TOOLS NEEDED You need the following tools to assemble the equipment. - 5 -... -
Page 7: Horizontal Storage
HORIZONTAL 2001857-985 Screw to wall - 6 -... - Page 8 HORIZONTAL 3085832a1 Hang board onto bracket. Push down. - 7 -...
- Page 9 HORIZONTAL Secure board to wall! - 8 -...
-
Page 10: Vertical Storage
VERTICAL 2001857-185 Screw to wall - 9 -... - Page 11 VERTICAL 3085832a1 Hang board onto bracket. Push down. - 10 -...
- Page 12 VERTICAL Secure board to wall! - 11 -...
-
Page 13: User Guide
USER GUIDE PURPOSE Use the storage board to attach different storage solutions for training equipment, such as ropes, rubber bands, dumbbells, balls etc. GENERAL INSTRUCTIONS FOR USE Secure storage attachments of your choise. Only use attachments suitable for the storage board. Store your equipment. -
Page 14: Care And Maintenance
WARRANTY All products manufactured by ELEIKO are warranted to the original purchaser to be free from defects in workmanship and / or materials under normal use or service as follows: · 10 years on structural frame welds (NOT on moving parts). - Page 16 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
